- Page 1 VERSION WEBSITE DATE OF PUBLICATION Version no: JT2-07 www.hamaton-tpms.com 21/07/17 Reference: UM-365HaD-U www.ateq-tpms.com...
-
Page 2: Table Of Contents
3. Tool Update ................................ 32 4. Limited Hardware Warranty ..........................34 5. Safety Battery And Charge Information ......................35 6. FCC Statements ..............................36 7. CE Statements ..............................37 8. Recycling ................................37 Index User Guide Hamaton H46 Page 2/38... -
Page 3: Hamaton H46 Tpms Tool
UM-365HaD-U H46 TPMS TOOL User Guide USER GUIDE: H46 TPMS TOOL GUIDE 1. SPECIFICATIONS Battery Type: Rechargeable Lithium-Polymer. Battery Life: Approximately 300 activations per full charge. Dimensions (Max. L,W,D): 8.6” x 5” x 1.5” (22.0 cm x 13.0 cm x 3.7 cm) Case Material: High Impact ABS. -
Page 4: Important Safety Instructions
Individuals that have pacemakers should never use this product. Read the Warranty, Safety and Recycling information at the end of this user guide. Powered by User Guide Hamaton H46 Page 4/38... -
Page 5: Caution
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the tool away from heat generating sources. Do not operate the tool with the battery cover removed. User Guide Hamaton H46 Page 5/38... -
Page 6: H46 Overview

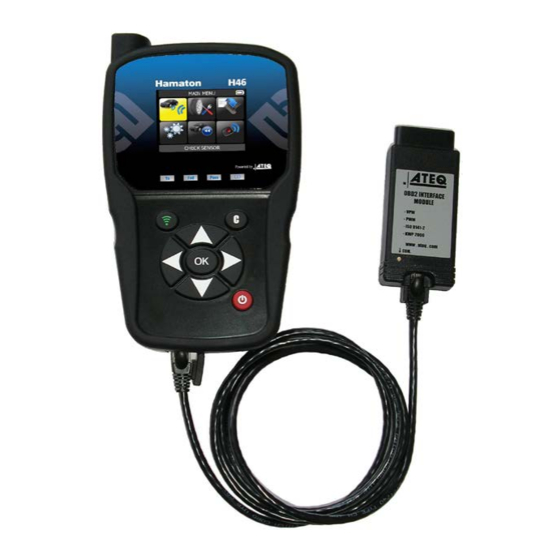

4. H46 OVERVIEW Antenna Display screen Keyboard 4.1. Lights Result light Result light Trigger light Battery status "Fail" "Pass" 4.2. Connectors RJ45 connector for OBD module USB connector for connection battery charge and firmware update. User Guide Hamaton H46 Page 6/38... -
Page 7: Function Keys
H46 TPMS TOOL User Guide 5. FUNCTION KEYS Power ON/OFF switch Test or trigger sensor. Next, continue or confirm. Cancel, previous step. Navigate to select "up”. Navigate to select “down”. Navigate to select “left”. Navigate to select “right”. User Guide Hamaton H46 Page 7/38... -
Page 8: Power On
First displays the logo as Fig. 1. Fig. 1 The software version and the work zone as Fig. 2. Fig. 2 The MAIN MENU will then be displayed as Fig. 3. Fig. 3 User Guide Hamaton H46 Page 8/38... -
Page 9: Operating Instructions
TPM system has been retrained. For vehicles that do not require retraining, we recommend you trigger each wheel sensor, one final time, to make sure they are working correctly prior to releasing the vehicle to the customer. User Guide Hamaton H46 Page 9/38... -
Page 10: H46 Usage
8. CHECK SENSOR = continue = previous 8.1. Select Car Manufacturer = continue = previous 8.2. Select Car Model = continue = previous User Guide Hamaton H46 Page 10/38... - Page 11 H46 TPMS TOOL User Guide 8.3. Select Year = continue = previous 8.4. Select Wheel Number This option does not appear for all vehicles. = continue = previous 8.5. Test Sensors (Trigger) = continue = previous Select tire. User Guide Hamaton H46 Page 11/38...
- Page 12 Trigger all wheels. = continue = previous and erase results The tool does not detect a sensor Press to test again. Or press to move on to the next step. User Guide Hamaton H46 Page 12/38...
-
Page 13: Service Tpms
This menu to reprogram or relearn the ECU through the OBDII port. = continue Select OBDII = previous = continue = previous Select wheel number. Proceed with "Sensor check" to trigger all the sensors. User Guide Hamaton H46 Page 13/38... - Page 14 Note: the following screen message is displayed when all the sensors are triggered and the OBDII module is connected to the TPMS TOOL. Wait a few seconds during the data upload. Note: this feature is not supported on all vehicles. User Guide Hamaton H46 Page 14/38...
- Page 15 UM-365HaD-U H46 TPMS TOOL User Guide The data has been successfully transferred to the ECU. The OBDII module can now = abort be unplugged from the ECU. User Guide Hamaton H46 Page 15/38...
- Page 16 UM-365HaD-U H46 TPMS TOOL User Guide 9.2. Part # Lookup This spare parts database indicates the sensors available for each car. = continue = previous = continue = abort User Guide Hamaton H46 Page 16/38...
-
Page 17: Program Blank Sensor
Select "PROGRAM SENSOR" = previous menu. 10.1. First Option: Sensor Selection = continue = previous = continue = previous Select the sensor brand. Select car manufacturer. Select car model. Select year. User Guide Hamaton H46 Page 17/38... - Page 18 Select car manufacturer. Select car model. Select year. = continue = previous Select the sensor brand. The device displays the blank = continue sensor reference from the selected brand. = previous User Guide Hamaton H46 Page 18/38...
- Page 19 H46 TPMS TOOL User Guide 10.3. "Copy Original Sensor" Menu = continue = previous to trigger the original sensor Wait a few seconds. = continue ID of the old sensor is displayed. = previous User Guide Hamaton H46 Page 19/38...
- Page 20 Hold the new programmable sensor near the device to upload data antenna. to the blank sensor. Wait a few seconds. Wait a few seconds. The data has now been successfully transferred to the sensor. = continue User Guide Hamaton H46 Page 20/38...
- Page 21 Hold the new programmable sensor near the device to upload data antenna. to the blank sensor. Wait a few seconds. Wait a few seconds. The data has now been successfully transferred to the sensor. = continue User Guide Hamaton H46 Page 21/38...
-
Page 22: Settings
BUZZER: turn buzzer ON or OFF (YES or NO). AUTO OFF: time the device automatically powers off after not being operated. LANGUAGE: to select the language of the device. ABOUT: to display the version and information about the device. User Guide Hamaton H46 Page 22/38... - Page 23 The tool will load the new database for the selected zone. 1.2. Change Units Settings = continue Scroll up and down to select = previous function or settings. = continue Scroll up and down to select = previous the units. User Guide Hamaton H46 Page 23/38...
- Page 24 1.4. Change Buzzer On Settings When buzzer on is set to YES, a beep sounds when the sensor ID is detected. = continue Scroll up and down to select = previous function or settings. User Guide Hamaton H46 Page 24/38...
- Page 25 Scroll up and down to select = previous function or settings. The selection turns red. = continue = previous Scroll up and down to set the time. Change from 1 to 60 min or DISABLED. User Guide Hamaton H46 Page 25/38...
- Page 26 = continue Scroll up and down to select = previous the language. 1.7. About Menu This menu displays the current version and information about the device. = continue = previous Select the "ABOUT" menu. User Guide Hamaton H46 Page 26/38...
- Page 27 UM-365HaD-U H46 TPMS TOOL User Guide = previous User Guide Hamaton H46 Page 27/38...
-
Page 28: Recent Sensor Data
The data remains in the memory even after the device has been turned off. = continue = previous Select "SETTINGS" menu. = continue Scroll up and down to select = previous function or settings. User Guide Hamaton H46 Page 28/38... -
Page 29: Rke Test
This is to test the strength of the keyfob RF signal. = continue = previous Select "RKE TEST" menu. 1.1. Select Car Manufacturer = continue = previous 1.2. Select Car Model = continue = previous User Guide Hamaton H46 Page 29/38... - Page 30 The device waits for RF signal. 1.3. Test Results PASS: High signal strength, green range. To start a new test. FAIL: Low signal strength, indicates low battery, less than 25%, To start a new replace battery test. (recommended). User Guide Hamaton H46 Page 30/38...
-
Page 31: Miscellaneous
If the battery is defective, the tool must be returned to the factory for battery replacement. Opening the tool or tampering with the seal placed on the tool, if broken, will void the warranty. User Guide Hamaton H46 Page 31/38... -
Page 32: Troubleshooting
When new vehicles and sensors become available, it is necessary to upgrade your tool. Please follow the steps below: IMPORTANT: Temporarily turn off all anti-virus and spam blocking software on your computer. This is necessary to ensure a successful upgrade. USB connector for Internet update. Fig. 6 User Guide Hamaton H46 Page 32/38... - Page 33 Turn off the screen saver function on your PC and do not disconnect the TPMS TOOL from the PC or turn off your computer during the update process. Doing so could result in serious damage to the tool. User Guide Hamaton H46 Page 33/38...
-
Page 34: Limited Hardware Warranty
Hamaton’s discretion, to repair or replace the or exclusion may not apply to you. hardware. Hamaton may, at its discretion, use new Duration of Implied Warranties or refurbished parts in good working condition to repair or replace any hardware product. -
Page 35: Safety Battery And Charge Information
Do not use it as a power source. NOT use water to extinguish the fire. Take some Unplug the charger before attempting to service sand or use a fire extinguisher as described or clean it. above. User Guide Hamaton H46 Page 35/38... -
Page 36: Fcc Statements
Rules. Operation is subject to the following two and responsibility. conditions: (1) This device may not cause harmful The Hamaton Company is not able to monitor the interference, and (2) this device must accept any proper use of the battery with each customer interference received, including interference that (charge, discharge, storage etc.). -
Page 37: Ce Statements
(SRD); Radio equipment in the frequency range 9 CONFORMITY kHz to 25 MHz and inductive loop systems in the frequency range 9 kHz to 30 MHz; Part 2: The manufacturer of the TPMS TOOL H46 Harmonized covering essential declares that this device complies with the requirements of article 3.2 of the R&TTE... -
Page 38: Index
WebVT PC suite ..........33 Language ............26 Light functions ........... 6 Zone ..............23 Main Menu ............8 Operating instructions ........9 Overview ............6,9 Power supply ........... 35 Product content ..........3 User manual Hamaton H46 Page 38/38...
