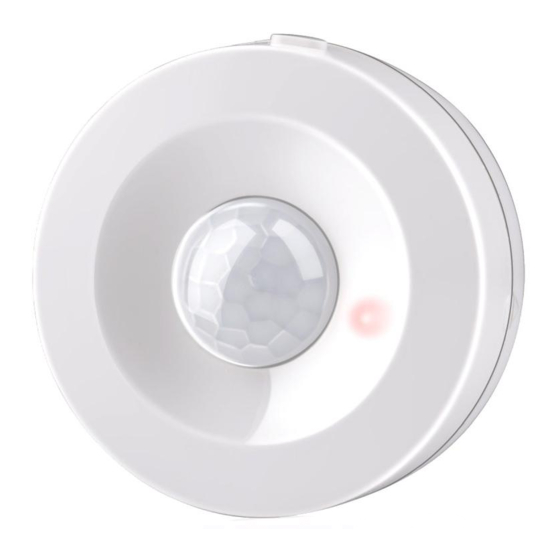

Alpina SMART ZIGBEE Motion Sensor Quick Start Up Guide

Table of Contents

Contents

1 Function
2 Using the device
3 Creating an automated action
4 Removing the product from the app
5 Specifications
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

Function

Indicator light
Reset button
Battery insulation tab

Using the device

Make sure that the Alpina Smart Zigbee gateway has already been added to the "Alpina Smart" app.
Remove the battery insulation tab.
Open the "Alpina Smart" app. Select the Zigbee gateway and click "Add subdevice".
Press and hold the reset button (about 5 seconds) until the indicator light flashes.
Enter de device name.
The sensor is ready for use and can be placed on the desired location. If necessary stick the adhesive tape on the sensor and place onto a clean and flat surface.

Creating an automated action

Tap "Smart scenes" at the bottom of the home screen.
Tap Automation to open the automation interface.
Tap + in the top right corner.
Here you can fill in different options to create an automation.
Tap Save.
The new automation appears in the automation interface.

Removing the product from the app

Open the sensor interface.
Tap the pencil icon in the top right corner.
Tap Remove Device.

Specifications

Device type	Smart Zigbee motion sensor (PIR)
Motion detection angle	120°
Motion detection range	Up to 5m
IP rating	IP20
Battery type	1x CR2450
Working voltage	3V
Input current	10mA
Dimensions	46x30mm
Compatibility	Alpina Smart Zigbee Gateway
Frequency range	2405-2480MHz
Max RF output power	7.57dBm
Antenna gain	0dBi

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The Waste of Electrical and Electronic Equipment (WEEE) Directive has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.
