Retekess TT123 - 2.4G Wireless Microphone Manual

Features

1. The product requires a powered output device (speaker, amplifier, mixer) for use. (Please be sure that the receiving unit is connected to the output device via a microphone jack or auxiliary jack)
2. The 2.4G wireless microphone using the ID code of encrypted digital transmission technology, modulation/demodulation process using the full digital. Perfect exterior design, good acoustic sound transmission, with a clear voice, strong anti-interference; completely solve the traditional wireless microphone channeling frequency interference.
3. Automatic match, Wireless Headset Microphone for 40 meters transmitting range.

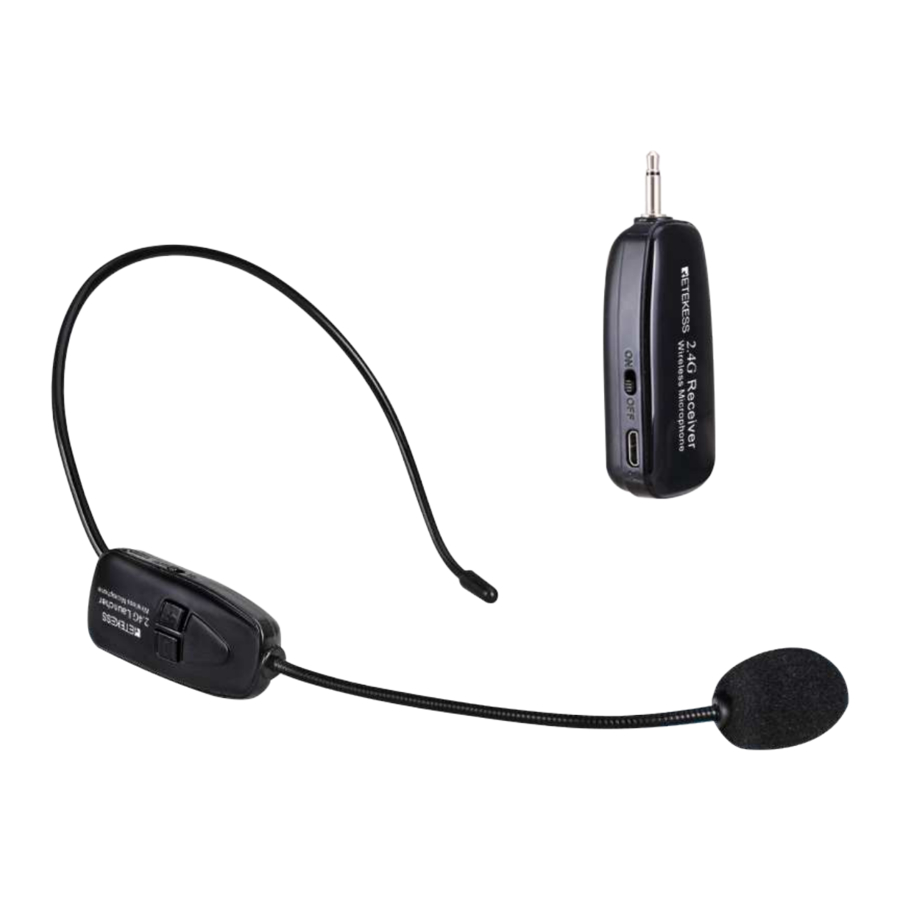

Product overview

Instruction Manual

1. Turn on the transmitter, a blue LED will start blinking and then turn onthe receiver. The pairing process take about 2 seconds to complete. If the pairing is complete, the blue LED on both receiver and transmitter will always stay on. Next plug in the receiver into the amplifier or any audio devices.
2. When using it, if the LED light start blinking rapidly it means that the devices is running out of battery and remember to charge it. In charging mode, the LED will stay on red color. If charging is complete the red LED light will turn off.
   Note: When the device is turn on, It will auto detect and connect automatically.

How to dissemble

Step 2: Use 2 thumbs to press down the Headset holder at the same time. When first time disassemble need more force to remove it.

Step 3: After remove it, the headphone will separate out as shown in the picture.

How to Assemble

When want to assemble, there will be a joint and align it by using 2 thumb to push it up.

How To Wear Wireless Microphone

If the volume is low, take off the cotton on the wireless microphone and check the hole on it. The hole need to face to the mouth and the distance about 1.5cm
