Retekess T116A User Manual

Queue Wireless Calling System
User Manual
T116A
Product introduction
Thanks for using our company's wireless calling system, it adopts
RF wireless technology . The system consists of 1 transmitting host
and 10 portable receivers, the receiver supports 998-channel exten-
sions, the transmitting host has 10 battery charging slots. Each rec-
eiver is rechargeable and labeled with a number, in standby status,
it is plugged into the charging slots, while the guest places an order,
he(she) will be dispatched one receiver with a number, when the or-
der is ready, the waiter will press the keypad to call the number, the
guest will get it through the buzzer/vibration/LED indications.
The queue system greatly improves the work efficiency and avoid
the guest waiting in a long queue. It is widely used in fast food rest-
aurant, church, dessert shop, auto 4S shop, food truck or other
queue occasions.

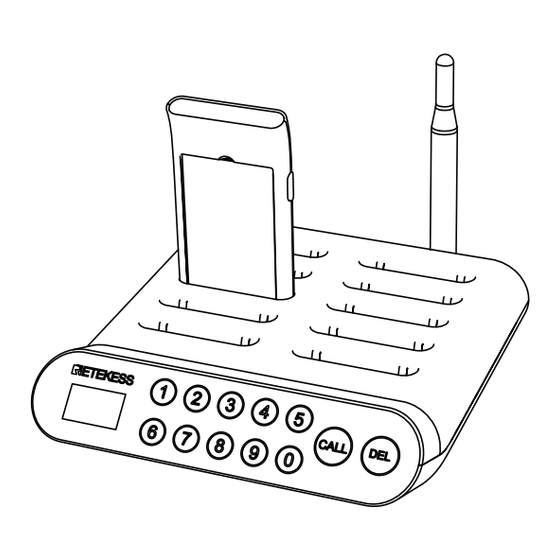

The diagram of transmitting host
Antenna
Receiver
Power in
Stickers
Charging slot
1
The diagram of the receiver
Paper slot
Transparent cover Stickers
Technical data
Working voltage
Working frequency
Standby current
Standby Time
Receive sensitivity
Battery capacity
Decoder
Dimmension
Power input
orking frequency
W
Transmit Power
Encoder
Dimmension
Packing List
Keypad area
Name
Transmitting host
Antenna
Receiver
Power adaptor
User manual
Stickers
Transparent cover
LED
Reset
SET Mode
Built-in
battery
Charging
pins
Front Side Back
Receiver
DC 3.7V (Rechargeable battery)
433MHz
10mA
≈20 Hour
-110 dBm
300mAh
Learning code (AM)
106*52*11mm
Transmitting host
DC 12V/1A
433MHz
360mW
Learning code (AM)
180*160*35mm
Quantity
1 pc
1 pc
10 pcs
1 pc
1 pc
10pcs
10pcs
2
