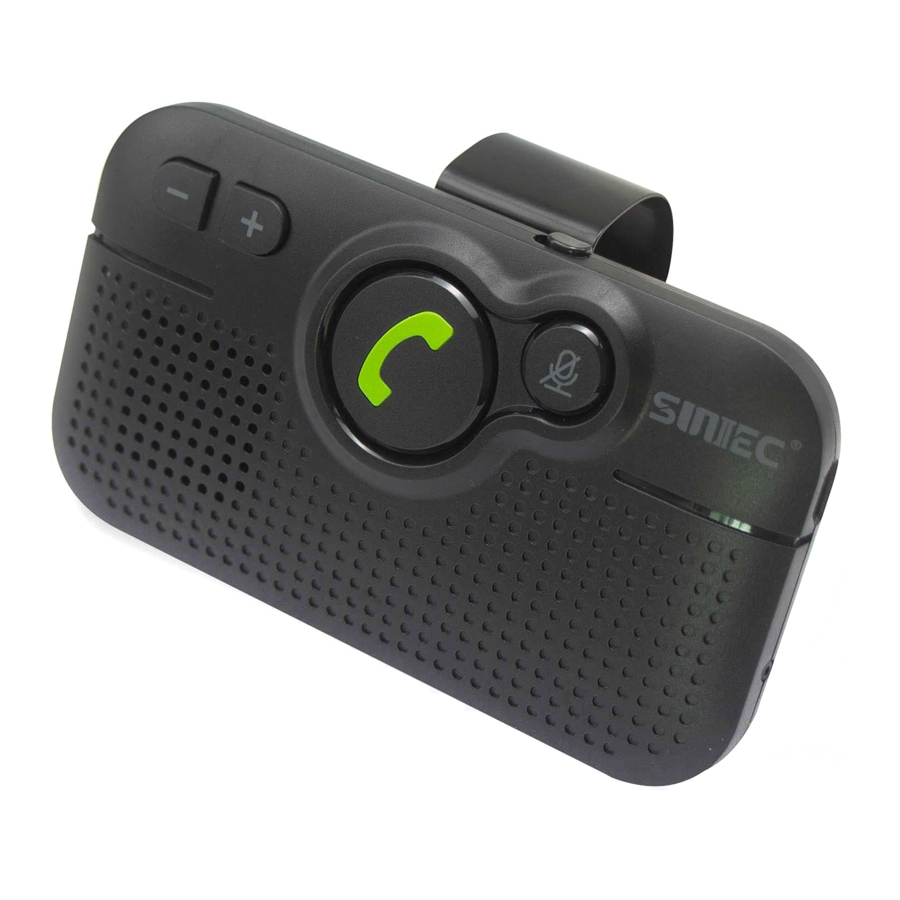

Sunitec Premium BC980SA Manual

ACCESSORIES

OVERVIEW

WHAT YOUR SUNITEC PREMIUM BC980SA CAN DO

• Answer, end, and reject calls.
• Deliver great sound and noise cancellation with the HD voice microphone.
• Redial last number.
• Connect to two mobile phones.
• Voice Dialing to allow easy call interaction while driving (by activating Siri, Google Assistant or other voice control software to answer an incoming call).
• Play music and GPS via your connected mobile device.
• Turns on/off automatically.

Noted: you will hear the Voice guidance of Power On, Power Off, Pairing, Connected, Disconnected and Battery low for related operating.

USING YOUR SUNITEC PREMIUM BC980SA

1. TURNING ON THE SUNITEC PREMIUM BC980SA
   Slide the on/off button to turn the SUNITEC PREMIUM BC980SA on or off.


2. FIRST TIME PAIRING WITH YOUR DEVICE
   First make sure SUNITEC PREMIUM BC980SA was slid ON, LED indicator will guide you through pairing with your mobile phone.

   1. Press and hold Multi-function button for 3 seconds until LED indicator flashing blue and red alternative(entering pairing mode).
   2. On your mobile device, turn on the Bluetooth feature.
      Tip: The Bluetooth feature is usually found in the Settings menu.
   3. Select your BC980SA f rom the device list. Once paired, the LED indicator glows blue and Flashing Blue once every 10 seconds.
      NOTE : After the SUNITEC PREMIUM BC980SA and a mobile phone have been paired they will automatically connect whenever the SUNITEC PREMIUM BC98 OSA is switched on and the mobile phone has bluetooth activated and is within range.
3. Positioning the SUNITEC PREMIUM BC980SA
   Clip the SUNITEC PREMIUM BC980SA to the sun visor in your vehicle.


4. Charging YOUR SUNITEC PREMIUM BC980SA
   1. In-car charging
      Connect the USB cable with car charger attachment to the SUNITEC PREMIUM BC980SA and the car lighter socket in your vehicle.


   2. PC charging
      Connect the SUNITEC PREMIUM BC980SA to any available USB slot on your PC, using the USB cable.


USING THE SUNITEC PREMIUM BC980SA WITH YOUR MOBILE PHONE

Button	Function	Operation
Multi-function button	Answer a call	Tap the once
	Reject a call	Double-Tap the
	End a call	Tap the once
	Redial last number	Double-tap the
	Activate Siri / other voice control software	Tap the once
	Speaker volume up/down	Press and hold the or
	Skip forward	Tap the
	Skip backward	Tap the
	Transfer call from SUNITEC BC980SA to mobile phone	Press and together

WHAT THE LIGHTS MEAN

SUPPORT FAQ

Q: I hear crackling noises
A: Bluetooth is a radio technology that is sensitive to object between the SUNITEC PREMIUM BC980SA and the connected device. Ensure the SUNITEC PREMIUM BC980SA and the connected device are within 33 feet (10 meters) of each other, with no major objects in the way (walls, etc.).

Q: I cannot hear anything
A: - Increase the speaker volume.

Q: I am having pairing problems
A: You may have deleted the SUNITEC PREMIUM BC980SA pairing connection in your mobile phone. Follow the pairing instructions.

Q: Will the SUNITEC PREMIUM BC980SA work with other Bluetooth equipment?
A: The SUNITEC PREMIUM BC980SA is designed to work with Bluetooth mobile phones. It can also support other Bluetooth devices that are compliant with Bluetooth version 1.1 or higher and support a headset, hands-free and/or advance audio distribution profile.

Q: I cannot use Reject call, call on hold, Redial or voice dialing
A: These features require your mobile phone to support a handsfree profile. Refer to your mobile phone user manual for more details.

Q: My voice commands does not work
A: This feature requires your mobile phone to support voice commands such as Siri, Google assistant or other voice control software. Refer to your mobile phone user manual for more Details.

Q: I want to reset the pairing list in my speakerphone
A: - The speakerphone registers a list of up to 8 mobile phones . To clear the pairing list and reset the SUNITEC PREMIUM BC980SA to factory settings you can turn the SUNITEC PREMIUM BC980SA on while pressing and for about 10 seconds.

Q: I want to cancel Auto Power On function
A: - MANUALL Y disable this feature by turning off the speakerphone . Slide the on/off button to turn the SUNITEC PREMIUM BC980SA of f.

Q: Pairing With Two Mobile Phones
A:

1. Slide on the SUNITEC PREMIUM BC980SA. Pairand connect BC980SA with the FIRST phone as the above pairing instructions.
2. Slide off the SUNITEC BC980SA and deactivate the Bluetooth on the first phone.
3. Slide on the SUNITEC PREMIUM BC980SA again. Pair and connect BC980SA with the SECOND phone as the above pairing instructions.
4. Slide off the SUNITEC BC980SA and activate the Bluetooth on the both phones.
5. Slide on the SUNITEC BC980SA, connected with both phones.

TECHNICAL SPECIFICATIONS

• Speaker: 2 watt
• Operating range: Up to 10 meters (33 feet)
• Operating frequency band: 2.4GHz~2.48GHz unlicensed LSM band
• Bluetooth version: 5.0
• Paired devices: Up to 8 paired devices.
• Two active devices connected simultaneously
• Supported Bluetooth profiles: Hands Free profile, Headset profile,
• A2DP Profile(GPS instruction announcement and music)
• Digital signal processing (DSP): Up to 21 dB noise reduction on transmit signal. Acoustic echo cancellation Talk time: Up to 20 hours
• Standby time: Up to 1000 hours
• Charging time: Approximately 3 hours
• Battery: Internal rechargeable 650mA Li-Polymer battery
• Charger Voltage: DC5.0V, 500mA

Note: The talk and standby time may vary when using different phones or other compatible Bluetooth devices, usage setting usage style and environments.

DECLARATION of CONFORMITY

The company Sunitec Electronics Limited, declares that product BC980SA complies with the essential requirement of the 2014/53/EU.
The declaration of conformity in complete form is available at the headquarters of Sunitec Electronics Limited.
Product sold in the US and Product sold in the European community
Manufactured by Sunitec Electronics Limited. MADE IN CHINA
