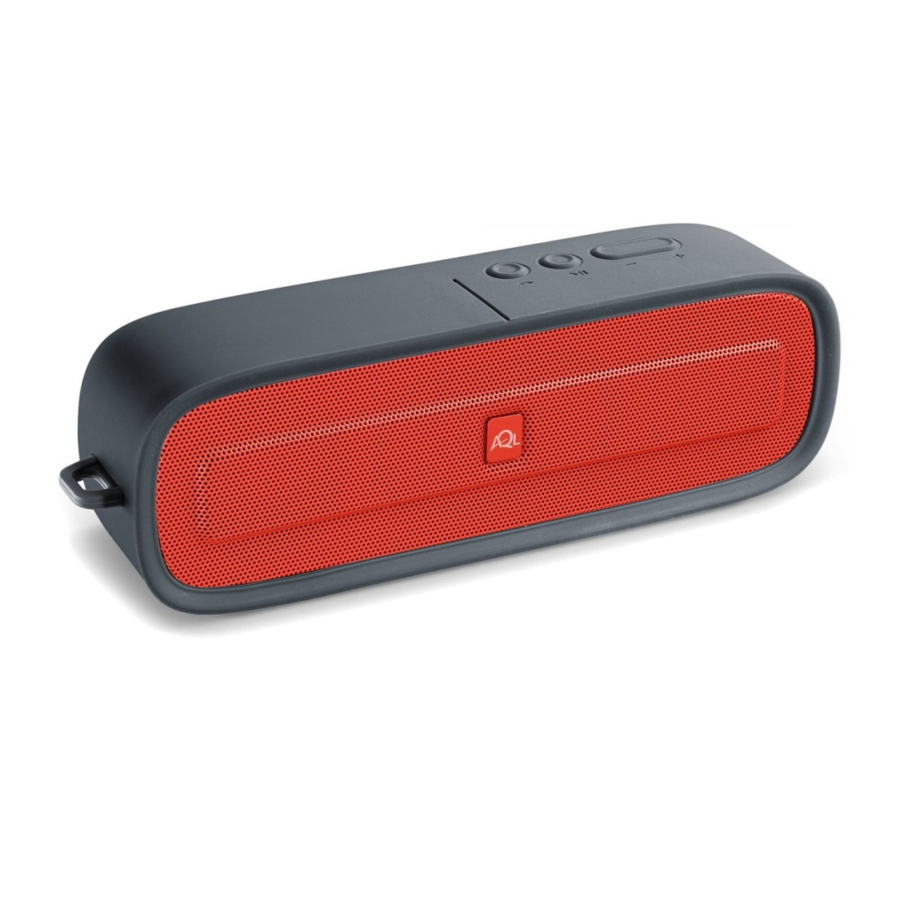

AQL SPARKLE - Dual Driver Portable Speaker Manual

Table of Contents

Contents

1 Overview
2 Description
3 PRELIMINARY OPERATIONS
4 USE
5 TECHNICAL SPECIFICATIONS
6 Documents / Resources
- 6.1 Download manual

Overview

Description

On/off Switch
Volume +/ FF button
Volume -/ Rew button
Play/Pause button
Answer call button
Line In socket for connection via a 3.5mm double jack cable
Line Out socket for connection with another speaker via a 3.5mm double jack cable
Charging port
LEDs
MicroUSB charging cable
3.5mm double jack cable

PRELIMINARY OPERATIONS

Charge the device before use. Use the MicroUSB cable (10) supplied.

Pairing the device with a mobile phone:

Make sure that the device is switched off and turn off Bluetooth on the phone
Press and hold down the MF button (4) until the LED (9) flashes red/blue in alternating fashion (around 8 seconds).
Turn on Bluetooth® on the phone and select SPARKLE after it has been detected. The LED (9) on the device will now flash blue to show that the unit has been paired.

If pairing is unsuccessful, turn the unit off and try again.

if the device or the phone have been turned off or are out of range, you may need to use the menu on your phone to pair them again; or, just press the MF button (4) once.

Turning on the device: move the switch (1) to the on position, the LED (9) will flash blue and the device will beep.
Switching off the device: move the switch (1) to the off position.

USE

Play/Pause: press the Play/Pause button (4)
FF: press the + button (2)
Rew: press the - button (3)
Volume control: keep the Volume + or Volume - buttons (2-3) pressed.
Answering a call: briefly press the answer button (5).
Ending a call: briefly press the answer button (5).
Low battery indicator: the flashing red LED (9) indicates that the battery capacity is low.

TECHNICAL SPECIFICATIONS

Bluetooth®: v2.1 + EDR
Frequency: 2.402GHz to 2.480GHz
Profiles supported: Headset - Handsfree - A2DP - AVRCP
Range: 10m
Talk Time: about 10h
Music Time: about 8h
Standby Time: about 100h
Recharge Time: about 2,5h
MicroUSB port Voltage: 5V DC
MicroUSB port current: 0,36A
Battery Voltage: 3.7V
Battery Capacity: 2000mAh
ERP power: 4dBm
Dimensions: (LxWxH): 195x55x65 (mm)
Weight: 373g
