Hama KVM-Switch Operating Instructions

Package Contents

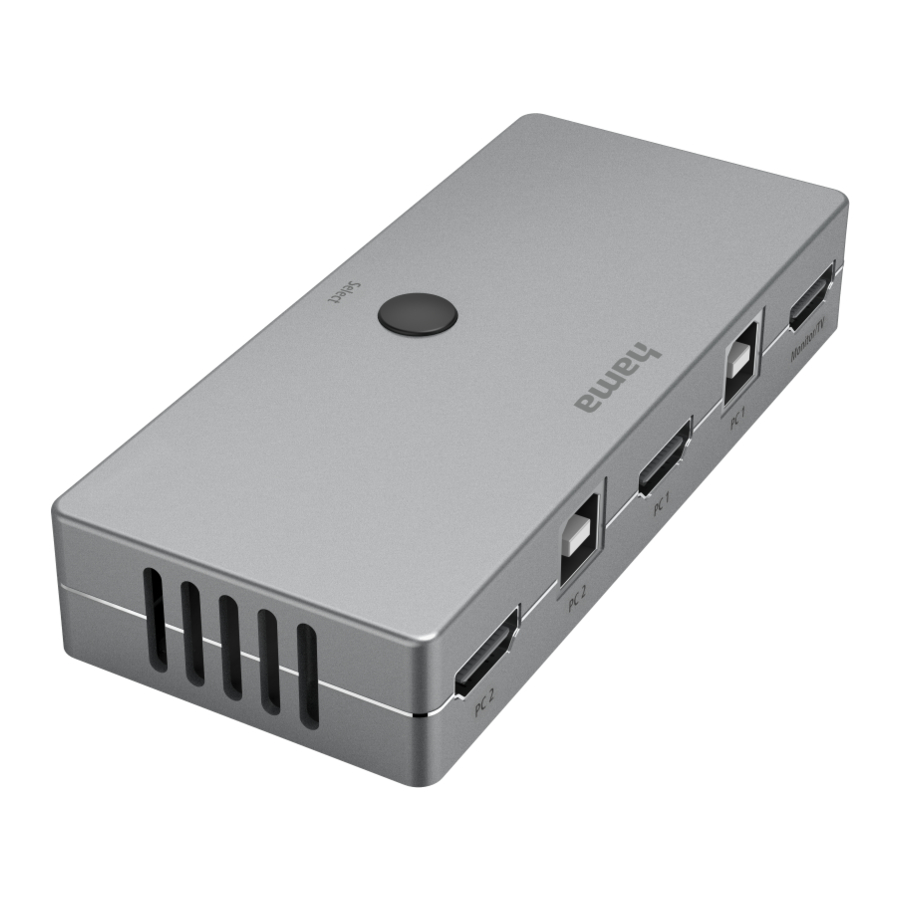

  • KVM switch
  • 2 HDMI™ cables
  • 2 USB cables
  • These operating instructions

Safety Notes

  • Do not attempt to service or repair the product yourself. Leave any and all service work to quali ed experts.
  • Do not open the device or continue to operate it if it becomes damaged.
  • Do not operate the product outside the power limits given in the speci cations.
  • Do not modify the product in any way. Doing so voids the warranty.
  • Keep this product, as all electrical products, out of the reach of children! Use the product for its intended purpose only.
  • Protect the product from dirt, moisture and overheating, and only use it in a dry environment.
  • The product is intended for indoor use only.
  • Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
  • Do not use the product in moist environments and avoid splashes.
  • Do not use the product in areas where the use of electronic devices is not permitted.
  • Do not drop the product and do not expose it to any major shocks.
  • Dispose of packaging material immediately according to locally applicable regulations.

Warning

  • Find out the maximum output current capacity of the USB port on your device. To do this, consult the operating instructions or ask the manufacturer.
  • Common values are 500 mA for USB-A 2.0, 900 mA for USB-A 3.0, and up to 3000 mA for USB-C.
  • Ensure that the total power consumption of all USB devices connected to the KVM switch does not exceed the determined value.

information Note

  • For optimised video function, we recommend passive monitor adapters / cables (without chipset / signal converter).

Startup and Operation

Startup and Operation - Part 1
Startup and Operation - Part 2

  • Connect the enclosed HDMI™/USB cable both to the KVM switch and PC/notebook 1 and PC/notebook 2. Now connect the HDMI™ cable on the monitor/TV to the KVM switch connection marked "Monitor/TV".
  • The symbols printed underneath the USB sockets represent connection suggestions. The USB devices can however also be connected to the KVM switch in a different sequence / combination.
  • Switch on your computer and boot the system.
  • Connect the product to a free HDMI™/USB port on your computer.
  • You do not have to install drivers; the computer will automatically recognise the product.
  • If necessary, follow the instructions for your operating system.
  • In order to use your devices, plug them into the product one after the other.
  • The connected devices can be toggled between PC/notebook 1 and PC/ notebook 2 by pressing the "Select" button on the KVM switch.
  • The LED on the KVM switch lights up 1 or 2, depending on whether the connected devices are assigned to PC/notebook 1 or PC/notebook 2

Warranty Disclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/ or safety notes.

Technical Data

information

Operating voltage / current consumption 5 V max. 500 mA
Compatibility USB-A port HDMI™ port
System requirements Windows 11 / 10 / 8 / 7 Mac OS 10.8
USB speci cation USB 2.0

information Note

  • If there is interference or the product no longer responds, unplug the product, wait a few seconds and then plug it in again.

HamaGmbH&CoKG
86652 Monheim/Germany

Service & Support
www.hama.com

+49 9091 502-0 DG

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
