Sengun Makina MODEL-30 User & Maintenance Manual

Dough rolling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL-30, MODEL-40 MODEL -50
DOUGH ROLLING MACHINE
USER & MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MODEL-30 and is the answer not in the manual?

Questions and answers

Related Manuals for Sengun Makina MODEL-30

Summary of Contents for Sengun Makina MODEL-30

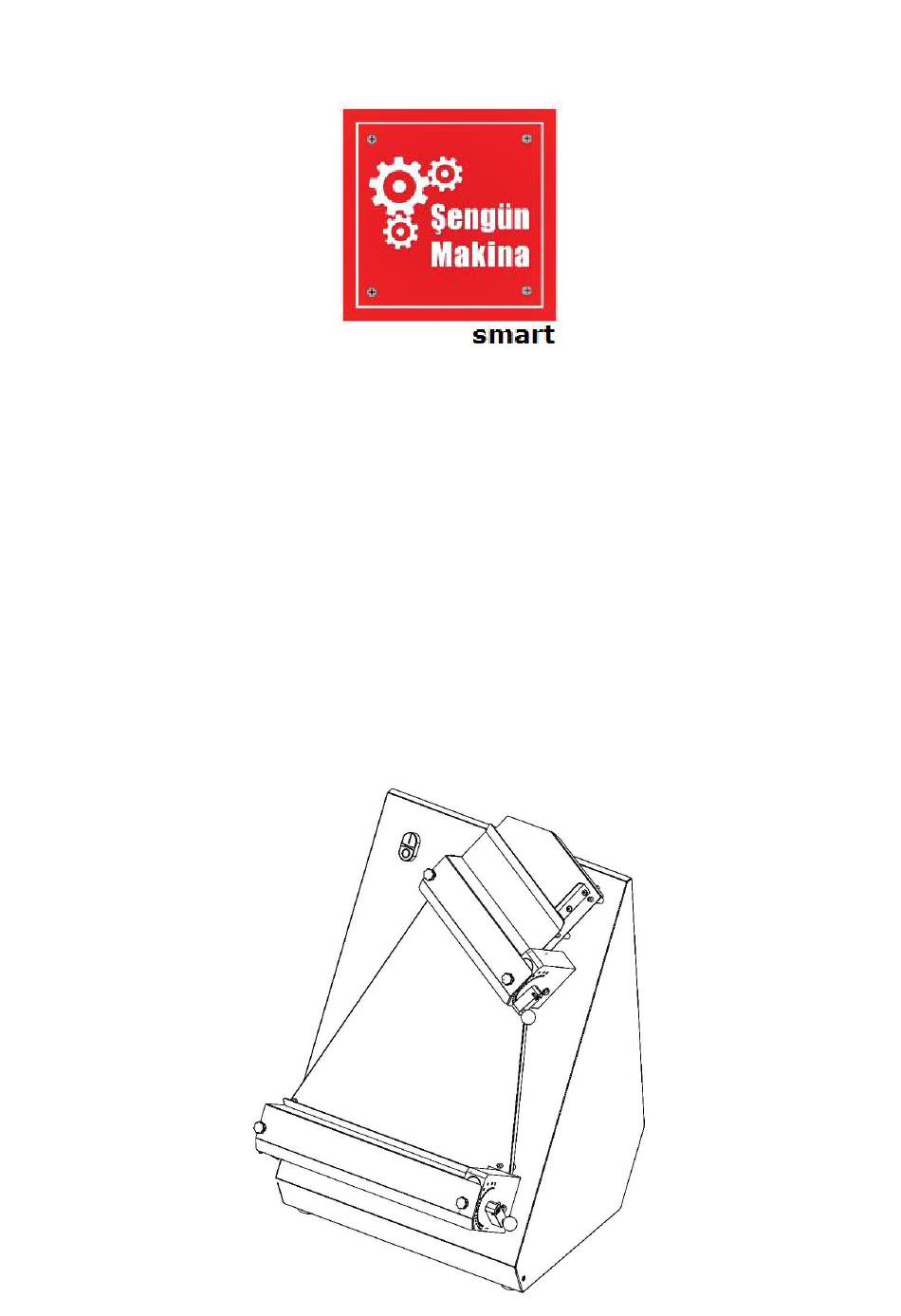

  • Page 1 MODEL-30, MODEL-40 MODEL -50 DOUGH ROLLING MACHINE USER & MAINTENANCE MANUAL...
  • Page 2 WARRANTY CERTIFICATE SERIAL NUMBER: SALE DATE: Sold at the above date MODEL- ..DOUGH ROLLING MACHINE is guaranteed against production failures for ..… Year by manufacturer. Warranty Terms; - Warranty terms start after the product delivery for ….. year. - Recommended daily working time is 10 hours. The scope of warranty is assessed by year or by working hours.
  • Page 3 PRESENTATION  Please read the manuel carefully before installing the machine.  The machine will be out of warranty when your operate the machine with at read.  Please read carefully the manual that gives you information on the installation is prepared in accordance with the legal regulations before arriving at the machine installation.

  • Page 4: Table Of Contents

    CONTENTS WARRANTY CERTIFICATE PRESANTATION SECTION 1: INTRODUCTION 1.1 General Introduction of Dough Rolling Machine Model: 30/40 1.2 Technical Specifications Table 1.3 Safety Warnings Labels SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTS 2.1 Body Components SECTION 3: INSTRUCTIONS FOR USE 3.1 Usage Recommendations 3.2 Safety Warnings 3.3 Operating and Starting Instructions 3.4 Operation On Optional Pedal Models...

  • Page 5: Section 1: Introduction

    SECTION 1: INTRODUCTION 1.1 General Introduction of Dough Rolling Machine Model-30 / Model-40: Uses at lahmacun, pizza and other dough rolling processes. Dough thickness and diameter get easy with roller gap adjustment system. Dough rolling process perform in min. 3, max. 5 seconds with fast and easy using feature.

  • Page 6: Section 2: Introduction Of Machine Body Components

    SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTS 2.1 Body Components: PART DESCRIPTION FRONT VIEW BACK VIEW BODY TOP ROAD SHEET START/STOP SWITCH SHEET HOLDER PIN TOP ROLLER GROUP 10 TOP ROLLER RANGE ADJUSTMENT HANDLE TOP ROLLER SCRAPERS 11 UNDER ROLLER RANGE ADJUSTMENT HANDLE MIDDLE ROAD SHEET 12 VENTILATION FAN BOTTOM ROLER GROUP...

  • Page 7: Section 3: Instructions For Use

    SECTION 3: INSTRUCTIONS FOR USE 3.1 Usage Recommendations: For Rolling Circular Dough (Lahmacun Dough Etc.); Compress the dough and make it circular. Pass through the dough to the upper roller gap. Rotate the dough (shown in figure) then pass through the dough in parallel to the bottom roller gap.

  • Page 8: Operating And Starting Instructions

    3.3 Operating and Starting Instructions: 1. Connect to monophase electrical supply. 2. Push the “1” button. 3. Adjust the roller space shown in picture. (This procedure adjusts the dough thickness and diameter) Adjust the dough thickness from “0” to “20” shown in figure. Pull the bakelite knob and rotate the knob to “+”...

  • Page 9: Operation On Optional Pedal Models

    3.4 Operation On Optional Pedal Models: SWITCH  Plug in the Pedal.  If you turn switch as “0”, the rolling machine doesn’t work.  If you turn switch as “I”, you can control the machine with the 0-I switch at the top of Rolling machine. ...

  • Page 10: Section 4: Maintenance

    SECTION 4: MAINTENANCE 4.1 Exterior Body Maintenance: Pull up the entrance and central sheets shown in picture then clean the flour and crumbs. Stop the machine and unplug the electrical supply then clean with wet cloth. Don’t plug the electrical supply before the machine dry.
  • Page 11 SECTION 5: SPARE PARTS MANUAL MODEL-30 M0017 (TOP ROLLER GROUP) SPARE PART LIST ITEM SPARE PART DESCRIPTION OF THE SPARE ITEM SPARE PART DESCRIPTION OF THE SPARE UNIT UNIT NUMBER PART NUMBER PART 00372 GEARBOX 00050 WASHER 00001 ROLLER BEARING...
  • Page 12 MODEL-30 M0018 (BOTTOM ROLLER GROUP) SPARE PARTS LIST ITEM SPARE PART DESCRIPTION OF THE SPARE ITEM SPARE PART DESCRIPTION OF THE UNIT UNIT NUMBER PART NUMBER SPARE PART 00011 WORM 00001 ROLLER BEARING 00024 BEARING 00050 WASHER 00025 BEARING 00041...
  • Page 13 MODEL-30/ MODEL-30 FLAT BODY Optional Model -30 Model -30 Flat NOTE: Parts 32, 33, 34, 35 are optional on all models.
  • Page 14 MODEL-30/ MODEL 30 FLAT BODY SPARE PARTS LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT 00085 PULLEY 00005 PULLEY 00055 BUTTON 00057 FUSE 00056 CONTAKTOR 00132 MIDDLE ROAD SHEET PIN (UZUN) 00133 TOP ROAD SHEET PIN (SHORT)
  • Page 15 00058M SPARE PART LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT 00347 ENGINE SHEET 01963 WASHER 04072 BOLT 01961 WASHER 01959 00094 PULLEY 00098 PULLEY WASHER 00049 BOLT 00023 ENGINE...
  • Page 16 MODEL-40 M0011 (TOP ROLLER COMPLETE) SPARE PARTS LIST SPARE PART DESCRIPTION OF THE SPARE PART ITEM UNIT DESCRIPTION OF THE SPARE PART UNIT NUMBER SPARE PART NUMBER 00372 GEAR BOX 00103 SHAFT 00013 COVER 00105 SHAFT 00022 THIMBLE 00338 GEAR 00024 BEARING 00007...
  • Page 17 MODEL-40 M0012 (BOTTOM ROLLER COMPLETE) SPARE PARTS LIST ITEM SPARE PART DESCRIPTION OF THE SPARE PART UNIT DESCRIPTION OF THE SPARE PART UNIT NUMBER SPARE PART NUMBER 00372 GEAR BOX 00054 BOLT 00011 WORM 00088 CLUTCH 00024 BEARING 00010 CLUTCH 00025 BEARING 00007...
  • Page 18 MODEL-40/ MODEL-40 FLAT BODY Optional Model-40 Model-40 Flat NOTE: Parts 15, 32, 33, 34 are optional on all models.
  • Page 19 MODEL-40/ MODEL 40 FLAT BODY SPARE PARTS LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT M0012 BOTTOM ROLER (COMPLETE) M0011 TOP ROLLER (COMPLETE) (KOMPLE) 00133 TOP ROAD SHEET PIN (SHORT) 00132 MIDDLE ROAD SHEET PIN (UZUN) 00055 BUTTON 00005 PULLEY...
  • Page 20 SECTION 6: ROLLER PROTECTION SHEET ASSEMBLY DETAIL B DETAIL A SCALE 1: 4 SCALE 1: 4 PART DESCRIPTION STAY BOLT (LEFT) GUARD SHEET THIMBLE BOARDING HANDLE STAY BOLT (RIGHT) GUARD SHEET (TOP ROLLER) GUARD SHEET (BOTTOM ROLLER)
  • Page 21 MODEL-50 00627M (TOP ROLLER COMPLETE) SPARE PARTS LIST SPARE PART DESCRIPTION OF THE SPARE PART ITEM UNIT DESCRIPTION OF THE SPARE PART UNIT NUMBER SPARE PART NUMBER 00372 GEAR BOX 00560 SHAFT 00013 COVER 00660 SHAFT 00022 THIMBLE 00338 GEAR 00024 BEARING 00007...
  • Page 22 MODEL-50 00628M (BOTTOM ROLLER COMPLETE) SPARE PARTS LIST ITEM SPARE PART DESCRIPTION OF THE SPARE PART UNIT DESCRIPTION OF THE SPARE PART UNIT NUMBER SPARE PART NUMBER 00372 GEAR BOX 00054 BOLT 00011 WORM 00088 CLUTCH 00024 BEARING 00010 CLUTCH 00025 BEARING 00007...
  • Page 23 MODEL-50 FLAT BODY Optional...
  • Page 24 MODEL-50 FLAT BODY SPARE PARTS LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT 00628M BOTTOM ROLER (COMPLETE) 00627M TOP ROLLER (COMPLETE) (KOMPLE) 00132 TOP ROAD SHEET PIN (SHORT) 00132 MIDDLE ROAD SHEET PIN (UZUN) 00055 BUTTON 00005 PULLEY 00085 PULLEY...
  • Page 25 SECTION 6: ROLLER PROTECTION SHEET ASSEMBLY DETAIL B DETAIL A SCALE 1: 4 SCALE 1: 4 PART DESCRIPTION STAY BOLT (LEFT) GUARD SHEET THIMBLE BOARDING HANDLE STAY BOLT (RIGHT) GUARD SHEET (TOP ROLLER) GUARD SHEET (BOTTOM ROLLER)

  • Page 26: Section 7: Electrical Diagram

    SECTION 7: ELECTRICAL DIAGRAM 7.1 Model 30/40, Model 30/40/50 Flat Electrical Diagram:...

  • Page 27: Model 30/40/50 Pedal, Model 30/40/50 Flat Pedal Electrical Diagram

    7.2 Model 30/40 Pedal, Model 30/40/50 Flat Pedal Electrical Diagram:...
  • Page 28 Üretici Firma: ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ. İkitelli Organize Sanayi Bölgesi Mah. Atatürk Bulvarı Pufa İş Merkezi No:98 Bodrum Kat:2-3 Başakşehir / İstanbul | Türkiye Tel: +90 212 671 23 23 (Pbx) Tel 2: +90 212 671 84 24 Fax: +90 212 671 88 28 GSM: +90 533 957 14 53 E-Mail: info@sengunmakina.com...
