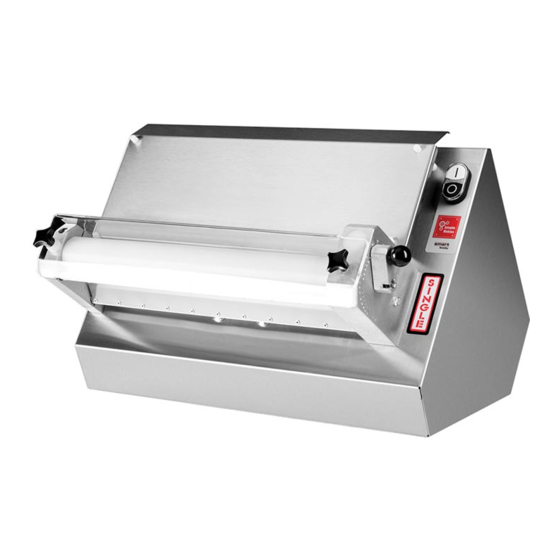

- Page 1 ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ. DOUGH ROLLING MACHINE USER & MAINTENANCE MANUAL MODEL SM-30SINGLE / SM-40SINGLE...
- Page 2 WARRANTY CERTIFICATE SERIAL NUMBER: SALE DATE: Sold at the above date SM – ….. SINGLE MODEL DOUGH ROLL OUT MACHINE is guaranteed against production failures for …. Year by ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ. Warranty Terms; - Warranty terms start after the product delivery for …...
-
Page 3: Table Of Contents
CONTENTS SECTION 1: INTRODUCTION 1.1 General Introduction of Dough Rolling Machine Model : SM-30 Single, SM-40 Single 1.2 Technical Specifications Table 1.3 Safety Warnings Labels SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTSI 2.1 Guard Sheet Assembly 2.2 Body Components SECTION 3: INSTRUCTIONS FOR USE 3.1 Usage Recommendations... -
Page 4: Section 1: Introduction
SECTION 1: INTRODUCTION 1.1 General Introduction Of Dough Rolling Machine Model : SM-30 SINGLE, SM-40 SINGLE Uses at lahmacun, pizza and other dough rolling processes. Dough thickness and diameter get easy with roller gap adjustment system. Dough rolling process perform in min. 3, max. 5 seconds with fast and easy using feature. -
Page 5: Section 2: Introduction Of Machine Body Componentsi
SECTION 2: INTRODUCTION OF MACHINE BODY COMPONENTS 2.1 Guard Sheet Assembly 1- THIMBLE 2- BOLT 3- GUARD SHEET 4- BOLT 2.2 Body Components FRONT VIEW BACK VIEW 1 – BODY 6 – ROLLER SCRAPER 2 – SHEET HOLDER PIN 7 – ADJUST HANDLE 3 –... -
Page 6: Section 3 Instructions For Use
SECTION 3 INSTRUCTIONS FOR USE 3.1 Usage Recommendations For rolling circular dough (lahmacun dough etc.); Compress the dough and make it circular. Pass through the dough to the upper roller gap. Rotate the dough (shown in figure) then pass through the dough in parallel to the bottom roller gap. -
Page 7: Operating And Starting Instructions
3.3 Operating and Starting Instructions 1- Connect to monophase electrical supply. 2- Push the “I” button. 3- Adjust the roller space shown in picture.(This procedure adjust the dough thickness and diameter) Adjust the dough thickness from “0” to “20” shown in figure. Pull the bakelite knob and rotate the knob to “+”... -
Page 8: Section 4 Maintenance
SECTION 4 MAINTENANCE 4.1 Exterior Body Maintenance Pull up the central sheet shown in picture then clean the flour and crumbs. Stop the machine and unplug the electrical supply then clean with wet cloth. Don’t plug the electrical supply before the machine dry. 4.2 Scrapers Maintenance ... - Page 9 SECTION 5: SPARE PARTS MANUAL SM30 SINGLE M0018 (ROLLER GROUP) SPARE PARTS LIST ITEM SPARE PART DESCRIPTION OF THE ITEM SPARE PART DESCRIPTION OF THE SPARE UNIT UNIT NUMBER SPARE PART NUMBER PART 00011 WORM 00001 ROLLER BEARING 00024 BEARING 00050 WASHER 00025...
- Page 10 00084M SPARE PART LIST SPARE PART DESCRIPTION OF THE ITEM UNIT NUMBER SPARE PART 00386 ENGINE 00393 ENGINE SHEET 01963 WASHER 04072 BOLT 00394 PULLEY 01961 WASHER 01959 00098 WASHER 00049 BOLT 00083M SPARE PART LIST SPARE PART DESCRIPTION OF ITEM UNIT NUMBER...
- Page 12 SM-30 SINGLE BODY SPARE PARTS LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT 00088M BODY 00055 START/STOP SWITCH 00132 CENTRAL SHEET PIN (LONG) 00085 PULLEY 01258 WASHER 00391 CENTRAL SHEET 00476 BOLT 00354 00097 RECORD 00057 FUSE...
- Page 13 SM40 SINGLE M0012 (BOTTOM ROLLER GROUP) SPARE PARTS LIST SPARE PART DESCRIPTION OF THE SPARE PART ITEM UNIT DESCRIPTION OF THE SPARE PART UNIT NUMBER SPARE PART NUMBER 00372 GEAR BOX 00054 BOLT 00011 WORM 00088 CLUTCH 00024 BEARING 00010 CLUTCH 00025 BEARING...
- Page 14 00084M SPARE PARTS LIST SPARE PART DESCRIPTION OF THE ITEM UNIT NUMBER SPARE PART 00386 ENGINE 00393 ENGINE SHEET 01963 WASHER 04072 BOLT 00394 PULLEY 01961 WASHER 01959 00098 WASHER 00049 BOLT 00085M SPARE PARTS LIST SPARE PART DESCRIPTION OF THE ITEM UNIT NUMBER...
- Page 16 SM-40 SINGLE SPARE PARTS LIST ITEM SPARE PART NUMBER DESCRIPTION OF THE SPARE PART UNIT 00092M SM-40 SINGLE BODY 00397 CENTRAL SHEET 00132 CENTRAL SHEET PIN (LONG) 00055 BUTTON 00085 PULLEY 00056 CONTACTOR 00057 FUSE 00097 RECORD SM-40 M0012 BOTTOM ROLLER GROUP 00354 00046 BOLT...
- Page 17 SECTION 6: ELECTRICAL DIAGRAM...
- Page 18 ŞENGÜN MAKİNA İNŞAAT ve KIRTASİYE SAN. TİC. LTD. ŞTİ. İkitelli Organized Industrial Area, Atatürk Boulevard, Pufa Business Center, No: 98 Basement Floor: 2-3 Başakşehir / İstanbul | Türkiye Phone: +90 212 671 23 23 (Pbx) Phone 2 : +90 212 671 84 24 Fax : +90 212 671 88 28 GSM : +90 533 957 14 53 E-Mail: info@sengunmakina.com...
