VELTIUM LITE ZERO Operation Manual

Hide thumbs Also See for LITE ZERO:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
MANUAL
V 1.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITE ZERO and is the answer not in the manual?

Questions and answers

Related Manuals for VELTIUM LITE ZERO

Summary of Contents for VELTIUM LITE ZERO

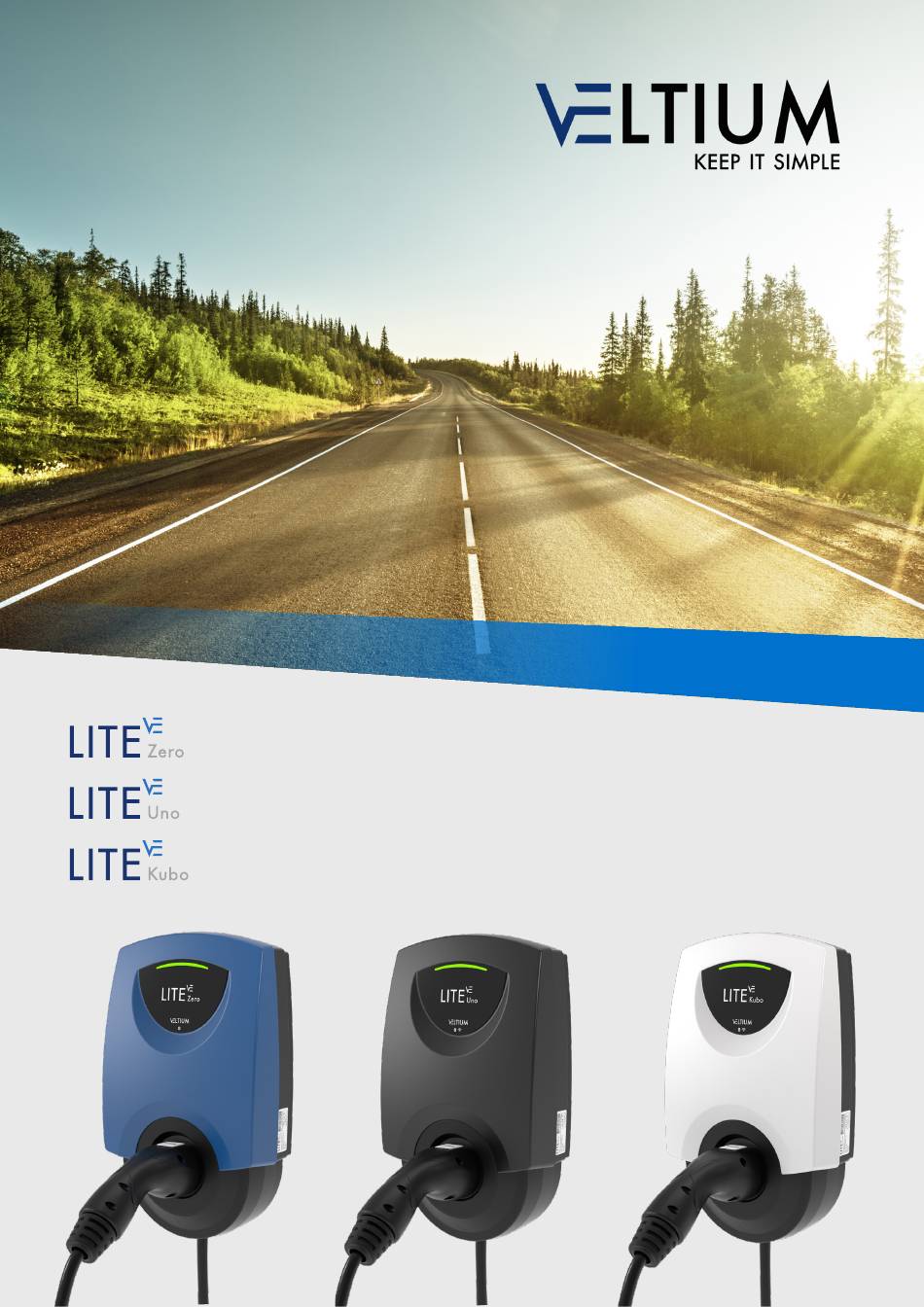

  • Page 1 INSTALLATION MANUAL V 1.05...

  • Page 2: Table Of Contents

    2.2 OPTIONAL ACCESSORIES 2.3 ELEMENTS INCLUDED IN THE PACKAGING 2.4 REQUIRED TOOLS 3- INSTALLATION 3.1 INSTALLATION OF THE LITE ZERO/UNO/KUBO CHARGE 3.2 INSTALLATION OF THE STAND ELEMENT 3.3 INSTALLATION OF THE CURVE DEVICE 3.4 INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET 3.5 CONNECTION OF THE CHARGER TO ANOTHER CHARGER,...

  • Page 3: 1- Welcome

    3 years from the date of purchase. During this period, VELTIUM will repair or replace any defective product. In the event of repair or replacement, the warranty period for the new items will be the time remaining for the other original parts, or 6 months, whichever is longest.

  • Page 4: Safety Measures

    1- WELCOME 1.3 SAFETY MEASURES The charger must only be installed by qualified personnel following applicable local regulations. • Use the unit within the parameters and conditions specified at item 4, “TECHNICAL SPECIFICATIONS” • Visually inspect the unit prior to installation. Contact the distributor in the event of detecting faults, breakages, dirt or humidity.

  • Page 5: 2- Before Starting

    2- BEFORE STARTING 2.1 IDENTIFICATION OF THE CHARGER The charger model is visible on its cover (LITE Zero, Uno or Kubo). The charger also comes with a label on the side indicating its model. INSTALLATION MANUAL...

  • Page 6: Optional Accessories

    2- BEFORE STARTING 2.2 ELEMENTS INCLUDED IN THE PACKAGING ELEMENT QUANTITY LITE Zero, Uno, Kubo LITE Charger Bushing 4.8x38 screw 4.8x90 screw SX8x40 wall plug Blind grommet Hollow crimp ferrule for 6 mm cables 3 (Zero, Uno) - 5 (Kubo)

  • Page 7: Required Tools

    2- BEFORE STARTING 2.4 REQUIRED TOOLS LITE (Zero, Uno, Kubo) Driller 8 mm bit Phillips PH2 screwdriver Hammer Pencil or marker STAND Spanner 4 mm Allen or hex key CURVE 3.2 mm flathead screwdriver SINGLE-PHASE METER SET Phillips PH1 screwdriver THREE-PHASE METER SET Phillips PH2 screwdriver INSTALLATION...

  • Page 8: 3- Installation

    3- INSTALLATION INSTALLATION 3.1 INSTALLATION OF THE LITE ZERO/UNO/KUBO CHARGER CHECK THAT THE POWER SUPPLY IS DISCONNECTED Make sure that the power supply is disconnected at the charger point of installation. CHECK THE CONNECTIONS Check that the electrical wiring required to power the charger is available at the point of installation.
  • Page 9 3- INSTALLATION PLACE THE TEMPLATE Place the template in the desired position, approximately 1.2 m from the horizontal reference to the ground. We recommend that you use a spirit level to ensure that the template is perfectly level. Connector height 1.2 m Ground INSTALLATION...
  • Page 10 2. Cut and strip the cables to the recommended length. 3. Fit the ferrules. Always use an appropriate tool (crimper) to avoid poor connections likely to cause overheating in the connection terminals. Lite Zero/Uno Lite Kubo 25 cm 25 cm...
  • Page 11 3- INSTALLATION PREPARE THE CHARGER INSTALLATION 1. Mark the holes to be made. 2. Drill the holes. 3. Fit the wall plugs. 8 mm FIT THE UPPER SCREW Insert the screw of the upper part and tighten it into the bushing as far as it will go. In the case of the STAND, use the screws supplied with it in the packaging.
  • Page 12 CONNECT THE CHARGER Connect the electric terminals of the power cable to the corresponding points on the charger. Make sure that all screws are securely tightened for effective contact of the conductor’s active elements. LITE Zero/Uno LITE Kubo Neutral Neutral Phase 1...
  • Page 13 3- INSTALLATION OPTIONAL: INSTALLATION OF THE CURVE DEVICE (ZERO/UNO) In the event of having to install the CURVE device, see item 3.3 “INSTALLATION OF THE CURVE DEVICE ”. OPTIONAL: INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET (UNO/KUBO) In the event of having to install the SINGLE-PHASE OR THREE-PHASE METER SET, see item 3.4 “INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET ”.
  • Page 14 3- INSTALLATION FIX THE CHARGER TO THE WALL FRONTAL 1. Fit the three screws on the lower part of the charger and tighten them firmly. 2. Fit the caps to cover the three screws. Wall mounting: 4.8x90 screw STAND assembly: M5x70 screw INSTALL THE CHARGING CABLE SUPPORT 1.
  • Page 15 3- INSTALLATION 4. Fit the screws. SUPPLY POWER TO THE CHARGER Close the element that cuts off the electrical circuit powering the charger. INSTALLATION MANUAL...

  • Page 16: Installation Of The Stand Element

    3- INSTALLATION 3.2 INSTALLATION OF THE STAND ELEMENT 1. Prepare the ground anchors for the STAND element according to the figure, always using M12 components. 20.5 cm 15.5 cm 2. Remove the top part of the STAND element in order to access the hollow interior. INSTALLATION MANUAL...
  • Page 17 3- INSTALLATION 3. Place the STAND element next to the cable outlet on the ground, and pass the power supply cables and the auxiliary wiring (for connecting other devices) through the hollow interior from the bottom until they can be pulled out through the corresponding grommet.
  • Page 18 3- INSTALLATION 5. Mount the charger onto the STAND element. Follow points 8 to 12 of the charger assembly instructions. The fasteners to be used in this case must be those provided with the STAND element, and not those supplied with the charger. Given that in this case the power supply does not come through the side of the charger, this access must be covered using the blind grommet provided with the charger.

  • Page 19: Installation Of The Curve Device

    3- INSTALLATION 3.3 INSTALLATION OF THE CURVE DEVICE The CURVE device is designed for use with the LITE Zero/Uno charger. 1. Select the circuit onto which you want to install the CURVE device. At the meter outlet In the home circuit...
  • Page 20 5. Strip 8 mm from each wire of the cable and connect it to the terminals of the CURVE device. 6. Strip 8 mm from each wire of the cable and connect the CURVE device to the charger in the pins indicated. LITE Zero LITE Uno INSTALLATION MANUAL...

  • Page 21: Installation Of The Single-Phase And Three-Phase Meter Set

    3- INSTALLATION 3.4 INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET The METER SET is made up of two elements: an energy meter and a smart gateway. 1. Select the circuit onto which you wish to install the METER SET. At the meter outlet In the home circuit Power control and Solar Charge...
  • Page 22 3- INSTALLATION 4. Place the power and neutral cable contacts in the energy meter and tighten the screws. The incorrect or incomplete connection of voltage or other terminals can cause malfunction of or damage to the device. Three-Phase Single-Phase 65 A •...
  • Page 23 3- INSTALLATION 6. Run an Ethernet cable with RJ45 connectors on both ends and connect it to both the smart gateway and the charger. Connect it to either of the charger’s two RJ45 sockets. LITE Uno LITE Kubo INSTALLATION MANUAL...

  • Page 24: Connection Of The Charger To Another Charger

    3- INSTALLATION 3.5 CONNECTION OF THE CHARGER TO ANOTHER CHARGER, OR TO A COMMUNICATIONS ELEMENT The LITE Uno and Kubo models have two local network sockets which permit, as well as connection to a METER SET (see item 3.4 “INSTALLATION OF THE SINGLE-PHASE AND THREE-PHASE METER SET”), the following: •...

  • Page 25: 4- Technical Specifications

    4.1 CHARGERS LITE Zero LITE Uno LITE Kubo Functional Charging standard Mode 3 as IEC 61851-1 Ed 3.0 User interface VELTIUM App and Customer Area at www.veltium.com website Status indication Multicolour LED Energy metering Integrated MID meter • Free Access control •...
  • Page 26 4- TECHNICAL SPECIFICATIONS LITE Zero LITE Uno LITE Kubo Communications Bluetooth BLE 4.2 Wi-Fi 802.11 b/g/n Ethernet 2 x RJ45 Mechanical Material Flame retardant PC/ASA (V0) • Wall Anchor type • Floor with STAND accessory Height (mm) Width (mm) Depth (mm) Weight (including 5m/7m charging cable) 3.75 kg/4.35 kg...
  • Page 27 4- TECHNICAL SPECIFICATIONS DIMENSIONS 45 mm 365 mm 120 mm 220 mm 105 mm INSTALLATION MANUAL...

  • Page 28: Accessories

    4- TECHNICAL SPECIFICATIONS 4.2 ACCESSORIES STAND 283 mm 240 mm 1400 mm 120 mm 250 mm 180 mm 310 mm 350 mm 1400 mm 120 mm 250 mm 180 mm TECHNICAL SPECIFICATIONS Functional Number of chargers- Single STAND Number of chargers- Double STAND Mechanical Material Lacquered steel...
  • Page 29 4- TECHNICAL SPECIFICATIONS CURVE 27 mm 48 mm 57 mm 22 mm TECHNICAL SPECIFICATIONS Electrical Maximum current 63 A Mechanical Dimensions (mm) 48 x 57 x 27 Material PC/ABS V0 Maximum cable gauge 25 mm Charger link cable 2 x 1.5 mm INSTALLATION MANUAL...
  • Page 30 4- TECHNICAL SPECIFICATIONS SET SINGLE-PHASE METER 11,2 30 mm 17.5 mm 41.1 mm 41,1 63.9 mm 4.3 mm *Images taken from the corresponding Iskra manuals TECHNICAL SPECIFICATIONS (Three-phase energy meter - WM1M6) Mechanical Dimensions (mm) 36 x 90 x 64 Mounting DIN rail Electrical...
  • Page 31 4- TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS (Smart gateway - SG-E1) Mechanical Dimensions (mm) 17.5 x 95.4 x 68.2 Mounting DIN rail Electrical Power supply Single-phase (P+N)) Voltage 85 - 265 V AC Cable gauge 0.5 - 3 mm Communications Link to WM1M6 Infrared Ethernet connector RJ45...
  • Page 32 4- TECHNICAL SPECIFICATIONS THREE-PHASE METER SET 4.3 mm 30 mm 52.5 mm 15.5 mm 33.3 mm 48.2 mm 17.5 mm 30 mm 41.1 mm 41,1 63.9 mm 4.3 mm *Images taken from the corresponding Iskra manuals TECHNICAL SPECIFICATIONS (Three-phase energy meter - IE38MD) Mechanical Dimensions (mm) 52.5 x 96.4 x 68.2...
  • Page 33 4- TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS (Smart gateway - SG-E1) Mechanical Dimensions (mm) 17.5 x 95.4 x 68.2 Mounting DIN rail Electrical Power supply Single-phase (P+N) Voltage 85 - 265 V AC Cable gauge 0.5 - 3 mm Communications Link to IE38MD meter Infrared Ethernet connector RJ45...
  • Page 34 VELTIUM Smart Chargers, S.L. Parque Tecnológico de Álava c/ Albert Einstein, 30 01510 Vitoria – Spain Tel: +34 945 297 271 Email: info@veltium.com www.veltium.com...
