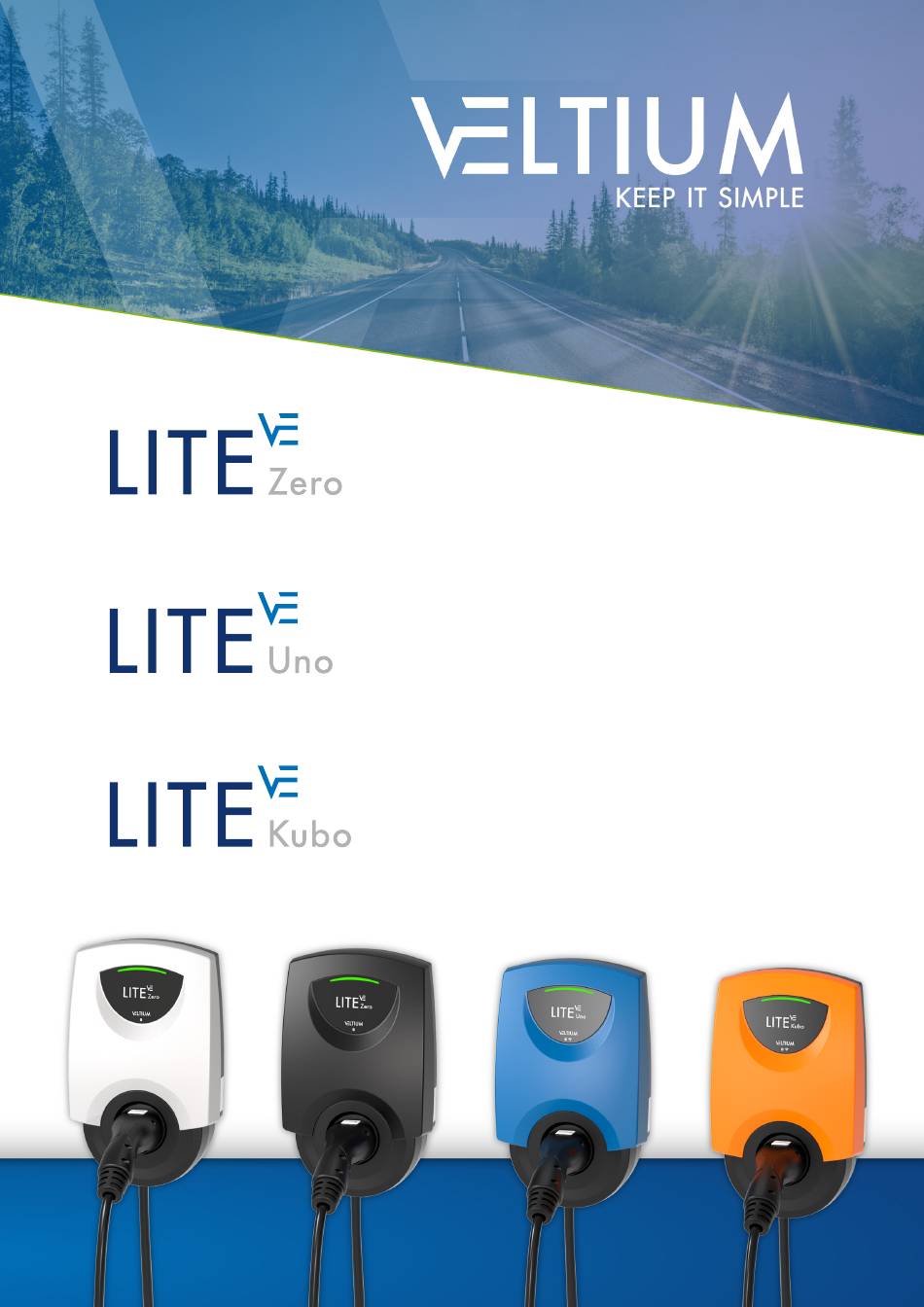

- Page 1 INSTALLATION MANUAL V.1.02...
-
Page 2: Table Of Contents
IDENTIFICATION OF THE CHARGER OPTIONAL ACCESSORIES ELEMENTS INCLUDED IN THE PACKAGING REQUIRED TOOLS INSTALLATION INSTALLATION OF THE LITE ZERO/UNO/KUBO CHARGER INSTALLATION INSTALLATION OF THE STAND ELEMENT INSTALLATION OF THE SIM CARD INSTALLATION OF THE CURVE DEVICE INSTALLATION OF THE THREE-PHASE METER SET... -
Page 3: Welcome
2 years from the date of purchase. During this period, VELTIUM will repair or replace any defective product. In the event of repair or replacement, the warranty period for the new items will be the time remaining for the other original parts, or 6 months, whichever is longest. -
Page 4: Safety Measures
WELCOME SAFETY MEASURES The charger must only be installed by qualified personnel following applicable local regulations. • Use the unit within the parameters and conditions specified at “TECHNICAL SPECIFICATIONS” • Visually inspect the unit prior to installation. Contact the distributor in the event of detecting faults, breakages, dirt or humidity. -
Page 5: Before Starting
BEFORE STARTING IDENTIFICATION OF THE CHARGER The charger model is visible on its cover (LITE Zero, Uno or Kubo). The charger also comes with a label on the side indicating its model. INSTALLATION MANUAL... -
Page 6: Optional Accessories
BEFORE STARTING ELEMENTS INCLUDED IN THE PACKAGING ELEMENT QUANTITY LITE Zero, Uno, Kubo LITE Charger Bushing 4.8x38 screw 4.8x90 screw SX8x40 wall plug Blind grommet Hollow crimp ferrule for 6 mm cables 3 (Zero, Uno) - 5 (Kubo) Spare ACCESS CODE label... -
Page 7: Required Tools
BEFORE STARTING REQUIRED TOOLS LITE (Zero, Uno, Kubo) Drill 8 mm bit Phillips PH2 screwdriver Hammer Pencil or marker STAND Spanner 4 mm Allen or hex key CURVE 3.2 mm flathead screwdriver THREE-PHASE METER SET Phillips PH2 screwdriver INSTALLATION MANUAL... -
Page 8: Installation
INSTALLATION INSTALLATION INSTALLATION OF THE LITE ZERO/UNO/KUBO CHARGER CHECK THAT THE POWER SUPPLY IS DISCONNECTED Make sure that the power supply is disconnected at the charger point of installation. CHECK THE CONNECTIONS Check that the electrical wiring required to power the charger is available at the point of installation. - Page 9 INSTALLATION PLACE THE TEMPLATE Place the template in the desired position, approximately 1.2 m from the horizontal reference to the ground. We recommend that you use a spirit level to ensure that the template is perfectly level. Connector height 1.2 m Ground INSTALLATION MANUAL...
- Page 10 2. Cut and strip the cables to the recommended length. 3. Fit the ferrules. Always use an appropriate tool (crimper) to avoid poor connections likely to cause overheating in the connection terminals. Lite Zero/Uno Lite Kubo 25 cm 25 cm...
- Page 11 INSTALLATION PREPARE THE CHARGER INSTALLATION 1. Mark the holes to be made. 2. Drill the holes. 3. Fit the wall plugs. 8 mm FIT THE UPPER SCREW Insert the screw of the upper part and tighten it into the bushing as far as it will go. In the case of the STAND, use the screws supplied with it in the packaging.
- Page 12 CONNECT THE CHARGER Connect the electric terminals of the power cable to the corresponding points on the charger. Make sure that all screws are securely tightened for effective contact of the conductor’s active elements. LITE Zero/Uno LITE Kubo Neutral Neutral Phase 1...
-
Page 13: Installation
INSTALLATION OPTIONAL: INSTALLATION OF THE CURVE DEVICE (ZERO/UNO) In the event of having to install the CURVE device, see “INSTALLATION OF THE CURVE DEVICE ”. OPTIONAL: INSTALLATION OF THE THREE-PHASE METER SET (UNO/KUBO) In the event of having to install the THREE-PHASE METER SET, see “INSTALLATION OF THE THREE-PHASE METER SET ”. - Page 14 INSTALLATION FIX THE CHARGER TO THE WALL FRONTAL 1. Fit the three screws on the lower part of the charger and tighten them firmly. 2. Fit the caps to cover the three screws. Wall mounting: 4.8x90 screw STAND assembly: M5x70 screw INSTALL THE CHARGING CABLE SUPPORT 1.
- Page 15 INSTALLATION 4. Fit the screws SUPPLY POWER TO THE CHARGER Close the element that cuts off the electrical circuit powering the charger. INSTALLATION MANUAL...
-
Page 16: Installation Of The Stand Element
INSTALLATION INSTALLATION OF THE STAND ELEMENT 1. Prepare the ground anchors for the STAND element according to the figure, always using M12 components. 20.5 cm 15.5 cm 2. Remove the top part of the STAND element in order to access the hollow interior. INSTALLATION MANUAL... - Page 17 INSTALLATION 3. Place the STAND element next to the cable outlet on the ground, and pass the power supply cables and the auxiliary wiring (for connecting other devices) through the hollow interior from the bottom until they can be pulled out through the corresponding grommet.
- Page 18 INSTALLATION 5. Mount the charger onto the STAND element. Follow points 9 to 13 of the charger assembly instructions. The fasteners to be used in this case must be those provided with the STAND element, and not those supplied with the charger. Given that in this case the power supply does not come through the side of the charger, this access must be covered using the blind grommet provided with the charger.
-
Page 19: Installation Of The Sim Card
INSTALLATION INSTALLATION OF THE SIM CARD 1. Remove the 6 screws joining the front and rear parts of the casing using the torx head screwdriver, size T20. Remove the front cover. 2. Identify in the SIM card slot on the charger circuit board. 3. -
Page 20: Installation Of The Curve Device
INSTALLATION INSTALLATION OF THE CURVE DEVICE The CURVE device is designed for use with the LITE Zero/Uno charger. 1. Select the circuit onto which you want to install the CURVE device. At the meter outlet In the home circuit PANEL... - Page 21 5. Strip 8 mm from each wire of the cable and connect it to the terminals of the CURVE device. 6. Strip 8 mm from each wire of the cable and connect the CURVE device to the charger in the pins indicated. LITE Zero LITE Uno INSTALLATION MANUAL...
-
Page 22: Installation Of The Three-Phase Meter Set
INSTALLATION INSTALLATION OF THE THREE-PHASE METER SET The THREE-PHASE METER SET is made up of two elements: a three-phase energy meter and a smart gateway. 1. Select the circuit onto which you wish to install the THREE-PHASE METER SET. At the meter outlet In the home circuit ENERGY PANEL... - Page 23 INSTALLATION 5. Prepare the wiring between the three-phase energy meter and the smart gateway (stripping 6 mm from the ends of the wires going into the latter), place the power and neutral cable contacts in the smart gateway and tighten the screws. Phase 1 Phase 2 Phase 3...
- Page 24 INSTALLATION 6. Run an Ethernet cable with RJ45 connectors on both ends and connect it to both the smart gateway and the charger. Connect it to either of the charger’s two RJ45 sockets. LITE Uno LITE Kubo INSTALLATION MANUAL...
-
Page 25: Connection Of The Charger To Another Charger, Or To A Communications Element
INSTALLATION CONNECTION OF THE CHARGER TO ANOTHER CHARGER, OR TO A COMMUNICATIONS ELEMENT The LITE Uno and Kubo models have two local network sockets which permit, as well as connection to a THREE-PHASE METER SET (see “INSTALLATION OF THE THREE- PHASE METER SET”), the following: •... -
Page 26: Technical Specifications
LITE Zero LITE Uno LITE Kubo Functional Standard and charging mode IEC 61851-1 Ed 3.0 Mode 3 User interface VELTIUM App and Customer Area of the www.veltium.com website Status indication Multicolour LED Consumption measurement Integrated counter with direct metering • Free Access control •... - Page 27 TECHNICAL SPECIFICATIONS LITE Zero LITE Uno LITE Kubo Communications Bluetooth BLE 4.2 Wi-fi Ethernet 2 x RJ45 Modem LTE (optional) Mechanical Material Flame retardant PC/ASA (V0) • Wall Anchor type • Floor with STAND accessory Height (mm) Width (mm) Depth (mm) Weight (including 5m/7m charging cable) 3.75 kg/4.35 kg...
- Page 28 TECHNICAL SPECIFICATIONS DIMENSIONS INSTALLATION MANUAL...
-
Page 29: Accessories
TECHNICAL SPECIFICATIONS ACCESSORIES STAND 1400 1400 TECHNICAL SPECIFICATIONS Functional Number of single STAND chargers Number of double STAND chargers Mechanical Material Lacquered steel Single STAND dimensions (mm) 1400 x 283 x 240 Double STAND dimensions (mm) 1400 x 310 x 350 Single STAND weight 25 kg Double STAND weight... - Page 30 TECHNICAL SPECIFICATIONS CURVE TECHNICAL SPECIFICATIONS Electrical Maximum current to be measured 63 A Mechanical Dimensions (mm) 48 x 57 x 27 Material PC/ABS V0 Maximum cable gauge to be measured 25 mm Communication cable with the charger 2 x 1.5 mm INSTALLATION MANUAL...
- Page 31 TECHNICAL SPECIFICATIONS THREE-PHASE METER SET *Images taken from the corresponding Iskra manuals TECHNICAL SPECIFICATIONS (Three-phase energy meter - IE38MD) Mechanical Dimensions (mm) 52.5 x 96.4 x 68.2 Assembly DIN rail Electrical Power supply Three-phase (3F+N) Maximum current 80 A Voltage 3 x 400 V AC Frequency 50 and 60 Hz...
- Page 32 TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS (Smart gateway - SG-E1) Mechanical Dimensions 17.5 x 95.4 x 68.2 Assembly DIN rail to the right of the IE38MD Electrical Power supply Single-phase (F+N) Voltage 85-265 V AC Cable gauge 0.5-3 mm2 Communications Connection with IE38MD meter Infrared Ethernet connector RJ45...
- Page 33 VELTIUM Smart Chargers, S.L. Parque Tecnológico de Álava c/ Albert Einstein, 30 01510 Vitoria – Spain Tel: +34 945 297 271 Email: info@veltium.com www.veltium.com...
