Summary of Contents for Global Water FC220

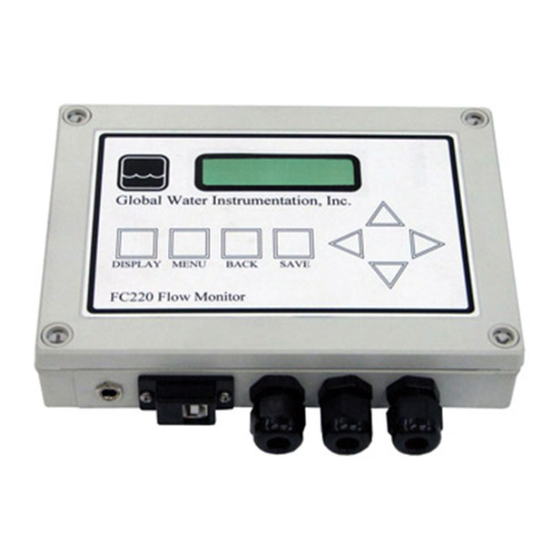

- Page 1 Global Water 800-876-1172 • globalw.com Global Water Instrumentation, Inc. 11390 Amalgam Way Gold River, CA 95670 T: 800-876-1172 Int’l: (916) 638-3429, F: (916) 638-3270 globalw@globalw.com FC220 Flow Monitor 02-056 10/14/10 - 1 -...
-
Page 2: Table Of Contents
Global Water 800-876-1172 • globalw.com Congratulations on your purchase of the Global Water FC220 Flow Monitor. This instrument has been quality tested and approved for providing accurate and reliable measurements. We are confident that you will find the monitor to be a valuable asset for your application. Should you require assistance, our technical staff will be happy to help. - Page 3 A 16-character name can be programmed into the FC220 by the user to identify the installation site or show other information about the configuration.
- Page 4 Note: The FC220 flow monitor requires a level sensor to operate. Two and three wire level sensors with 4-20mA, 0-5 volt and 0-1 volt outputs are supported. A sensor is not supplied with the FC220, contact Global Water for more information on available sensors.
-
Page 5: Fc220 Specifications
Global Water 800-876-1172 • globalw.com FC220 Specifications: Power Requirements: 12VDC or 18-24VDC Input, +/-10% Supply Current: 13mA + Sensor Current + Backlight + 4-20mA Output 150mA Maximum Total Current Backlight Current: 23mA when on Internal Fuse: 315mA Power Adaptor: 18VDC Universal Power Supply, 90-220VAC Input Equation Formats: Manning’s Equation for Round Pipes... -
Page 6: Flow Calculation Modes
Flow Equation: There are standard flow equation parameters for over 40 flumes and weirs stored in the FC220. The user also has the ability to enter their own parameters for the flow equation in the form of: Q = A * (B+Ch)^D... - Page 7 FC220. This is a factory programmable option only. Data for this table must be provided to Global Water in two columns and no more than 200 lines. The first column is water level in feet and the second column is the flow in cubic feet per second at that water level.
-
Page 8: Switch Settings
800-876-1172 • globalw.com Switch Settings Inside the FC220 is a bank of 8 switches which are used to select the sensor type and power input. Select the switches as follows: Select only one of SW1 and SW2, leave the other switch off... -
Page 9: Sensor Input
12 volt supply, or directly from the 18-24 volt input. The power can also be connected continuously or it can be set to be turned on and off by the FC220 when using power saving mode. In this mode the sensor is turned on at user defined intervals for a programmable warm-up time, then turned off again to conserve power. -
Page 10: Power Saving Mode
Global Water 800-876-1172 • globalw.com VIII. Power Saving Mode A power saving mode is provided that allows the operating current to be reduced in remote monitoring applications. One way this is accomplished is to turn off the LCD display backlight, this saves about 20mA of current. Three modes allow the user to turn the backlight on all the time, off all the time, or turn it on for one minute only. -
Page 11: Programming Setup Parameters
4 digits in the range of 0000-9999. When shipped from the factory the default password is 1234. It is recommended that the password be changed before installing the FC220. If the password is lost or forgotten, contact the Technical Support department at Global Water. - Page 12 Global Water 800-876-1172 • globalw.com Set Volume Unit: This unit is used to display the totalizer volume on the main display. The current setting is shown in the Set Volume Unit menu. Use the RIGHT arrow to change the volume units. Use Up and DOWN to select either Cubic Feet, Gallons, Million Gallons, Cubic Meters, or Liters.
- Page 13 Use UP and DOWN to adjust the output until the current meter reads exactly 20.000mA. The Calibrate Logger menu is used to recalibrate the FC220 data logger option only and will be discussed in the section titled Data Logger Option and in the Data Logger Option software manual.
- Page 14 Global Water 800-876-1172 • globalw.com Set Site Info: The Site Info menu is where the type of flow monitor calculation is defined. A 16 character site name or label can also be added for reference. The current site name is shown in the Set Site Info menu.
- Page 15 The lookup table and table name are factory programmable only. A name of up to 16-characters, and lookup table data must be supplied. For more information contact the Technical Support department at Global Water. - 15 -...
- Page 16 Global Water 800-876-1172 • globalw.com Power Saving Mode: The power saving mode allows the average power consumption to be reduced by controlling the time when the water level sensor and LCD backlight are turned on. To set the power saving parameters, press the RIGHT arrow button. The LCD Backlight...
-
Page 17: Data Logger Option
XII. Data Logger Option A factory option for the FC220 is an internal data logger which records a historical record of water flow, and records the exact time of each relay pulse. Channel one of the data logger records flow and channel two records relay events. -
Page 18: Maintenance And Troubleshooting
3-4 years, more often in harsh environments or when the battery is allowed to be completely discharged. Trouble Shooting d. Verify that the power source is supplying correct voltage to the FC220 and to the sensor. e. Make sure that the vent tube has not been kinked or sealed. The sensor uses this tube to compensate for barometric pressure changes. - Page 19 24 hours to dry the inside of the cable. Other issues a. Call Global Water for tech support: 800-876-1172 or 916-638-3429 (many problems can be solved over the phone). Fax: 916-638-3270 or Email: globalw@globalw.com.
- Page 20 Global Water’s obligations under this warranty are limited to, at Global Water’s option: (I) replacing or (II) repairing; any products determined to be defective. In no case shall Global Water’s liability exceed the products original purchase price. This warranty does not apply to any equipment that has been repaired or altered, except by Global Water Instrumentation, Inc., or which has been subject to...
-
Page 21: Appendix A: Terminal Strip Diagram
Global Water 800-876-1172 • globalw.com XIV. Appendix A: Terminal Strip Diagram POWER IN: 12VDC or 18-24VDC Input 12VDC or 18-24VDC Input 12VDC Input: SW7 OFF, SW8 ON 18-24VDC Input: SW7 ON, SW8 OFF Power Supply and System Ground Power Supply and System Ground... -
Page 22: Appendix B: Flume And Weir Equation Parameters
Global Water 800-876-1172 • globalw.com XV: Appendix B: Flume and Weir Equation Parameters EQ Type: 1 = Flow 2 = Poly Q=A*(B+Ch)^D Q=A+Bh+Ch^2+Dh^3 Flumes EQ Type 0.5 H Flume 1.600 0.000000 2.200 0.75 H Flume 1.770 0.000000 2.230 1.0 H Flume 1.950... - Page 23 Global Water 800-876-1172 • globalw.com Weirs EQ Type 1.0' Rectangular 3.333 0.000000 1.500 2.0' Rectangular 6.667 0.000000 1.500 3.0' Rectangular 10.000 0.000000 1.500 22.5º V-Notch 0.505 0.000000 2.500 30º V-Notch 0.676 0.000000 2.500 45º V-Notch 1.028 0.000000 2.500 60º V-Notch 1.420...
