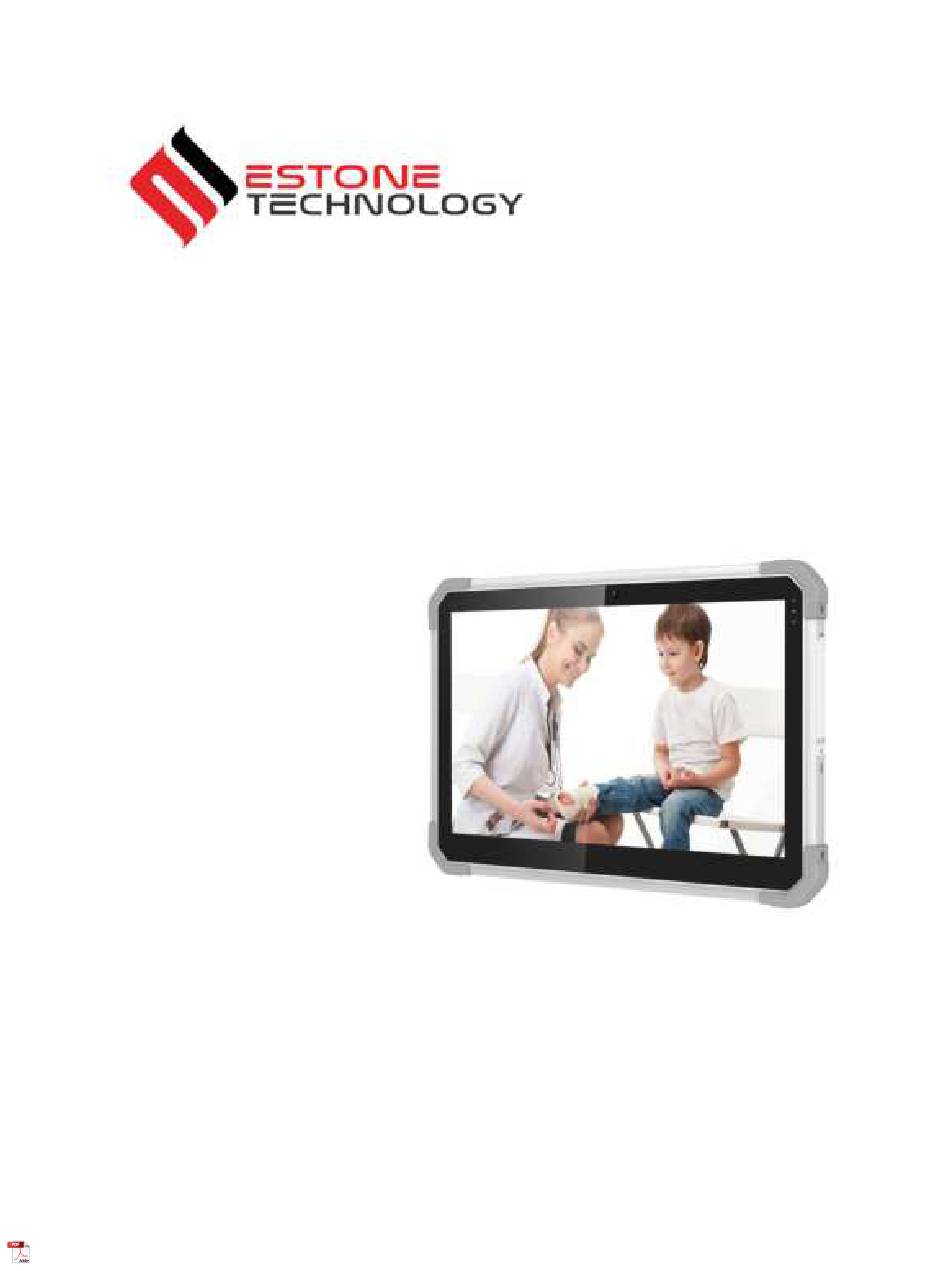

- Page 1 User’s Manual MD-150...
- Page 2 Version 1.0 06/2022 All rights reserved. Copyright © …. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form, by any means (electronic, photocopying, recording, or otherwise) without the prior written permission of the publisher. Copyright protection claimed includes all forms and matters of copyrightable material and information allowed by statutory or judicial law or hereafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as screen displays, menus, etc.
-
Page 3: Table Of Contents
Table of Contents Contents Table of Contents ................................3 Introduction ..................................4 Explanation of Advisements ..........................4 Symbols andMarkings ............................5 2. Exploring Your Device ..............................6 Package Contents ..............................6 Device Layout ..................................7 Front View ................................7 Left-side View ............................... 7 Top View ................................ -
Page 4: Introduction
MD-150 is a rugged tablet intended for medical/commercial uses. MD-150 can handle any type of medical matter with IEC certified rugged medical tablet, this mobile health solution tablet features unique tools such as built-in barcode scanners, RFID, WiFi, Bluetooth , the hospital staffs, such as doctors, nurses, administration staffs, can use the device in medical treatment offices, pharmacies, medical billing or records keeping companies, dentists, and home health care professionals. -
Page 5: Explanation Of Advisements
The Note symbol is used for notifying the user of something important or of something that needs special attention. TheCautionsymbolisusedtoinformofsomethingthatcouldcauseharmto,ormalfunctionof,theequipment. TheWarningsymbolisusedtoinformofsomethinginwhichthereisaconceivableriskofharmtotheuserifthe Warning is ignored. Symbols andMarkings This section provides information about the symbols that are used on the MD-150, its accessories, or packaging. Symbol or Markings Description Power On/Off Indicator Dispose of in accordance with your country's requirements. -
Page 6: Exploring Your Device
2. Exploring Your Device Package Contents In addition to the primary tablet unit, your product carton should contain all of the below items. MD-150 Tablet PC Packing Contents 适配器图片不对 AC Adapter AC Power Cord Battery Pack Stylus Tether Documents Packing Lists, etc.. -
Page 7: Device Layout
Device Layout Front View Item Component Description Audio Recording Device Light Sensor Provides Automatic Adjustment of Screen Brightness for Various Lighting Conditions Front Camera Record Still and Video Images – 2 MP Charge LED White light Blink – Battery Charging Indicator Solid Green –... -
Page 8: Top View
Item Components Description Cooling Hole The hole can coll down the machine Type-C Connect mobile phone,computer and other devices USB 3.0 Connect any external USB device or storage volume. RJ45 Port 10/100/1000 MB network port Headphones Connect headphones, speakers, or another external audio device. -
Page 9: Rear View
Position Components Description DC in Direct current (DC) power for charging/using the tablet. USB 2.0 Connect any external USB device or storage volume. Rear View Position Components Description Extended Module Serve more module service (optional) Pogo Pin The connection between mobile phone antenna, mobile phone battery and mobile phone motherboard LED Flash Flash light of LED... -
Page 10: Managing Device Power
4. Managing Device Power AC adapter The AC adapter accepts 100-240VAC Input. A standard US polarized, grounded three-pin plug adapter is included. International plug AC adapters are available for certain regions. Use only the AC adapter included with your Tablet PC. Using other AC adapters may damage the device. -
Page 11: Battery Pack
For battery storage and charging temperatures, see Section 8: Safety Checking the Battery Level To check the battery charge level of the MD-150, you may use the battery monitor within Windows operating system or the voltage gauge of hot swappable battery pack. -
Page 12: Hot Swapping The Battery Pack
Hot Swapping the Battery Pack The MD-150 Tablet PC battery can be replaced without shutting down the tablet or interrupting your work, by use of the built-in battery. The built-in battery can sustain power for up to 10 minutes, during which period the swappable battery must be changed to prevent loss of function. -
Page 13: Internal Battery
Internal Battery The internal battery is not user-replaceable and is not visible to the operating system. It never functions as the power source as long as the hot swappable battery pack is installed. It enables the hot-swapping function, since it provides power only when the battery pack is removed. The internal battery should not be used to power the tablet during regular operation. -
Page 14: Using Optional Features
See Chapter 6: eController App and its Applications. Using the Digitizer Pen MD-150 Tablet offers either a standard, passive stylus (Digitizer Pen) or an active stylus. Standard stylus The standard stylus can be used for writing and selecting elements on the screen. The active stylus works together with a specialized touch sensor panel to support functions like Double Click, Palm Reject, Hover, Accurate Drawing, Legal Signatures, and other special functions. -
Page 15: Product Care
Temperature & Humidity General Use - Operating temperature The MD-150 is best kept in dry conditions at room temperature. The recommended range for temperature and the humidity value for the device is as follows: Ambient temperature: 0℃ to 35℃ (32℉ to 95℉) ... - Page 16 Temperature Due to use in direct sunshine or in any other hot environment the MD-150 device may have hot surfaces. There is a built-in temperature sensor that monitors the temperature. If the sensor detects high internal temperature, the device will automatically trigger a Windows Shut Down or Hibernate (depending on Windows Power Button configuration).
-
Page 17: Trouble Shooting
Software Using an antivirus program is strongly recommended. Software other than that which is pre-installed on the MD-150 is installed at the user's own risk. External software could cause the MD-150 to malfunction and might not be covered by the warranty. - Page 18 Before cleaning the device,shut it down and unplug all cables. Use a soft, slightly damp lint-free cloth. Avoid getting moisture in openings on the device. Don’t use window cleaners, household cleaners, aerosol sprays, solvents, alcohol, or abrasives to clean the device. Disposing of the Device Do not dispose of the device in general household or office waste.
-
Page 19: Appendix A Technical Specifications
Appendix A Technical Specifications IP Rating IP-23 Waterproof Drop: 43FT drop resistant on 4 corners to plywood (MIL-STD-810G) Shock resistant: MIL-STD-810G, method 516.6, procedure I ESD Protection: 4KV touch, 8KV air Ultra-LCD protection (Option) Processor Intel 11Gen Tiger Lake i7-1165G7 4 Cores, 8 threads, 12M Intel smart cache max turbo to 4.7GHz Intel 11Gen Tiger Lake i5-1135G7... - Page 20 Option: 8MP rear camera WiFi Support WIFI6 802.11 a/b/g/n/ax support 2.4G&5G Bluetooth Bluetooth 5.2 4G LTE (option) Accept most 4G LTE module in M2 Interface Sierra EM7455 4G LTE Module 4G: Cat-6, Frequency Bands: B1-B5,B7,B8,B12,B13,B20,B25, B26, B29, B30, B41 3G: HSPA+, UMTS, Frequency Bands: B1, B2, B3, B4, B5, B8 CE, FCC, GCF, IC, NCC, PTCRB Verizon, Sprint, AT&T certified UBlox NEO-M10...
-
Page 21: Appendix B Compliance Information
1x RJ-45 ethernet port, 10/100/1000MB 1x HDMI Type A Handle Plastic handle Charging station 4 in 1 battery charger Appendix B Compliance Information B1 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 22: B5 Directives And Standards
In order to maintain compliance as a Class 1 Medical device, the switches that are used in combination with the MD-150 device must fulfill the isolation requirements of IEC/EN 60601-1 based on 15 VDC. They must be electrically floating switches (switches that are not grounded).
