Plasma and oxy fuel torch height control for sheet metal cutting machines height sensor & controller

Advertisement

Quick Links

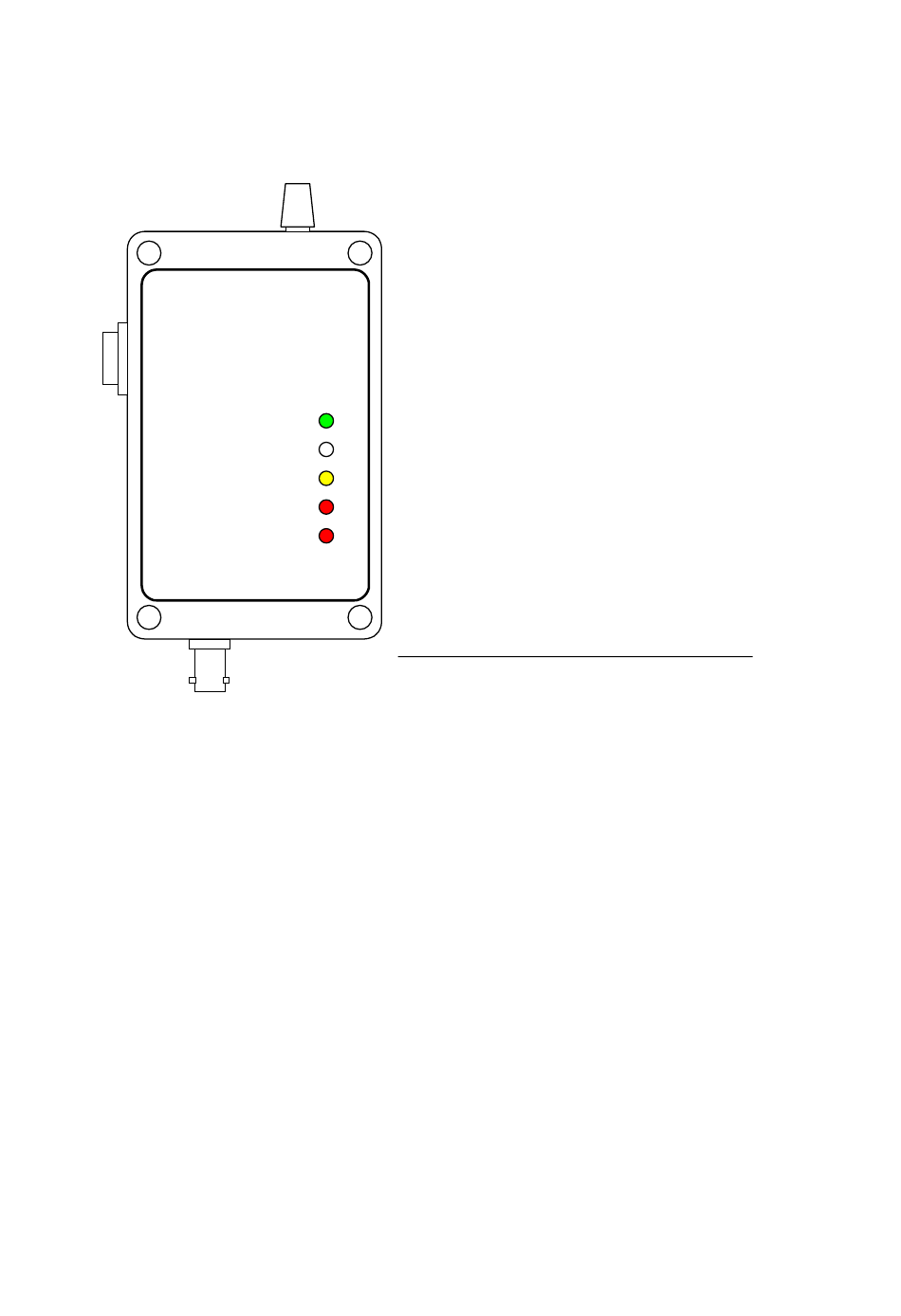

6 PIN
INTERFACE
CONNECTOR
BNC
SENSOR
CONNECTOR
The all outputs are at normally low, 15V level during in active and drive up to 15mA.. These
outputs can directly drive LED or Opto Coupler. Touch output can be adjusted internal
trimpot as a minimum height. It allows NULLING the height, if such feature required.
The diecast box must be grounded. Usually the sensor is bolted to the housing of torch lifter
and must be connected via thick wire 10mm² to System Ground to have a sufficient ground
connection. Use STAR type grounding.
HEIGHT
CONTROL
KNOB
CAP 04

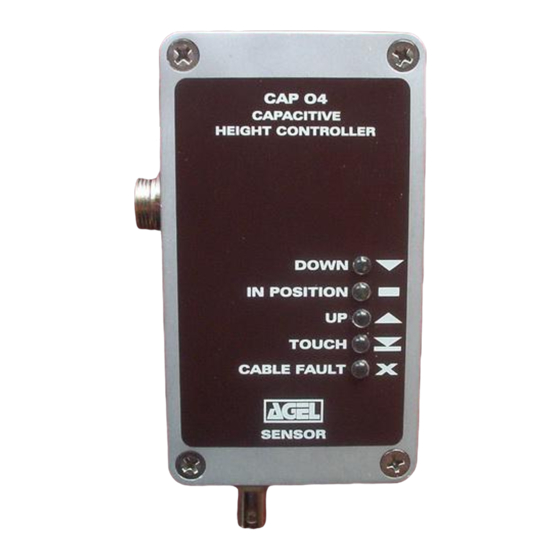

CAPACITIVE HEIGHT
CONTROLLER
DOWN
IN POSITION
UP
TOUCH
CABLE FAULT
Agelkom CAP04 Manual
AGELKOM CAP04
Plasma and Oxy Fuel Torch height control
for sheet metal cutting machines
Height Sensor & Controller

Description:

SENSOR RING:
The metal sensor ring is connected to the CAP04 via a 90
cm long 75 ohms low capacitance coaxial cable. There is
a 2 size for Sensor Ring. The Plasma Ring ID is 34 mm
and OD is 47 mm. Sensing height of the ring should be
between 1,5 to 10 mm above the plate. The Fuel Ring ID
is 50 mm and OD is 69 mm . Sensing height of the oxy
ring should be between 7 to 35 mm above the plate The
ring must be insulated from all conductive parts of the
cutting torch.
ELECTRONICS:
The connection of supply and outputs to the CAP04 is via
6 core screened cable. Connector can accept cable up to
6.5 mm OD diameter. The supply is nominal 24VDC and
the consumption current is less than 150mA.
Do not use same power supply with motors.
1
