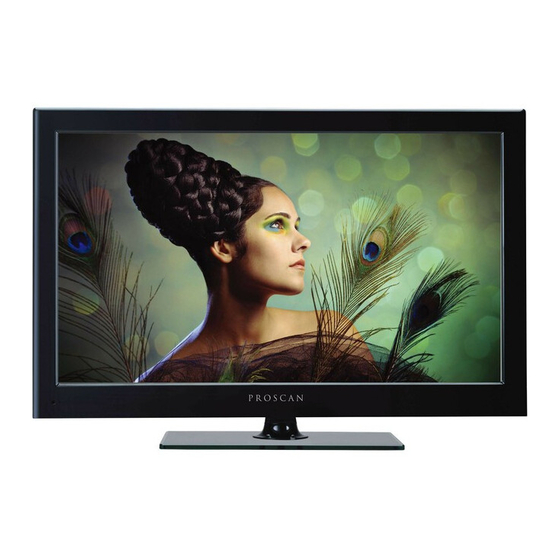

  • Page 1 All manuals and user guides at all-guides.com LED TV PLED4274A-B...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Caution Important Safety Precautions Wall Mount In Stallation TV Bracket assembly Top/Side panel diagram Remote Controller Battery Installation Using the Remote Control Install TV Set your TV Connect Antenna and power Turn On TV 10-11 Select Input Source...

  • Page 3: Caution

    All manuals and user guides at all-guides.com Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons.

  • Page 4: Important Safety Precautions

    All manuals and user guides at all-guides.com Caution: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.2 19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). 20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

  • Page 5: Wall Mount In Stallation

    All manuals and user guides at all-guides.com 3.95” x 3.95” 7.87” 7.87”...

  • Page 6: Tv Bracket Assembly

    All manuals and user guides at all-guides.com TV Bracket assembly STAND POLE STAND POLE STAND POLE (PWB4*10)
  • Page 7 All manuals and user guides at all-guides.com Top panel diagram (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED Indicator: Press to turn on and off Indicator on(Red) Standby mode Indicator on(Green) Power on mode The functions of the buttons on the are as follows: VOL+ CH+/-:When watching TV: select channels.

  • Page 8: Top/Side Panel Diagram

    All manuals and user guides at all-guides.com Side panel diagram OUTPUT COAXIAL (Left Side) Service Po rt HDMI2 HDMI3 HDMI1 (Back Side) Name Function Description AV INPUT Digital Audio Output COAXIAL YPbPr Connect to the composite terminal of your DVD/VCR Audio Output Audio Out R/L EARPHONE...

  • Page 9: Remote Controller

    Mon o, or SAP( se co nd au di o pr og ram) . GUIDE: Universal remote code This is the code for remote control of PLED4274A-B,if you want to change to a universal remote control,you can edit this code into your universal remote control. (1)Open the battery compartment cover on the back side (2)Insert two 1.5V batteries of AAA type...

  • Page 10: Install Tv

    All manuals and user guides at all-guides.com 10cm 10cm 10cm side LED TV indicator...
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com...

  • Page 13: Select Input Source

    All manuals and user guides at all-guides.com Select Input Source SOURCE YPBPR HDMI1 HDMI2 HDMI3...

  • Page 14: Picture Menu

    All manuals and user guides at all-guides.com Temperature Color Temperature User User...
  • Page 15 All manuals and user guides at all-guides.com Temperature...

  • Page 16: Sound Menu

    All manuals and user guides at all-guides.com Digital Audio Output...
  • Page 17 All manuals and user guides at all-guides.com Settings User User Digital Audio Output digital...

  • Page 18: Time Menu

    All manuals and user guides at all-guides.com Samoa Auto Clock...

  • Page 19: Setup Menu

    All manuals and user guides at all-guides.com...

  • Page 20: Close Caption

    All manuals and user guides at all-guides.com YPBPR HDMI1 HDMI2 HDMI3...

  • Page 21: Lock Menu

    All manuals and user guides at all-guides.com US Rating Canada Rating...
  • Page 22 All manuals and user guides at all-guides.com US Rat ing in TV mode and when MPAA:This is use to restrict the movie rating(Off/G/PG/PG-13/R/NC-17/X). Canad a Rat ing...

  • Page 23: Channel Menu

    All manuals and user guides at all-guides.com Number channel list...
  • Page 24 All manuals and user guides at all-guides.com Channel list Show channel label. select Number...

  • Page 25: Pc Menu

    All manuals and user guides at all-guides.com SOURCE...
  • Page 26 All manuals and user guides at all-guides.com US Rating,Canada Rating...

  • Page 27: Help

    All manuals and user guides at all-guides.com Help...

  • Page 28: Specifications

    All manuals and user guides at all-guides.com Specifications Resolution 640x480 800X600 1024x768 1360x768 1920x1080 60HZ 60HZ 60HZ 60HZ 60HZ Vertical frequency hz HDMI 576 i/P 720 P 1080 i/P Format 480 i/P 50HZ/60HZ Vertical frequency hz 50HZ 50HZ/60HZ 60HZ Parameter specification Screen Size 42”...
