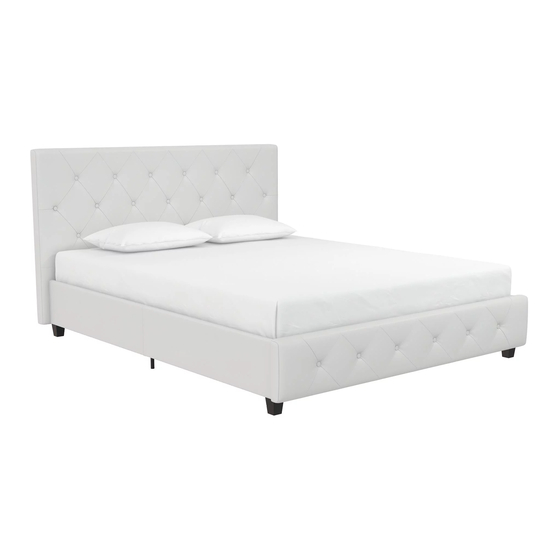

DHP Dakota Faux Leather Queen Bed 4027149 Assembly Instructions Manual

White color, weight limit: 500 lb / 227 kg
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Weight Limit: 500 Lb / 227 Kg
S.D.- 4/1/2017
Dakota Faux Leather Bed
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
4027149
Queen
Lot Number
B34402714903 - 241643 - XL
White
1
