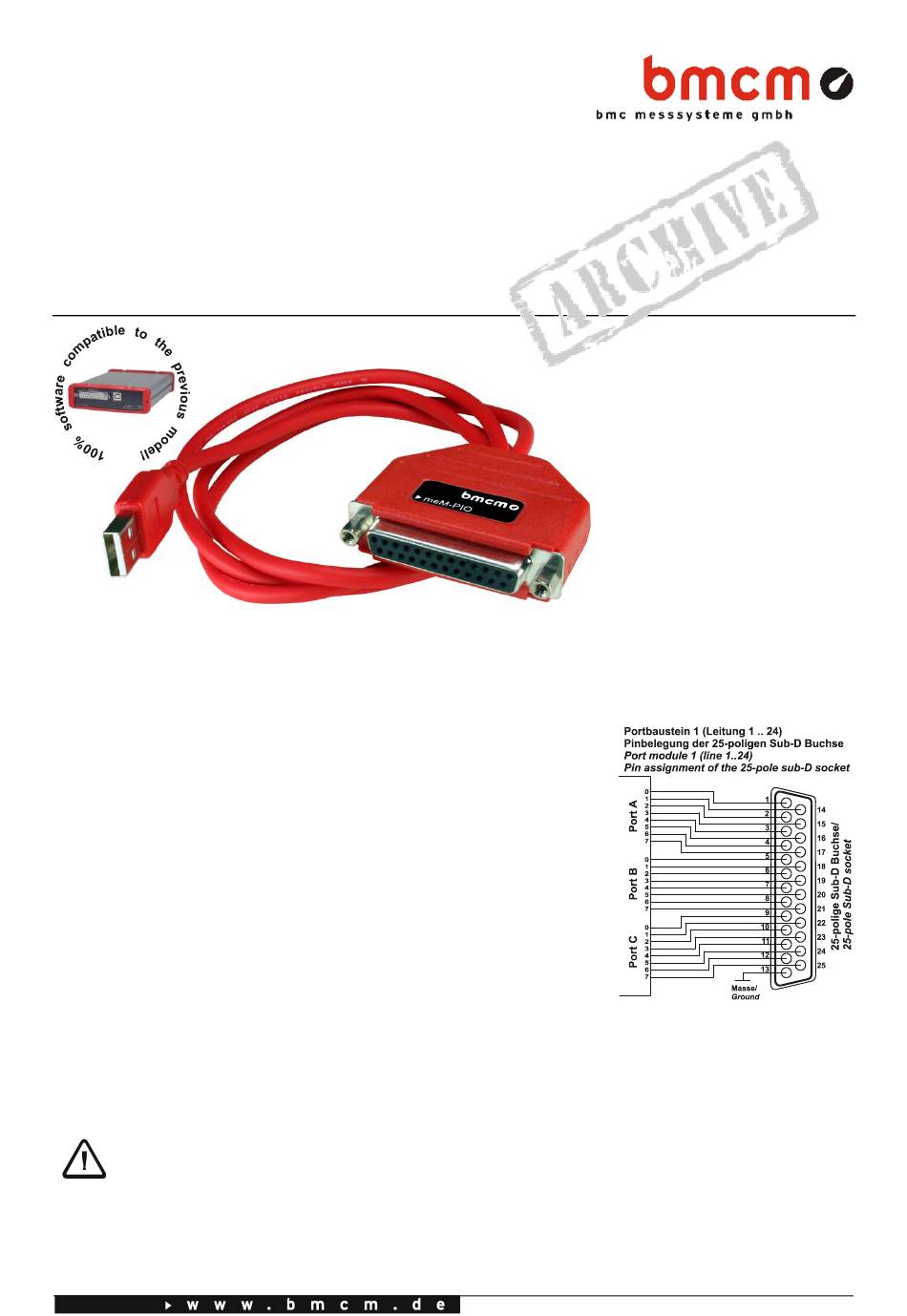

bmcm meM-PIO Manual

meM-PIO
USB miniature external Measurement System
Features
•
24 digital channels with CMOS level
•
connection via USB-interface
•
compatible to USB 2.0 (full-speed)
•
operable under Windows
•
hot-pluggable and Plug&Play
With the creation of the modern
generation of PCs less and less
internal slots are available for
additional cards.

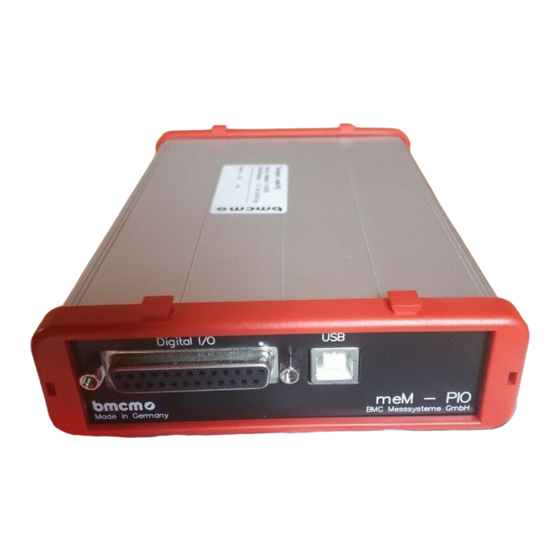

The external meM-PIO provides
an alternative to replace the PIO
cards by BMC Messsysteme
GmbH which used to be integrated
in the computer. This USB-
solution features
... 24 digital channels ...
for the acquisition and control of
TTL-signals.
The USB-device provides for
... three 8 Bit ports ...
Do not apply voltage to the ports without the relevant protective circuit. Two outputs connected
with each other may get damaged by the high flow of current. The high-resistance CMOS-inputs
can continuously switch between 0 and 1 without appropriate protective circuit (e.g. 10kΩ-
Pulldown-resistor).
Applications
• digital controls
• signal acquisition
• ideal for mobile use
®
98/2000/XP
with programmable direction. The
port lines are brought out via a
25pole Sub-D socket.
The device is connected to the PC
and supplied with power by means
of a
... USB-connection ... .
Included with the device is a USB-
driver, ActiveX Controls STR-
meM for Windows
XP, as well as the easy-to-use
operating program ST-meM-PIO
for displaying and controlling
digital signals.
The meM-PIO can be used to-
gether with our powerful software
for the acquisition and processing
of measuring data
version 3.2 and higher. It is avai-
lable in the versions Light, Profes-
sional and Client/Server for Win-
dows
version is included with the delive-
ry.
Please visit our homepage for
additional information and soft-
ware updates:
®
98/Me/ 2000/
®
... NextView /NT...
®
98/Me/2000/XP. A demo
http://www.bmcm.de
