Summary of Contents for TECLOCK SSL-250

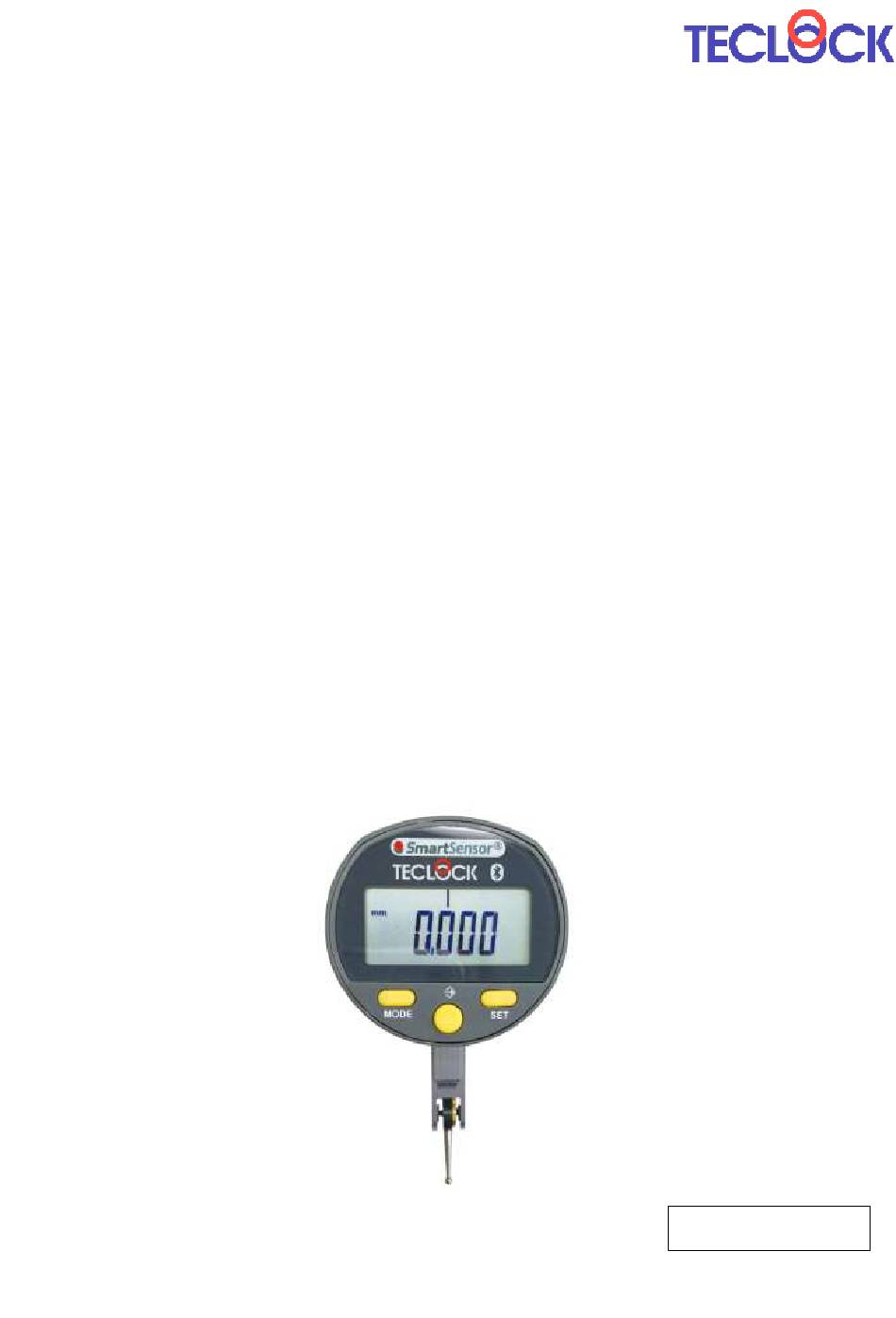

- Page 1 User’s Manual Bluetooth Digital Test Indicator Type : SSL-250/SSL-260/(SSL-350) Features ➢Resolution ：0.001 mm ➢Measuring range ：0.8 mm/2.0 mm ➢Measuring force ：0.15N/0.06N ➢IP protection ：IP54 ➢Ｗｉｒｅｌｅｓｓ Communication ：Ｂｌｕｅｔｏｏｔｈ Q-149-1-E Ver1.3...
- Page 2 ⑫ Multiplication factor ⑥Slot for battery or Power cable ⑬ Hold measured value ⑭ Analog scale range ⑮ Button lock Type L(mm) ⑯ 6 digits display SSL-250 12.5 ⑰ Bluetooth active SSL-260 36.5 ⑱ end data SSL-350 12.5/36.5 ⑲ Analog display...
-
Page 3: Replacing The Battery
★Replacing the battery ★Reference setting ★Linearity error The axis of the measuring insert should be positioned parallel to the surface of the component to minimize the linearity error when measurements are taken (Fig. 1). In case, this requirement cannot be met, the angle α must Set angle og the probe, be determined and the indicator reading multiplied by the corresponding angle correction factor. -
Page 4: Basic Function
3. Basic function : Short press Each short press on gives direct access to the basic functions. Long press ・Assign NORMAL/ MIN/ MAX/DELTA mode dELtA ModE ・Bluetooth ON/OFF ・Reset Pairing mode ・Display the MAC add. rESEt Bluetooth 4. Advanced functions Prolonged pressure (>2s) on gives access to the advanced functions. - Page 5 5. Operation via Bluetooth 5.1. HID mode（External Key board mode） 5.3. Bluetooth configuration ①Set HID mode by Advanced function. Display status Operating mode ②Set BT On mode by Advanced function. Bluetooth disconnected ③Reset Bluetooth mode by Basic function. ④Pairing connection the instrument to the PC. blinkinng Bluetooth advertising （Instrument name：S_Dial TEST HID）...
-
Page 6: Switching Off
6. Favorite key The «favorite» key gives direct access to a predefined function, and can be configured according to the needs of the user. In order to assign a function to the «favorite» key, give a prolonged press on and then select the required function : Note : It is able to set the same mode by serial command. -
Page 7: Serial Communication Commands
10. Serial communication commands Selection and configuration Interrogation Assign measurement direction Measurement direction? CHA+ / CHA- CHA? CHA+:positive sense / CHA-:negative sense Response : CHA+ / CHA- «favourite» function ? FCT0 / FCT1 / … / FCTA / … / FCTF Assign «favourite» function FCT? Response : FCT0～FCTF Assign measurement unit... -
Page 8: Maintenance
11. Specifications Items SSL-250 SSL-260 Stylus length L=12.5 mm L=36.5 mm Measuring range 0.8 mm 2.0 mm Resolution 0.001mm Indication error in forward direction whole range 3 µm 8 µm Repeatability 1 µm 1 µm Rivearsibirity 2 µm 3 µm Measuring force 0.15N±20%... - Page 9 13.Description of Bluetooth module: This module is based on Nordic Semiconductor nRF8001 μBlue Bluetooth Low Energy Platform. The nRF8001 is a single chip transceiver with an embedded baseband protocol engine, suitable for ultra-low power wireless applications conforming to the Bluetooth Low Energy Specification contained within v4.0 of the overall Bluetooth specification.
- Page 10 CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
