Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
PART LIST
Part
Part Desc.
1
Side Panel Left w/Glide
2
Side Panel Right w/Glide
7
Top
8
1st,2nd Row Front Drawer Frame Rail
& Bottom
9
Back Frame Bottom
10
Drawer Head Panel
11
Drawer Back Panel
12
Drawer Side Panel Left with Glide
13
Drawer Side Panel Right with Glide
14
Drawer Bottom Panel 3mm
15
Back Panel
16
Dust Proof Panel
7
15
1
9

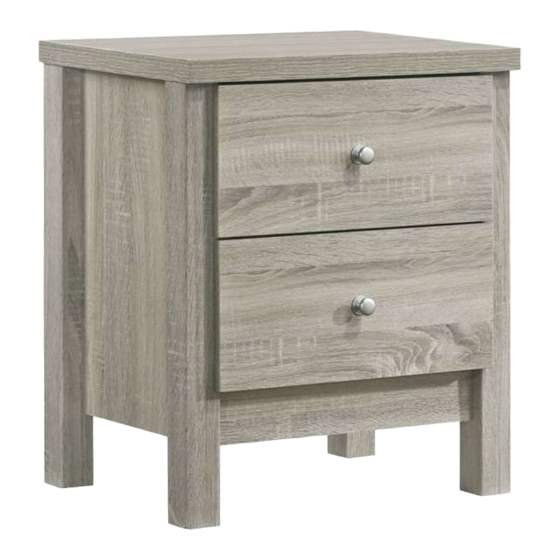

Assembly Instruction For
2-DRAWER NIGHTSTAND
B.10253.NSE / B.10255.NSE
Code
PB.10253.NSSPN1 /
PB.10255.NSSPN1
PB.10253.NSSPN2 /
PB.10255.NSSPN2
PB.10253.NSTOP /
PB.10255.NSTOP
PB.10253.NSDFRL /
PB.10255.NSDFRL
PB.10253.NSFBT /
PB.10255.NSFBT
PB.10253.NSDWHP /
PB.10255.NSDWHP
PB.10253.NSDWBP /
PB.10255.NSDWBP
PB.10253.NSDWSP1 /
PB.10255.NSDWSP1
PB.10253.NSDWSP2 /
PB.10255.NSDWSP2
PB.10253.NSDWBT /
PB.10255.NSDWBT
PB.10253.NSBPN /
PB.10255.NSBPN
PB.10253.NSDPF /
PB.10255.NSDPF
8
2
8
8
12
16
MADE IN MALAYSIA
HARDWARE LIST
Qty
Part
Hardware Desc.
CAM NUT 10mm
1
A
1
B
CAM BOLT
1
C
WOOD DOWEL M6 x 25mm
D
PVC NAIL 5/8"
3
E
CSK SCREW M4 x 30 mm
2
F
CSK SCREW M4 x 38 mm
2
G
HANDLE VK - 317 PVC
2
H
BACKPLY SCREW
2
2
2
2
1
11
13
14
10
PB.10253.CGHW /
PB.10255.CGHW
** WARNING: THE USE OF
POWER TOOLS TO ASSEMBLE
THIS PRODUCT WILL
INVALIDATE ANY CLAIM AND
MAY DAMAGE THIS PRODUCT
MAKING IT UNSAFE.
** You will need a screwdriver and a small mallet
( NOT provided)
Tools You Need:
Philips Head Screwdriver
x 2 sets
Code
Qty
16
16
20
4
2
8
2
10
Soft Head Mallet
Page 1 of 7
Advertisement
Related Manuals for Picket House Furnishings B.10253.NSE
Summary of Contents for Picket House Furnishings B.10253.NSE
- Page 1 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury, therefore, for your protection, please remove any exposed staples used in packing. 1. We recommend that you should assemble this product with the assistance of another person; this will make assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
- Page 2 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE STEP 1: 13 x 2pcs 8 x3pcs 12 x 2pcs 10 x 2pcs STEP 2: Page 2 of 7 MADE IN MALAYSIA...
- Page 3 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE STEP 3: STEP 4: Back Panel Fix From Bottom Page 3 of 7 MADE IN MALAYSIA...
- Page 4 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE STEP 5: Double Side Tape Raw Face Peel Off Double Side Tape Backing Push Panel 16 to the end. STEP 6: x 2 Sets Page 4 of 7 MADE IN MALAYSIA...
- Page 5 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE STEP 7: x 2 Sets STEP 8: x 2 Sets Page 5 of 7 MADE IN MALAYSIA...
- Page 6 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE STEP 9: x 2 Sets STEP 10: Page 6 of 7 MADE IN MALAYSIA...
- Page 7 Assembly Instruction For 2-DRAWER NIGHTSTAND B.10253.NSE / B.10255.NSE COMPLETE Page 7 of 7 MADE IN MALAYSIA...
