HE&M A-1 AIR SAW Quick Start Manual

Hide thumbs Also See for A-1 AIR SAW:

Table of Contents

Download this manual

A-1 AIR SAW

CONTROL PANEL

Table of Contents

Need help?

Do you have a question about the A-1 AIR SAW and is the answer not in the manual?

Page 1 A-1 AIR SAW CONTROL PANEL...

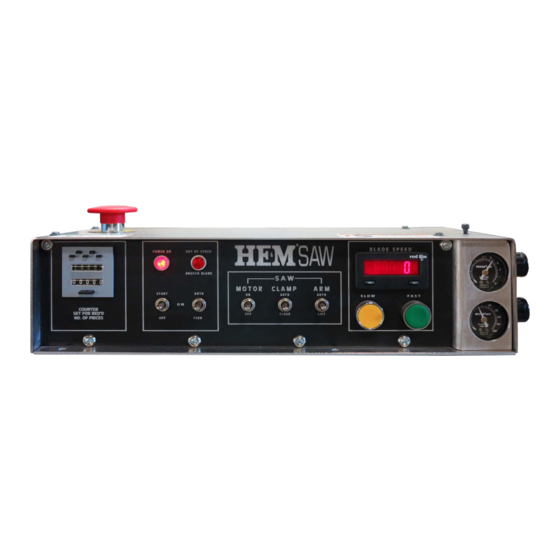

Page 2 A-1 CONTROL PANEL – OVERVIEW SWITCHES Emergency Stop Button The “Emergency Stop” mushroom-head button is located on the top of the control panel. In the event of an emergency, push down on the “Emergency Stop” button to de-energize the control circuit of the saw. This will disable all control operations.
Page 3 Out-of-Stock Indicator The “OUT-OF-STOCK” switch will be triggered if the bar clamp (feed vise) closes without material. When this occurs the saw motor shuts off, the arm will retract and the indicator light will illuminate. To clear the light and resume saw operators press the spring-loaded “POWER”...
Page 4 Motor Switch The “MOTOR” switch has three positions that control the band motor which operates the blade. To manually start the band motor place the Motor switch in the “ON” position. To turn the band motor off place the Motor switch in the “OFF” position. The Motor Switch must be in the “NEUTRAL”...
Page 5 Blade Speed Display The LED read out will display the current speed of the blade in “feet per minute”. NOTE: Be aware that the small buttons under the blade speed read-out are used to program the display. DO NOT TOUCH THESE!! Blade Speed Buttons To increase the blade speed, press the “FAST”...
