INSTALLATION INFORMATION
Recommended Tools
A I R / H A N D R A T C H E T
7 / 1 6 " S O C K E T
TRANSIT CONNECT PARTITION MOUNTING
STANDARD PARTITION MOUNTING
(CAB SIDE)
(CAB SIDE)
Hardware
MOUNTED TO A
MOUNTED TO A
MOUNTED TO A
36" HIGH MODULE
MODULE w/ SPACE SAVIING UPRIGHT
46" HIGH MODULE

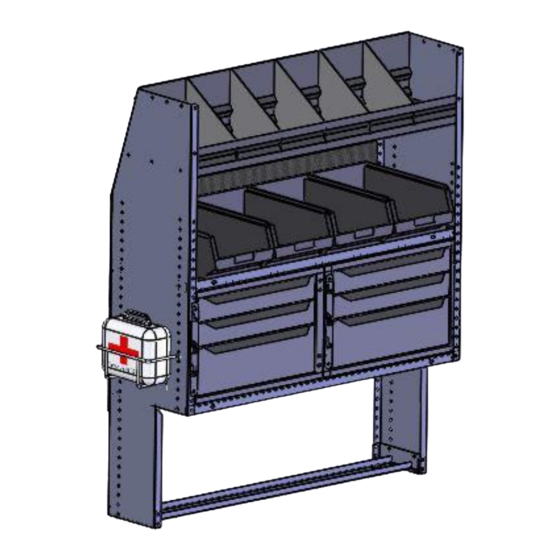

FIRST AID KIT w/ HOLDER
FIRST AID KIT P/N 021782KP and
FIRST AID KIT HOLDER P/N 020122KP
BEFORE INSTALLATION PLEASE REVIEW THIS ENTIRE DOCUMENT,
UNTIL YOU ARE COMPLETELY FAMILIAR WITH ALL STEPS BEFORE BEGINNING. A "PRACTICE RUN" OF THESE STEPS / PROCEDURES
Page 1 of 4
MAY BE HELPFUL TO ASSIST YOU IN FAMILIARIZING YOURSELF THOROUGHLY, AND AVOIDING COSTLY ERRORS.
RM470477 Rev 2
