Summary of Contents for Franklin Electric EF1-110V-10
- Page 1 FUELING SYSTEMS CASE-MOUNTED WELDER GRID SOLUTIONS EV SYSTEMS O P E R A T O R G U I D E 408001008 r5 MODEL EF1-110V-10 EF1-110V-10-A...
- Page 2 Tel: USA & Canada +1 800 225 9787 • Tel: UK +44 (0) 1473 243300 Tel: Mex 001 800 738 7610 • Tel: DE +49 6571 105 380 • Tel: CN +86 10 8565 4566 UPP and Gemini are registered trademark of Franklin Electric Company, Inc. 408001008 r5...
-
Page 3: Table Of Contents
Contents 1 Introduction ........................1 1.1 Documentation ......................1 1.1.1 Symbol Legend ....................1 2 Safety/Security ........................2 2.1 General Safety Information..................2 2.2 Welder Safety Information ..................2 2.3 Liability Restrictions ....................3 2.4 Hazard Assessment ....................3 2.5 Required Personal Protective Equipment (PPEs) ............3 3 Overview ...........................4 3.1 Component / Feature Identification &... - Page 4 Intentionally Blank...
-
Page 5: Introduction

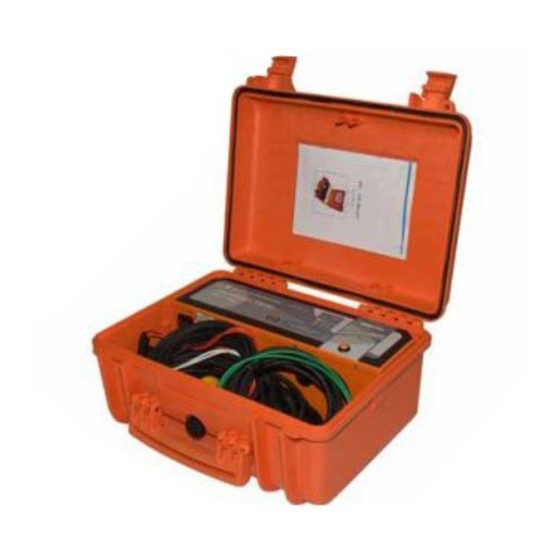

Introduction The EF1-110V-10 electrofusion welder from Franklin Fueling Systems works with all UPP® electrofusion fittings and products. The EF1-110V-10 features state-of-the-art electronics which allowing for a compact, user-friendly design. Features include: • Robust construction, dust proof / water resistant (IP65 rated) features with enhanced graphic feed-back of the electrofusion progress. -
Page 6: Safety/Security
Further guidelines can be found in the APEA Blue Book 2nd Edition and IEC 60079-10-1, “Explosive atmospheres - Part 10-1: Classification of areas - Explosive gas atmospheres”. • The EF1-110V-10-10 is designed for use on construction sites and meets applicable European and International safety standards. The machine should be handled with the care usually given to electrical equipment, especially during transport. -
Page 7: Liability Restrictions
• The EF1-110V-10 is used outside the indicated application area. • Non-UPP® fittings or pipe are used. • The operator has not been trained to use the EF1-110V-10 or the UPP® system. • Operating instructions have not been observed. • Unauthorized repairs, maintenance or modifications have occurred. -
Page 8: Overview
Generators must have a rated output of at least 2.8 kW (3.5 kVa) and power input must be between 93 and 127 volts at 40 to 70 Hz. The EF1-110V-10 automatically recognizes the fitting when connected and applies the correct amount of energy for a successful weld. -
Page 9: Technical Specifications
Technical Specifications Table 1 – Specifications. Description Value Stock Code Number EF1-110V-10 Supply voltage 110 V +/- 15% (93 V to 127 V) Supply frequency 50/60 Hz (40 Hz to 70 Hz) Supply power 2.8 kW / 3.5 kVa Supply protection... -
Page 10: Application
Riser Fittings Blue The EF1-110V-10 can be used in ambient temperatures between -15° C (5° F) and +45° C (113° F). Only personnel fully trained and certified in the use and installation of the UPP® system should use this equipment. -
Page 11: Multiple Welds
• The sum of the resistance values (circled number on UPP® fittings) does not exceed 10. • The UPP® fittings are connected to the EF1-110V-10 in series using the bridging leads provided (see photos A & B). You can ensure that you have connected the fittings correctly and that the welds are successful by checking that all of the connected fittings get warm and that all of the indicator pins are exposed at the end of the welding time. -
Page 12: Appendix
Appendix Maintenance • There are no user serviceable parts inside the EF1-110V-10 welding unit. • Damaged or defective products should be returned to an approved service agent for repair or calibration. • Welding unit and cables should be checked for damage or defects and parts repaired or replaced prior to each use. - Page 13 Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress...
-
Page 14: Fault Indicators
• Ensure welder is within temperature range. • If problem persists, return EF1-110V-10 to supplier. NOTE: The EF1-110V-10 can be reset after a fault has been remedied by pressing and holding the START / STOP button for 3 seconds. - Page 15 Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress Weld Progress...
-
Page 16: Disposal
Disposal The equipment and packaging should be sorted for environmentally friendly recycling. IMPORTANT: Do not dispose of this equipment into household waste! When no longer suitable for use, this equipment must be separately collected and sent for recycling. European Directive 2012/19/EU: The Waste Electrical and Electronic Waste Electrical and Electronic Equipment Regulations 2013. - Page 17 Intentionally Blank...
- Page 18 FUELING SYSTEMS GRID SOLUTIONS EV SYSTEMS 408001008 r5...
