Summary of Contents for Furpezoo WDC-B2

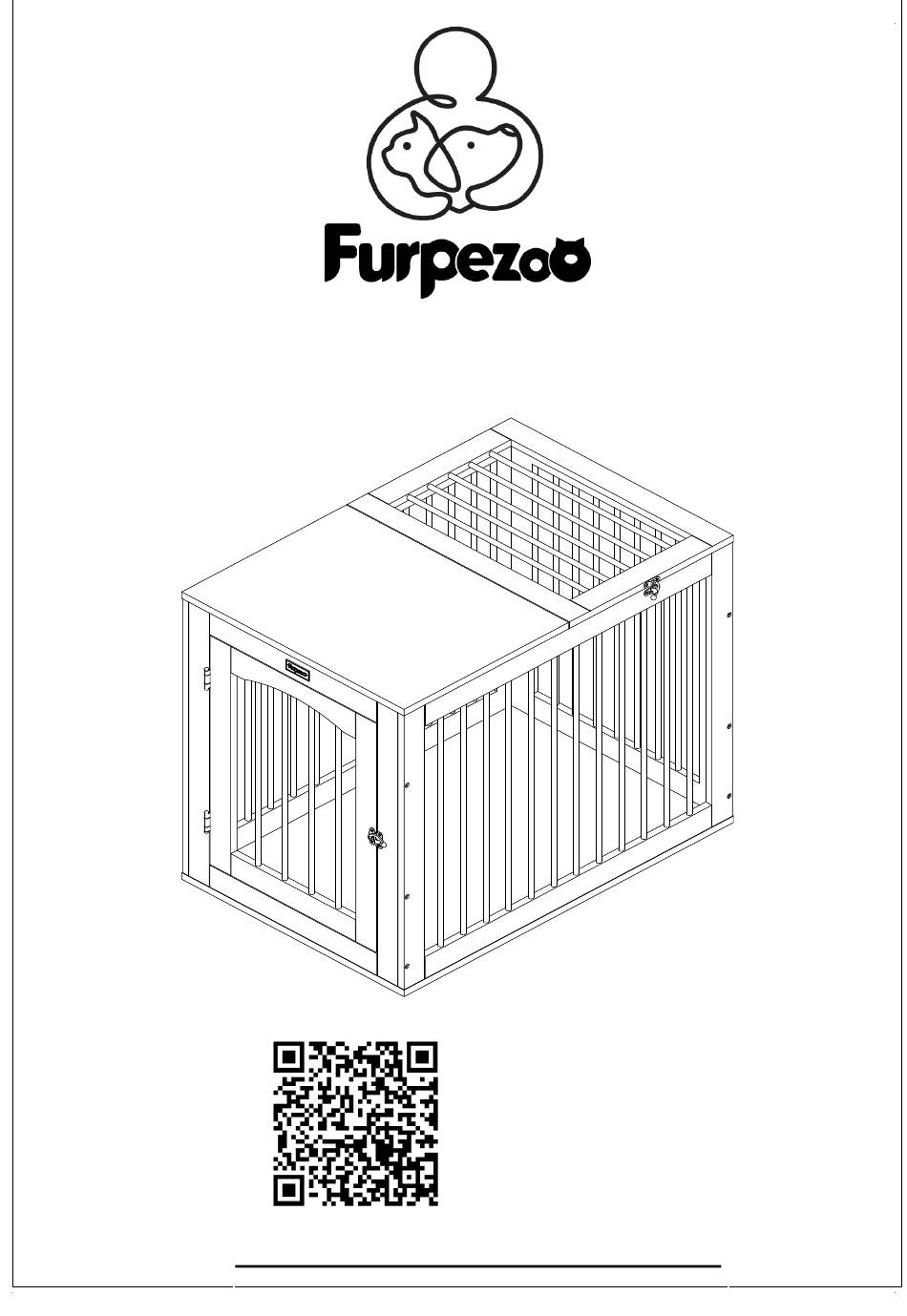

- Page 1 PET CRATE USER MAUNUAL Installation video Email: service@furpezoo.com...
- Page 2 Free user support Not sure how to get your Furpezoo product to work properly? —Contact our world-class, friendly support team for quick solutions.
-
Page 3: Package Include
PACKAGE INCLUDE... -
Page 4: Product Parts
FURPEZOO HOME WOODEN PET CRATE WDC-B2/WDC-W2 INSTALLATION MANUAL ALL ACCESSORIES PRODUCT PARTS: HARDWARE: M5*50mm 8PCS 15PCS 2SETS 24PCS Ø3*14mm 2PCS 18PCS... - Page 5 ④ ① ① ① 1, Screw the cam bolt [1] into the threaded insert on the panel. 2, Connect both panels together making sure the cam bolt [1] goes into the pre-drilled large hole on the end of the panel for cam lock [5]. 3, Insert the cam lock [5] into the pre-drilled large hole on the panel.Make sure the cross slot of cam lock [5] faces out.
- Page 6 STEP 1 STEP 1 6PCS Screw ① to the Panel (A) as below shown STEP 2 STEP 2 Screw ① to the Panel (B) as below shown...
- Page 7 STEP 3 STEP 3 Screw ① to the Panel (C) as below shown STEP 4 STEP 4 6PCS M5*50mm Warm Tips: Connect the Panel (B) & (D) & (E) Install with the pre- with Screw ② as below shown drilled side facing inward Warm Tips: Install with the pre-...
- Page 8 STEP 5 STEP 5 Screw ④ & ⑤ to lock the Panel (B) & (F) as below shown Turn 180° Warm Tips： Refer to Page 4: Cam locksystem operation STEP 6 STEP 6 - Screw ④ & ⑤ to lock the Panel (C) &(F) as below shown - Screw ②...
- Page 9 STEP 7 STEP 7 Ø6*25mm Screw ② & ④ to lock the Panel (G) as below shown STEP 8 STEP 8 3PCS 6PCS Ø6*25mm Screw ④ & ⑤ to lock the Panel (A) as below shown 5 X6 Warm Tips： Refer to Page 4: Cam locksystem operation...
- Page 10 STEP 9 STEP 9 Notice: Pay attention to the installation direction STEP 10 STEP 10 Ø3*14mm Screw ⑦ to the Panel (C) as below shown...
- Page 11 STEP 11 STEP 11 Ø3*14mm Attach Panel (H) and Panel (C) as below shown Warm Tip: The hinges both fixed one hole firstly,then installing the remaining holes. STEP 12 STEP 12 4PCS Ø3*14mm Attach ⑨ to Panel (E) & (H) as below shown Warm Tip: Suggest installing the...
- Page 12 STEP 13 STEP 13 Notice: Pay attention to the installation direction STEP 14 STEP 14 Great, you got a 39-inch Dog Crate -11-...
-
Page 13: After-Sale-Support
☛5.The maximum load of the top end table is 150 IBS. After-Sale-Support ☛ Furpezoo is committed to product quality, and we promise 100% quality assurance, just to give you the best products and services. Please feel free to contact us if you have any questions.
