- Page 1 Revised January 2012 FF SERIES OF FLAKE ICE MACHINES COMPLETE UNIT （ ） SERVICE MANUAL FOR FF 1 - 3.2 AR MODELS 380v – 415v 3 Phase 50Hz Refrigerant: R404A （ ）...
-
Page 2: Table Of Contents
Revised January 2012 Table of Contents I. Overview ..........................4 II. Operation Conditions & Performance Parameters 1. Conditions for Operation of FF Series Scale Ice Machine ............... Diagram Output Scale Machine ................. 5 3. Parameters of Scale Ice Machine ....................6 4. - Page 3 Revised January 2012 a) 8-bit DIP Switch ....................26 b) 4-bit DIP Switch ....................27 4. Electrical Wiring Diagram ..................28 a) Ice machine PC Board wiring diagram ............... 28 b) Ice Machine external indicator (small board) wiring diagram ......29 c) Ice Making sensor wiring diagram ..............
-
Page 4: Overview
This Service Manual gives an introduction of operation conditions, performance parameters, installation, troubleshooting and operating procedures of FF series sub-zero ice machines. The ice making system has a vertical, static evaporator with a rotating auger. The machine is equipped with a solid state PC board,... - Page 5 Revised January 2012 2. Diagram for Ice Output of sub Zero Ice Machine...
- Page 6 Daily ice output is directly related to the air temperature at the condenser and inlet water temperature. In order to keep optimum operation performance of FF series sub-zero ice machines maintenance must be performed on a regular basis as per service manual section V.
-
Page 7: Working Pressure (Ambient Temperature : 25℃)
Revised January 2012 4. Working Pressure (Ambient temperature 25℃,R404A) Model FF1AR/FF1AS FF1.2AR/FF1.2AS FF1.5AR/FF1.5AS Discharge Pressure 1850Kpa 1850Kpa 1800Kpa Suction Pressure 200Kpa 200Kpa 200Kpa Model FF2AR/FF2AS FF2.5AR/FF2.5AS FF3.2AR/FF3.2AS FF3.2W Discharge Pressure 1800Kpa 1800Kpa 1650Kpa Suction Pressure 200Kpa 200Kpa 200Kpa 1550Kpa 200Kpa 5 Refrigerant Charge Model FF 1 AR FF 1.2 AR FF 1.5 AR... -
Page 8: Dimensions
Revised January 2012 6. Dimensions (See figure 1) condenser size for split unit Model W(mm) D(mm) H(mm) ------ FF1AR 1320 1050 FF1AS(Split unit) 1320 1050 1100 ×475×630 ------ FF1.2AR 1320 1050 FF1.2AS(Split unit) 1320 1050 1200 ×475×630 ------ FF1.5AR 1320 1050 1050 FF1.5AS(Split unit) - Page 9 Revised January 2012 Packing/ Transportation/ Storing and Installation Packing,Transportation and Storing The ice machine is packed in plywood. Beware of collision, vibration, tilting, inversion, etc. in transportation and storage. Ice machine should be kept below 40C, dry, and well-ventilated Before you begin: Check your paperwork to determine the model received matches your order.
-
Page 10: 3. Installation Procedures
Revised January 2012 3.Installation Procedures (1) Place the ice machine on appropriate ice storage bin and fix. See figure 2. (2) Ensure machine is level (3) Connect water supply with a hose. (4) Connect the drains with sufficient fall. (5) Open the water supply stop cock. (6) Connect power to approved outlet. -
Page 11: 10 5. Operating Instructions
Revised January 2012 Operating Instructions (1) To start up After the machine has been installed as per instructions, plug in and switch on. The indicator light A (the green light) will come on. Turn the “On/Off” switch on the control box to “On” position (turn the switch in a clockwise direction) and the machine will be on 5 minutes’... -
Page 12: Operating Principles
Revised January 2012 IV. Operating Principles 1. Water Circulation System (See figure 6) Water enters the machine through the float valve and into the water reservoir. Water is then pumped to the water distributor by a water pump and then flows on to the inner surface of the evaporator. It is cooled down gradually and forms ice. -
Page 13: The Gearbox
Revised January 2012 3. The Gearbox This system includes a gear motor and gear box. The gear motor drives the gearbox. The output shaft of the gearbox drives the auger and water distributor at a speed of 2 rpm. In case of wrong rotation direction or low speed of the gear motor, the sensor will send a signal to the P.C. -
Page 14: Maintenance & Trouble Shooting
Coast Distributors recommends the use of PPE when carrying out a service or maintenance on either the ITS, BIN, or Grant ice machine. A. Daily procedures For continued ice quality, check the following. -
Page 15: Cleaning Procedures
Revised January 2012 2. Cleaning Procedures 1. Carry out correct isolation procedures and test unit for power loss. 2. Isolate the water supply to the machine. 3. Remove and replace the water filter cartridge and purge approx 4ltrs of water through filter. 4. -
Page 16: 15 3. Trouble Shooting
Revised January 2012 3. Trouble Shooting Symptom Possible Causes Solution Power supply turned off Ice Machine not running. Check power lead is plugged in and turned on. Check circuit 1.Power supply light is off breaker. Rotate switch clockwise to reset. Turn switch to Auto Emergency button pressed. -
Page 17: Electrical Information
Revised January 2012 V I . Electrical Information a) GRANT Control Panel Control Panel on B400 Bin with Manual Off/Auto switch fitted Manual On/Off switch on ITS system is located on Bin. LOCATIO FUNCTION Green power light indicates power to machine when lit... -
Page 18: B) Electrical Wiring Diagram Of The Slice Ice Machine
Revised January 2012 b) Electrical Wiring Diagrams of the Scale Ice Machines FF(1-1.5) AR & FF(1-2.5) AS... - Page 19 Revised January 2012 FF (2-2.5) AR...
- Page 20 Revised January 2012 FF 3.2 AR...
- Page 21 Revised January 2012 FF 3.2 AS...
- Page 22 Revised January 2012 FF 3.2 WR...
-
Page 23: C) Timer Control Wiring Diagram
Revised January 2012 c) Time Control Wiring Diagram... -
Page 24: Pc Board Explained
Revised January 2012 V II PC BOARD EXPLAINED 1 Ice making PC board layout (back 、 ） b) Ice making external indicator small board layout... -
Page 25: C) Ice Full Sensor Sensitivity Small Board Layout
Revised January 2012 c) Ice full sensor sensitivity small board layout 2. Fault Indicator When the power frequency is lower than 45Hz more than five seconds all the indicator lights flash at the same time... -
Page 26: Dip Switch
Revised January 2012 3. Dip Switch Attention: Please press reset button before resetting DIP switch. a). 8-bit DIP switch ( 1 (ON): Cancel starting up delay. 2,3 (ON):Select sub zero ice machine’s ice-full sensor 4 (OFF): Not Used 5 (OFF): Select 1440RPM model. 6 (ON): Turn on the buzzer. -
Page 27: B) 4-Bit Dip Switch
Revised January 2012 The function of the sixth bit DIP switch: Selects the buzzer alarm. When the sixth bit DIP switch is in the on position, the buzzer will alarm when a fault is triggered, in contrast, the buzzer is silent when the dip switch is in the off position. -
Page 28: Electrical Wiring Diagram
Revised January 2012 4 Electrical wiring diagram ． a). Ice machine PC board wiring diagram Ice making PC board layout (front) figure 4-1... -
Page 29: B) Ice Machine External Indicator (Small Board) Wiring Diagram
Revised January 2012 b) Ice machine external indicator (small board) wiring diagram c) Ice making sensor wiring diagram... -
Page 30: Ice Full Sensor Sensitivity And Dip Switch Settings
Revised January 2012 Ice full sensor sensitivity and DIP switch settings ． Ice full sensor sensitivity settings 、 Flake XB70—XB550 model 5 indicator. PB0.4F/A— ： machine PB50F/A model 5 indicator. ： Zero machine b) setup of ice full sensor sensitivity Ice full sensor sensitivity may diminish after a certain period of time. -
Page 31: Timer Switch
Grant Timer with remote switch The Grant unit can be fitted with a remote switch and timer, the function of this is twofold. As the electrical control board is placed on the unit, this can make access to the factory fitted switches difficult. -
Page 32: B)Operating Instructions
Revised January 2012 b) Operating Instructions Before turning power ON, Check that your unit conforms to the operating voltage. If the unit has not been in operation for a long period the battery may have discharged and may not work immediately. -
Page 33: C)Specifications
Revised January 2012 c) Specifications 240VAC Rated Voltage Voltage tolerance 220-260VAC Frequency 50hz Power consumption Drive Method Quartz controlled stepping motor Cycle 24 hours Time precision +/-3 sec/ day at 22 degrees Celcius Separate Circuit SPST Switch construction ON/AUTO/OFF switch Manual ON/OFF Load Resistive Load... -
Page 34: Technical Notes
1. All PC boards after November 2009 will be the bypass model which will allow all sensors to be bypassed for diagnostic purposes. 2. All Grant ice machines up to 10 ton use the same PC board. 3. All grant ice machines 10 ton and over use a PLC. -
Page 35: Service Bulletins
Revised January 2012 X. Service Bulletins Coast Distributors CD series Water Filters Coast tip of the week: Blocked water filter bypass If you need to bypass the water filter in an emergency you can carry out the following to get you out of trouble until you can replace the cartridge. - Page 36 Revised January 2012 Water regulating valve If there is water dripping or flowing into the bin from under the evaporator, check the water flow over the evaporator. Ball float adjustment under Water flow regulator valve To adjust the water flow so as not to overflow the drain catchment tray, adjust this valve slowly to regulate the water flow.
Need help?
Do you have a question about the FF Series and is the answer not in the manual?
Questions and answers

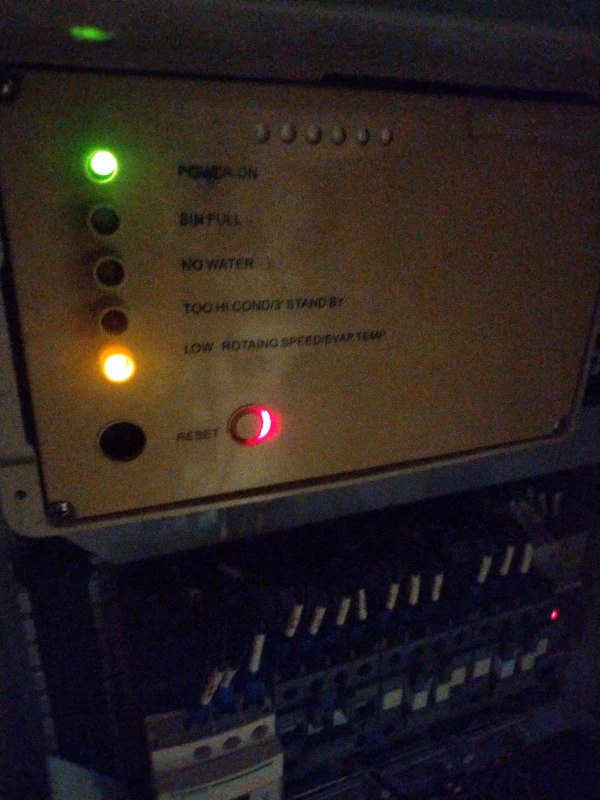

Here is showing problems low rating speed and beep beep continues after 2 minutes automatically off
The cause of low rating speed and continuous beeping after 2 minutes on the Grant FF Series could be:
- Reamer motor RPM dropped by more than 7%. Check the frequency (Hz); if it's lower than 45Hz, this may be the issue.
- Speed reducer issues, such as:
- Faulty speed reducer motor or box – replace if needed.
- Low oil in speed reducer – replace motor/box.
- Worn bearings – replace bearings.
- Motor capacitor may be faulty – check and replace if needed.
Continuous beeping may also be due to the buzzer being enabled via DIP switch 6.
