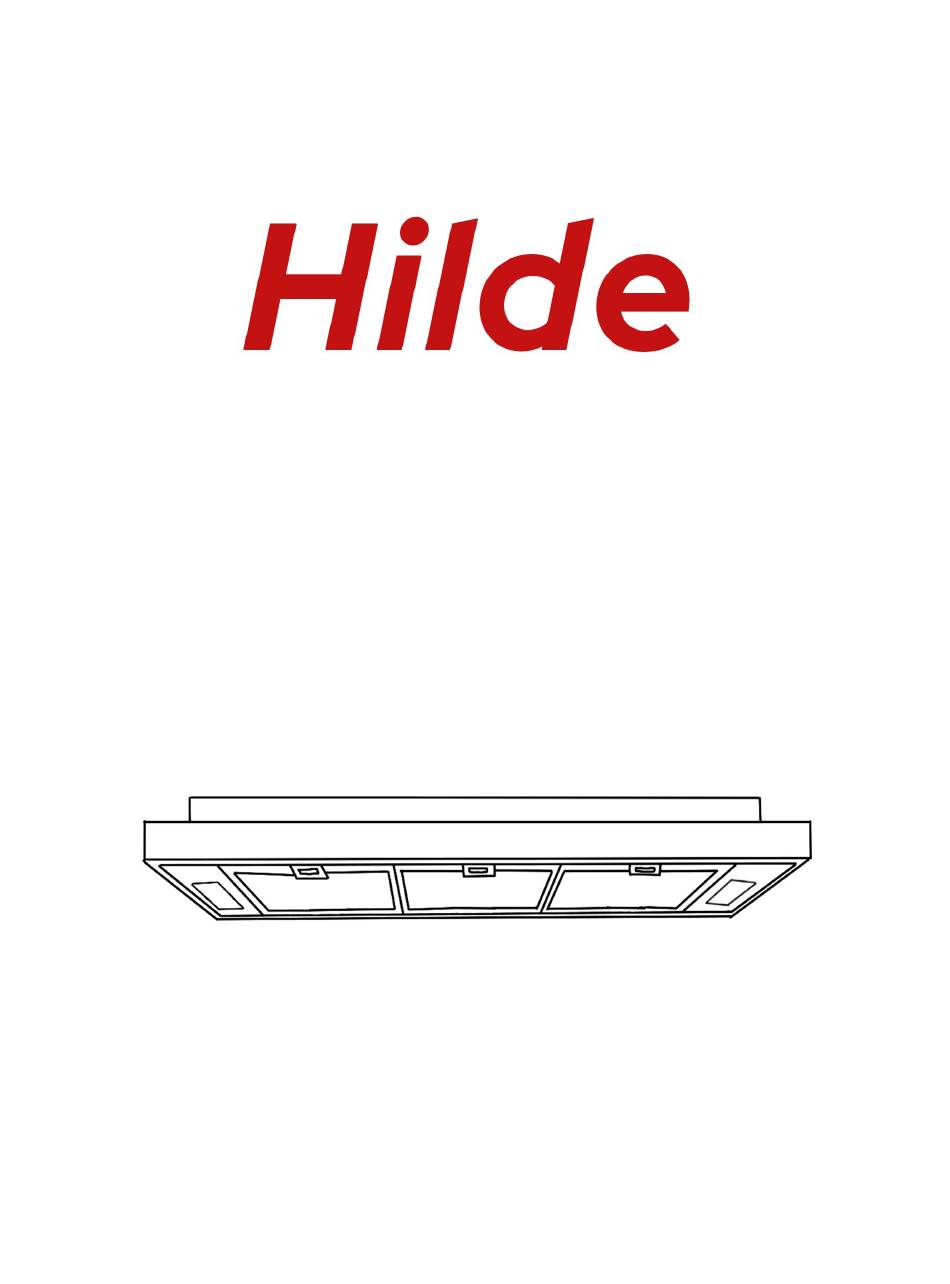

- Page 1 INSTALLATION AND OPERATION MANUAL HH-S91190SS / HH-S91190BK SLIM HOOD...
-
Page 2: Table Of Contents
Model: HH-S91190SS / HH-S91190BK SLIM HOOD CONTENT PAGE SAFETY PRECAUTIONS ................. 3 SPECIFICATIONS ..................5 INSTALLATION ..................... 7 OPERATION ....................9 MAINTENANCE AND CARE ................ 10 TROUBLE-SHOOTING ................. 11 To all, please provide this manual to the user without fail. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS When unpacking ● Do not use the appliance if there are obvious signs of transportation damage. ● If the supply cord has been damaged, it must be replaced by the manufacturer, its service agents or qualified personnel in order to avoid a hazard. Please contact us in an event like this. Installation ●... - Page 4 SAFETY PRECAUTIONS Usage ● This hood is designed for domestic kitchen use to eliminate unpleasant odours from the kitchen. Do not use or install this hood for any other uses than its specific purpose. ● This appliance can be used by children aged 8 years and above and also persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Specifications
SPECIFICATIONS Model: HH-S91190BK HH-S91190SS Power Rating: 244W 164W Voltage: 220-240V~ 220-240V~ Power Frequency: 50Hz 50Hz Power of Motors: 3 x 80W 2 x 80W Power of Lamps: 2 x 2.0W 2 x 2.0W Length of the cable: 1.5m 1.5m Appliance Dimensions:... - Page 6 SPECIFICATIONS HH-S91190BK HH-S91190SS Product Parts Product Parts Hood Body Hood Body Charcoal filters Charcoal filters Aluminum grease filters Aluminum grease filters Rectangular LED light Rectangular LED light Bottom Panel Bottom Panel Installation Accessories Installation Accessories ø5*ø8 Wall plug ø5*ø8 Wall plug...
-
Page 7: Installation
INSTALLATION This appliance can be installed in recirculation mode only. Mounting Do ensure that the appliance is mounted on a solid surface which could withstand the appliance’s weight. In the case of boarded wall, If the thickness is more than 20mm, mount the cooker hood directly to the wall. If the thickness is less than 20mm, embed a reinforcing board and mount the cooker hood to this board. - Page 8 INSTALLATION A. Wall Mounting B. Cabinet Mounting Step 1 (Fig. 7) Step 1 ● Determine where the hood should be ● Determine where the hood should be positioned and lightly mark where the positioned on the bottom of the cabinet. lower edge of the appliance should be on Determine where the middle should be the wall.
-
Page 9: Operation
OPERATION This appliance is equipped with 3 speed controls. Function controls of the cooker hood can be found below. Note: Touch the sensor buttons gently to operate this appliance. To achieve better air extraction, it is advisable to switch on the cooker hood a few minutes before starting to cook and to leave it on for approximately 15 minutes after cooking (or at least until all cooking smell is completely removed). -
Page 10: Maintenance And Care
● Replace the light and reconnect the terminal. ● Press the light back into cavity and place back grease filters. ● Please reach out to the Hilde Service Care Team for LED light replacement if you face any difficulties. Note: The manufacturer will not be held liable for any damages resulting from improper installation nor failure to adopt proper safety measures during installation and operational use of the appliance. -
Page 11: Trouble-Shooting
If problems still persist after the checks, please reach out to Hilde Service Care Team for further assistance. - Page 12 The Company reserves the right to change the information of this installation and operation manual at any time without prior notice. In the event that any changes are made, the revised information shall be posted on www.hilde.com.sg immediately. Please check the latest information posted herein to inform yourself of any changes.
