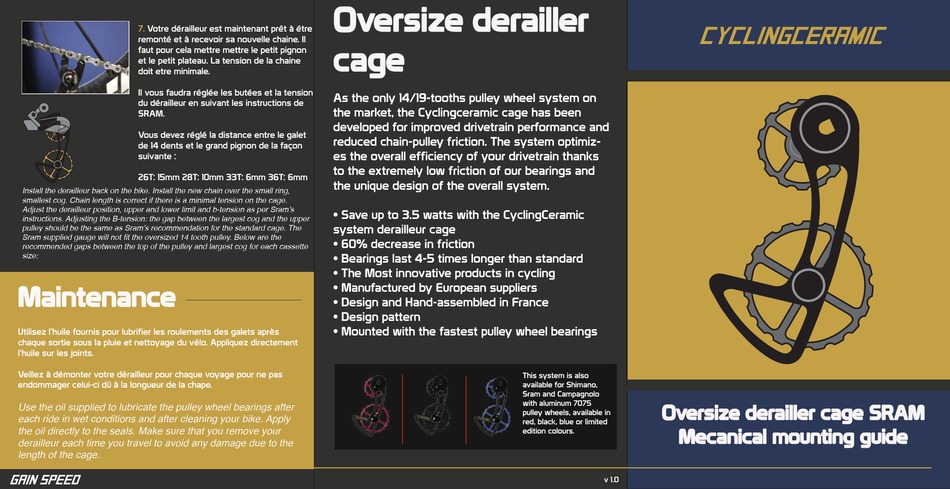

CYCLINGCERAMIC SRAM Installation Instructions

7. Votre dérailleur est maintenant prêt à être
remonté et à recevoir sa nouvelle chaine. Il
faut pour cela mettre mettre le petit pignon
et le petit plateau. La tension de la chaine
doit etre minimale.
Il vous faudra réglée les butées et la tension
du dérailleur en suivant les instructions de
SRAM.
Vous devez réglé la distance entre le galet
de 14 dents et le grand pignon de la façon
suivante :
26T: 15mm 28T: 10mm 33T: 6mm 36T: 6mm
Install the derailleur back on the bike. Install the new chain over the small ring,
smallest cog. Chain length is correct if there is a minimal tension on the cage.
Adjust the derailleur position, upper and lower limit and b-tension as per Sram's
instructions. Adjusting the B-tension: the gap between the largest cog and the upper
pulley should be the same as Sram's recommendation for the standard cage. The
Sram supplied gauge will not fit the oversized 14 tooth pulley. Below are the
recommended gaps between the top of the pulley and largest cog for each cassette
size:
Maintenance
Utilisez l'huile fournis pour lubrifier les roulements des galets après
chaque sortie sous la pluie et nettoyage du vélo. Appliquez directement
l'huile sur les joints.
Veillez à démonter votre dérailleur pour chaque voyage pour ne pas
endommager celui-ci dû à la longueur de la chape.
Use the oil supplied to lubricate the pulley wheel bearings after
each ride in wet conditions and after cleaning your bike. Apply
the oil directly to the seals. Make sure that you remove your
derailleur each time you travel to avoid any damage due to the
length of the cage.
Gain speed
Oversize derailler
cage
As the only 14/19-tooths pulley wheel system on
the market, the Cyclingceramic cage has been
developed for improved drivetrain performance and
reduced chain-pulley friction. The system optimiz-
es the overall efficiency of your drivetrain thanks
to the extremely low friction of our bearings and
the unique design of the overall system.
• Save up to 3.5 watts with the CyclingCeramic
system derailleur cage
• 60% decrease in friction
• Bearings last 4-5 times longer than standard
• The Most innovative products in cycling
• Manufactured by European suppliers
• Design and Hand-assembled in France
• Design pattern
• Mounted with the fastest pulley wheel bearings
CyclingCeramic
This system is also
available for Shimano,
Sram and Campagnolo
with aluminum 7075
Oversize derailler cage SRAM
pulley wheels, available in
red, black, blue or limited
Mecanical mounting guide
edition colours.
v 1.0
