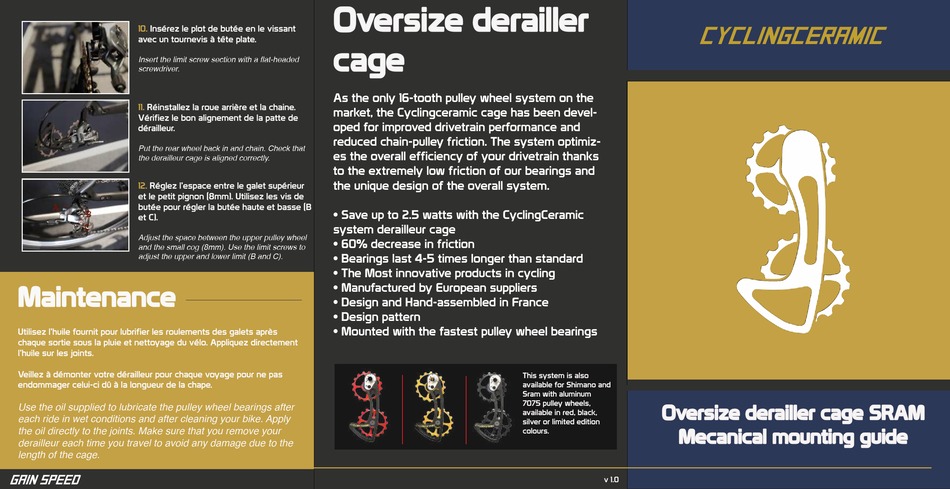

CYCLINGCERAMIC SRAM Installation Instructions

10. Insérez le plot de butée en le vissant
avec un tournevis à tête plate.
Insert the limit screw section with a flat-headed
screwdriver.
11. Réinstallez la roue arrière et la chaine.
Vérifiez le bon alignement de la patte de
dérailleur.
Put the rear wheel back in and chain. Check that
the derailleur cage is aligned correctly.
12. Réglez l'espace entre le galet supérieur
et le petit pignon (8mm). Utilisez les vis de
butée pour régler la butée haute et basse (B
et C).
Adjust the space between the upper pulley wheel
and the small cog (8mm). Use the limit screws to
adjust the upper and lower limit (B and C).

Maintenance

Utilisez l'huile fournit pour lubrifier les roulements des galets après
chaque sortie sous la pluie et nettoyage du vélo. Appliquez directement
l'huile sur les joints.
Veillez à démonter votre dérailleur pour chaque voyage pour ne pas
endommager celui-ci dû à la longueur de la chape.
Use the oil supplied to lubricate the pulley wheel bearings after
each ride in wet conditions and after cleaning your bike. Apply
the oil directly to the joints. Make sure that you remove your
derailleur each time you travel to avoid any damage due to the
length of the cage.
Gain speed
Oversize derailler
cage
As the only 16-tooth pulley wheel system on the
market, the Cyclingceramic cage has been devel-
oped for improved drivetrain performance and
reduced chain-pulley friction. The system optimiz-
es the overall efficiency of your drivetrain thanks
to the extremely low friction of our bearings and
the unique design of the overall system.
• Save up to 2.5 watts with the CyclingCeramic
system derailleur cage
• 60% decrease in friction
• Bearings last 4-5 times longer than standard
• The Most innovative products in cycling
• Manufactured by European suppliers
• Design and Hand-assembled in France
• Design pattern
• Mounted with the fastest pulley wheel bearings
CyclingCeramic
This system is also
available for Shimano and
Sram with aluminum
7075 pulley wheels,
Oversize derailler cage SRAM
available in red, black,
silver or limited edition
Mecanical mounting guide
colours.
v 1.0
