KidKraft Avalon 16601D Assembly Instructions

Please retain this information for future reference
HARDWARE:
PARTS LIST:
A. Flat Washer
x 8 pcs
1
B. Spring Washer
x 8 pcs
C. Cross Dowel
Bolt x 6 pcs
Step 3
(1 5/8 in, 40 mm)
D. Cross Dowel
Bolt x 2 pcs
(3 in, 75 mm)
Allen Wrench
x 1 pc
CAUTION: Adult Assembly Required. Hardware
contains small screws with sharp points. Keep
unassembled parts out of reach of small children.
Step 1
2
3
4
Step 4
2
C
B A
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and frequently
tighten hardware if necessary. If maintenance is not carried out,
the product could cease to function properly

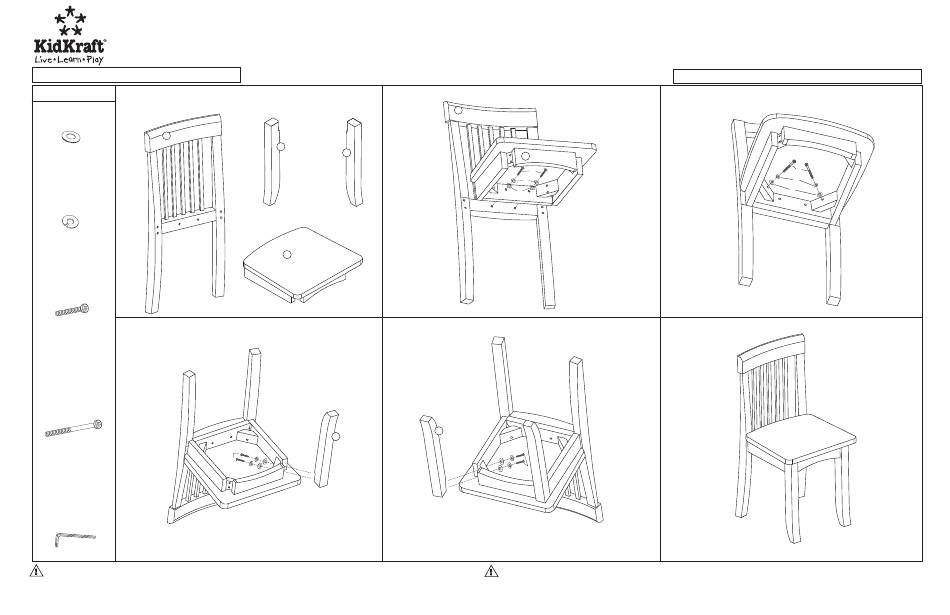

Avalon Chair
Assembly Instructions
1
4
C
B
A
3
B
A
C
WARNING: CHOKING HAZARD
Small parts and sharp points, not
suitable for children under 3 years.
Item# 16601D White,
To order replacement parts, please visit www.kidkraft.com
Step 2
D
B
A
Complete
Customer Service
Before calling customer service, please
locate the batch code number
(example: 2693/65006/04) found on the
www.kidkraft.com
bottom or back of your product.
16612D Black,
16633D Chocolate,
16634D Vanilla
1-800-933-0771
1
