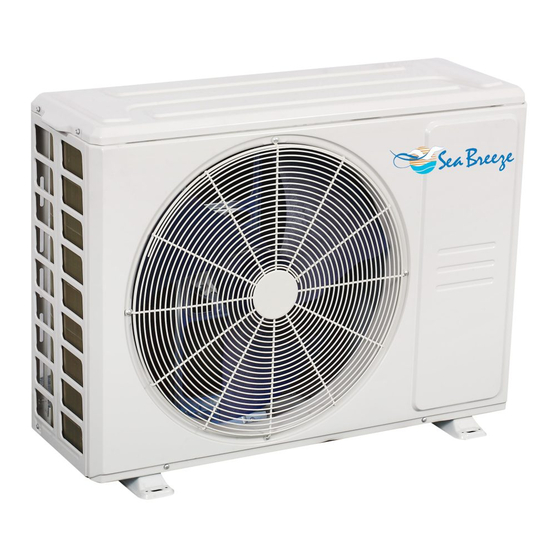

- Page 1 OPERATING INSTRUCTIONS FOR MINI-SPLIT UNITS HEAT PUMP MODELS WM6H424ZMI WM9H424ZMI WM12H424ZMI WM18H424ZMI WM24H424ZMI 950-0286 March 31, 2022...
-
Page 2: Table Of Contents
TABLE OF CONTENTS USER INSTRUCTIONS……..……………………………………...……………..…………….……………1 PARTS IDENTIFICATION…….………..…………..………………………………...………………………2 DISPLAY PANEL..............…….……………………...…………………...….3 OPERATING TEMPERATURE......…………………………………………….……………………4 EMERGENCY OPERATION......……………………………………………………………………4 AIRFLOW DIRECTION CONTROL....………………………………………………………..……………5 CARE AND MAINTENANCE..…………………………………………………………..…………………6 USING THE REMOTE CONTROL………....……………………………………………..…………………7 L C D I N D I C ATO R S … ......… … … … … … … … … … … … … … … … … … . … … … … … … . 8 REMOTE CONTROL OPERATION......……………………………………………………...………….9 USE OF THE REMOTE CONTROL........………………………………………….…..10 AUTO OPERATION.......………………………………………..……………………………………10... -
Page 3: User Instructions
USER INSTRUCTIONS AND INFORMATION In this manual, you will find safety information for operating your new unit. For your safety and the safety of others, please read and understand all cautions located throughout this manual. Retain this manual for future reference. WARNINGS AND CAUTIONS Please read the instruction manual prior to use to ensure proper operation of your unit. -
Page 4: Parts Identification
PARTS IDENTIFICATION Indoor unit Indoor unit 1. Front panel 2. Air inlet 3. Air filter (under cover) 4. Air freshening filter (on the front of part 3) 5. Air outlet 6. Horizontal air flow grille 7. Vertical air flow louver 8. -
Page 5: Display Panel
DISPLAY PANEL Operating Symbols Displayed in Panel illuminates for 3 seconds when: TIMER is activated. SWING, TURBO, or SILENCE features are turned illuminates for 3 seconds when: TIMER is deactivated. SWING, TURBO, or SILENCE features are turned off. Display Window illuminates when anti-cold air feature is turned on. -
Page 6: Operating Temperature
OPERATING TEMPERATURE Mode Heating operation Cooling operation Drying operation Temperature 60 °F ~ 90 °F 32 °F ~ 86 °F 50 °F ~ 90 °F Selectable temperature Outdoor temperature -13 °F ~ 75 °F 32 °F ~ 122 °F -13 °F ~ 122 °F CAUTION: 1. -
Page 7: Airflow Direction Control
AIRFLOW DIRECTION CONTROL - Adjust the horizontal louver using the remote control. - Adjust the vertical louver manually. Setting the air flow direction (Up-Down) Perform this function while the unit is in operation. Use the remote controller to adjust the air flow direction. The horizontal louver can be moved at an angle of 6°... -
Page 8: Care And Maintenance
CARE AND MAINTENANCE Beginning of Season: PRIOR TO OPERATION - Carefully inspect both indoor and outdoor unit for blockages of the inlet and outlet exhaust vents. - Inspect ground connection. Ensure that ground wire is properly connected. - Inspect Air Filters and clean if necessary. - Install new batteries in the remote control unit (2 ea. -
Page 9: Using The Remote Control
USING THE REMOTE CONTROL The remote control can be used from a distance up to 26 feet from the indoor unit. When pressing a button on the remote, confirmation the command sent has been received is when the unit beeps. CAUTIONS 26 ft. -
Page 10: Lcd Indicators
LCD INDICATORS Icons are displayed when the remote control is powered on. Indicated when Breeze Away is activated Active clean feature display Not available for this unit Displayed in Sleep Mode operation. Indicated when unit is operating in Follow Me mode Displayed when data transmitted through wireless control Displayed when data Battery display (low battery detection) -
Page 11: Remote Control Operation
REMOTE CONTROL OPERATION NOTE: a) When changing functions, please allow 3 - 4 minutes for the condenser unit to restart. The DEFROST icon will illuminate during this period. b) Remote communication distance is within 26 feet. MODE Button ON/OFF Button Turns the unit on or off. -
Page 12: Use Of The Remote Control
USE OF THE REMOTE CONTROL AUTO OPERATION 1) Press the Mode button to select AUTO. UP ∧ or DOWN ∨ 2) Press the to adjust the temperature setting. The temperature can be set to 60°F ~ 90°F in 1°F increments. 3) Press the button to start the unit. -
Page 13: Dry (Dehumidifying)
USE OF THE REMOTE CONTROL DRY (DEHUMIDIFYING) OPERATION 1) Press the Mode button to select the DRY mode. UP ∧ or DOWN ∨ 2) Press the to adjust the temperature setting. The temperature can be set to 50°F ~ 90°F in 1°F increments. 3) Press the ON/OFF button to start the unit. -
Page 14: Eco/Gear Operation
USE OF THE REMOTE CONTROL ECO/GEAR OPERATION Press the button to active the energy efficient mode in the following sequence: GEAR(75%) GEAR(50%) Previous Setting Mode NOTE: This function is only available under COOL mode. ECO OPERATION Under COOL mode: 1) When the set temperature is below 75°F, press this button, the remote control will adjust the temperature automatically to 75°F, and fan speed to Auto to save energy. -
Page 15: Freeze Protection
USE OF THE REMOTE CONTROL BREEZE AWAY OPERATION Press the button to avoids direct air flow blowing on the body. The icon will display on the remote control. NOTE: This function is only available under COOL, FAN, and DRY mode. The BREEZE AWAY function is not available for multi zone units. -
Page 16: Set Operation
USE OF THE REMOTE CONTROL SET OPERATION Press the SET button to enter the function setting. UP ∧ or DOWN ∨ Press the SET button or button to select the function as below. Sleep Follow me AP mode Press SET button into setting mode, and then press SET or UP ∧... -
Page 17: Timer Operation
USE OF THE REMOTE CONTROL TIMER OPERATION UP ∧ or DOWN ∨ Press TIMER button. and then press button to adjust the time setting by 30 minutes up t o 10 hours, then 1 hour increments up to 24 hours. To cancel press the button until it r eads 00:00 or turn the unit OFF, and then back on to clear the timer. -
Page 18: Clean Operation
COMBINING TIMERS (Setting both ON and OFF timers simultaneously) TIMER OFF => TIMER ON (On => Stop => Start Operation) This feature is useful when you want to stop the unit after you go to bed, and start it again in the morning when you wake up or when you return home. EXAMPLE: Start To stop the unit 2 hours after setting and start it again 10 hours after setting. - Page 19 TROUBLESHOOTING TIPS Stop the air conditioner immediately if one of the following faults occur. Disconnect the power and contact your qualified service technician. If the following code appears on the LED display, disconnect the power and contact a qualified service technician: EH00, EL01, EH02, EH03, EC51 EC52, EC53,EC54, EC56, EH60, EH61, EC07, EH0b, EL0C, PC00, PC01, PC02, PC03, Pc04, PC08, PC40.
-
Page 20: Operation Tips
OPERATION TIPS The following events may occur during normal operation. 1. Compressor Protection The compressor will not restart for 3 to 4 minutes after it turns off. This prevents rapid cycling of the compressor. 2. Indoor Fan Operation The unit is designed to reduce the possibility of blowing cold air (Anti-Cold Air) in the HEAT mode during one of the three conditions and the set temperature has not been reached. -
Page 21: Warranty
WARRANTY International Refrigeration Products warrants the accompanying split air conditioner system to be free of defects in material and workmanship for the applications specified in the operation manual and installation manual for a period of two (2) year on parts and seven (7) years on the compressor, valid from date of original retail purchase in the United States or Canada.
