Braukmann EA122A Automatic Air Vent
The EA122A Automatic Air Vent purges air from high pressure
mains and equipment in hot or cold closed water systems.
• Includes built-in brass shutoff valve for servicing without
system shutdown.
• Contains removable float/valve assembly for easy
servicing.
• Includes safety drain connection and vent cap with
leakage guard.
• Internal parts made of corrosion-resistant and chemical-
resistant materials for use with water systems containing
glycol, mineral oils, or petroleum-based oils.
• For use with water systems up to 230° F [110° C].
• Not suitable for steam systems.
• Uses 1/8 in. NPT male pipe thread.
• Maintains quiet and efficient operation.
SPECIFICATIONS
Model: EA122A1002 Automatic Air Vent
Materials of Construction:
Body: Engineered thermoplastic with brass base
Float, Valve Lever and Cover: Engineered thermoplastics
Seal Disc and Rings: Synthetic rubbers
Operating Ratings:
Maximum Pressure: 90 psi
Maximum Temperature: 230° F [110° C]
Safety Ratings:
Maximum Pressure: 150 psi
Maximum Temperature: 250° F [120° C]
Connections: 1/8 in. NPT male pipe thread
Dimensions: Refer to Fig. 1
Capacities: Refer to Fig. 2
5
[16]
8
1
5
4
[133]
3
4
4
[121]
1/8 INCH
MALE THREAD

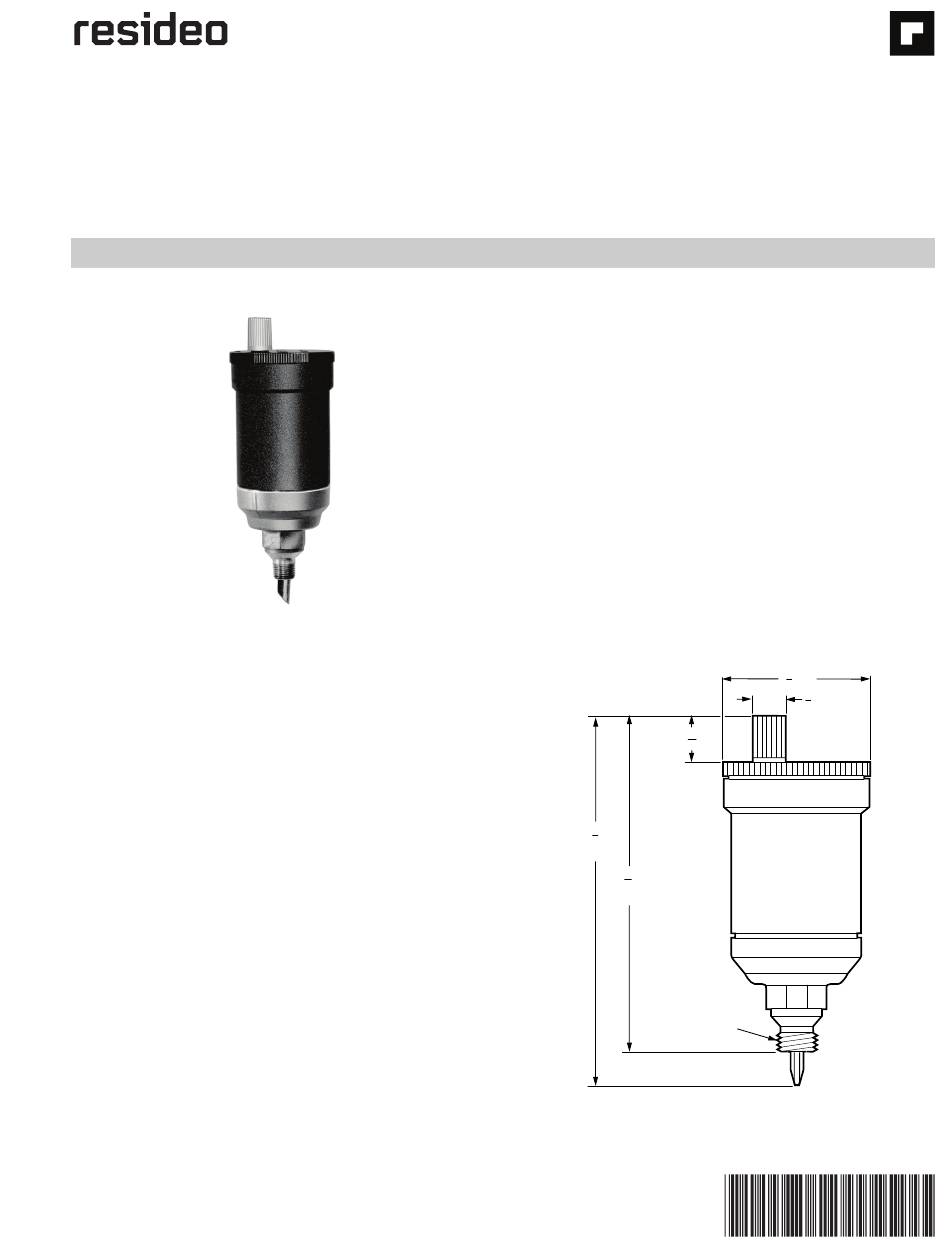

Fig. 1. EA122A dimensions in in. [mm].
PRODUCT DATA
7
1 [48]
8
7
[11]
16
M5491
