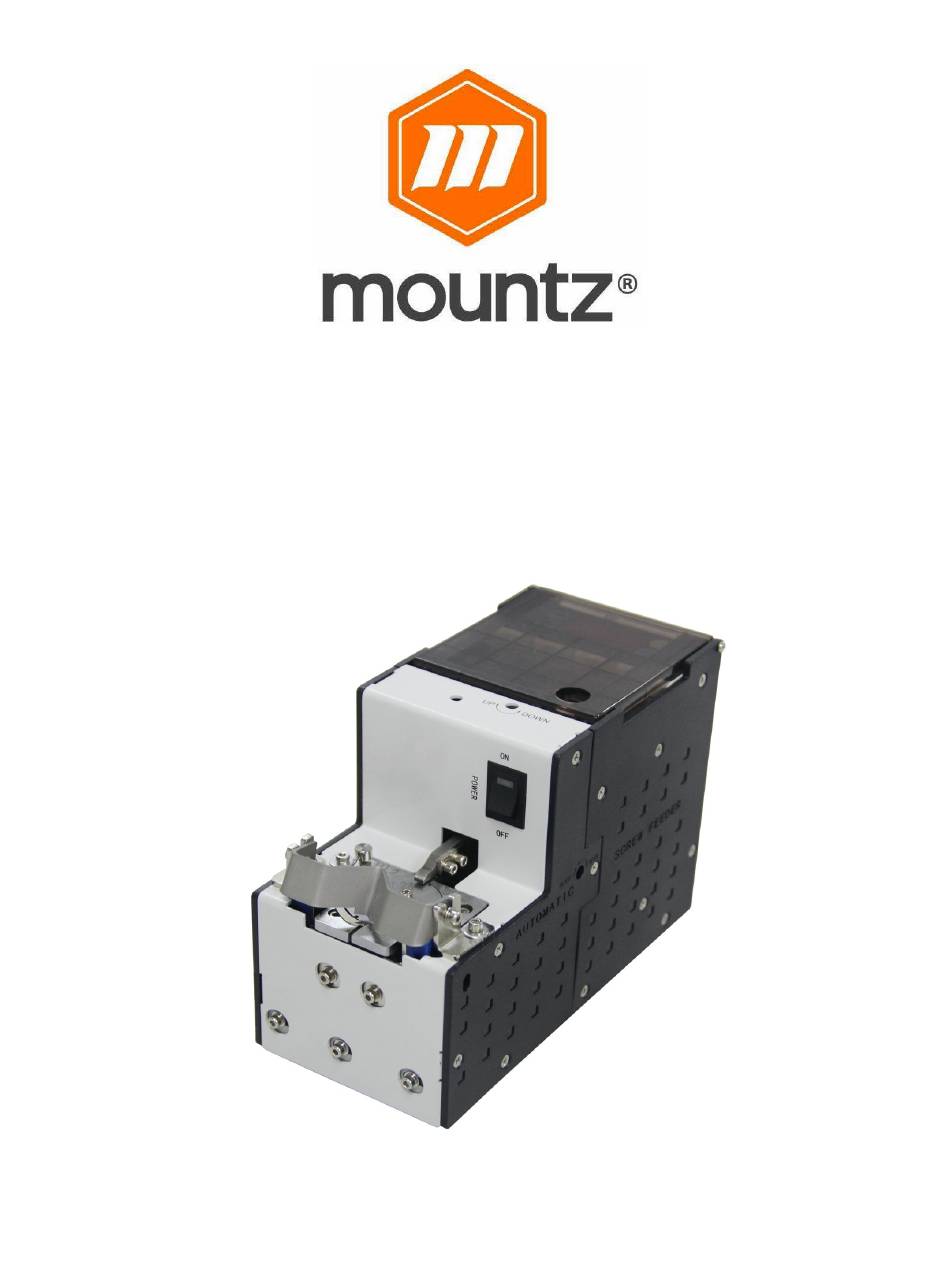

- Page 1 MSP Screw Presenters Model MSP-812A Operating Instructions Rev 1.0 Mar 2021 mountztorque.com – 1080 N 11 St – San Jose CA – 95112...
- Page 2 Product Specifications • Screw Size: M0.8-M2.0 Screw Length:≤8 mm • Approximate screw feeding rate: 60-90 PCS/ min • Input voltage: input V 100-240 • Output voltage: DC15V/1.2A • Dimensions: mm 167*79*125 • Weight: about 1.8 kg Dimensions mountztorque.com – 1080 N 11 St –...
- Page 3 How to use: 1. General operating mode settings Press the "SET" key for 3 seconds, enter the normal working mode setting interface, the panel shows" P-*", press "▲" key can cycle switch different modes. nn10： for M1.0 screws. nn12： for M1.2 screws. nn14： for M1.4 screws. nn17：...
- Page 4 Exploded Parts mountztorque.com – 1080 N 11 St – San Jose CA – 95112...
- Page 5 Drawing Drawing Description Description Sensor Front Cover (back) Teeth kit Bottom board Screw block plate Medium Plate Front panel rivet 1 Front Panel Front panel rivet 2 Nylon Tube Plate bearing Brush rod Gear Circuit Board Mounting block Cooper sleeve Brush lifter holder Pushrod bearing Brush lifter...
- Page 6 Service Centers Corporate Headquarters & Service Center 1080 North 11th Street, San Jose, CA 95112 Phone: (800) 456-1828 Fax: (408) 292-2733 Distribution & Service Center 19051 Underwood Road, Foley, AL 36535 Phone: (251) 943-4125 Fax: (251) 943-4979 www.mountztorque.com sales@mountztorque.com mountztorque.com – 1080 N 11 St –...
