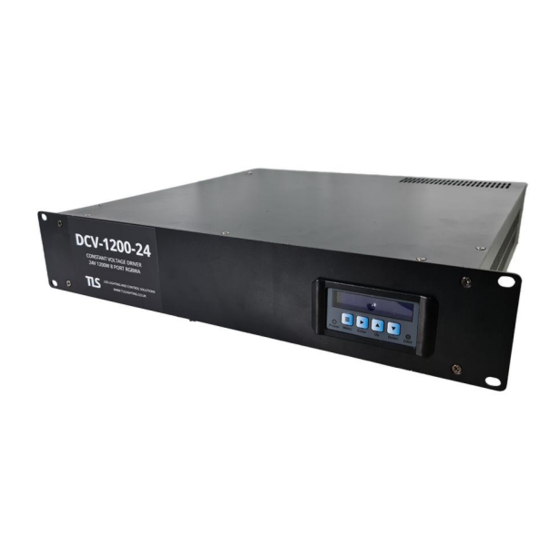

- Page 1 DCV300 300W DMX LED DRIVER OPERATORS MANUAL V6.0...
- Page 2 Contents – Warnings ..........................3 1.0.1 – Read Me ..........................3 1.0.2 – Power ............................4 1.0.3 – IP Rating ..........................4 2.0 – Installation............................4 2.0.1 – Location ........................... 4 2.0.2 – Fixings ............................4 2.0.3 – Power ............................4 2.0.4 –...
- Page 3 1.0 – Warnings 1.0.1 – Read Me WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before the initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •...
- Page 4 OPERATING DETERMINATIONS If this equipment is operated in any other way than that described in this manual, the product may suffer damage and the warranty become void. Incorrect operation may lead to hazards, short-circuit, burns and electric shocks etc. Do not endanger your own safety or the safety of others! Incorrect installation or use can cause serious damage to people and/or property.
- Page 5 2.0.5 – LED Connections 2.0.5.1 – Correct Procedure When connecting Your LED tape to the DCV1200 please ensure the LED tape matches the voltage of the DCV, the standard voltage for a DCV is 24V DC. Please ensure you are connecting the correct terminals to the correct wires on the LED tape, wiring the tape incorrectly can damage both pieces of equipment.
- Page 6 3.0.4 – Changing the LED mode (RGBW/RGB, CCT) Cycle menu until the display reads “System Mode” and press “enter” Select Individual for the following options, Once you have accessed this screen the display will show options as follows PORT, DMX ADDR, MODE, the last number is the mode and relates to below: 1.
- Page 7 Info@tlslighting.co.uk or visit www.tlslighting.co.uk TLS Lighting – all rights reserved.
