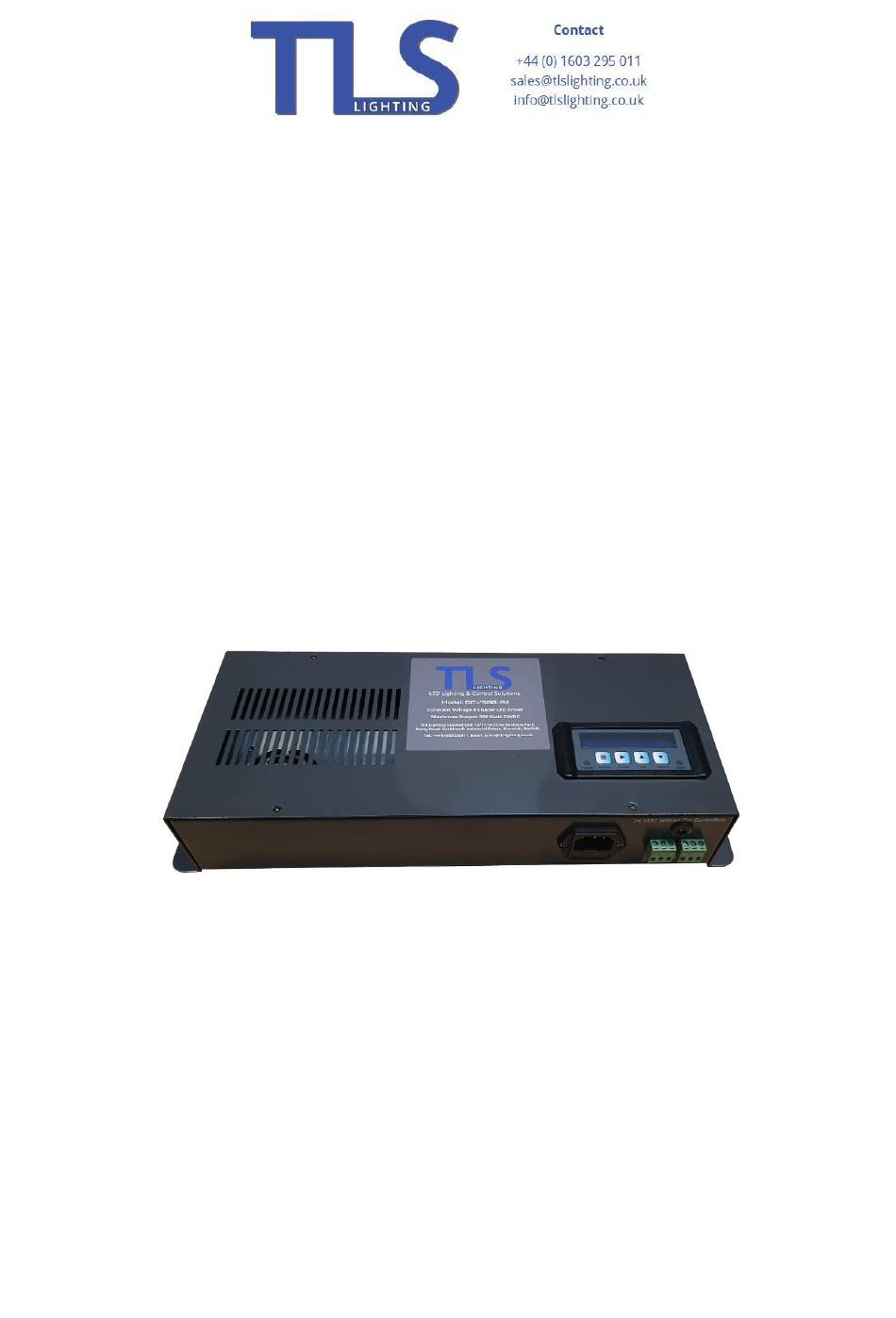

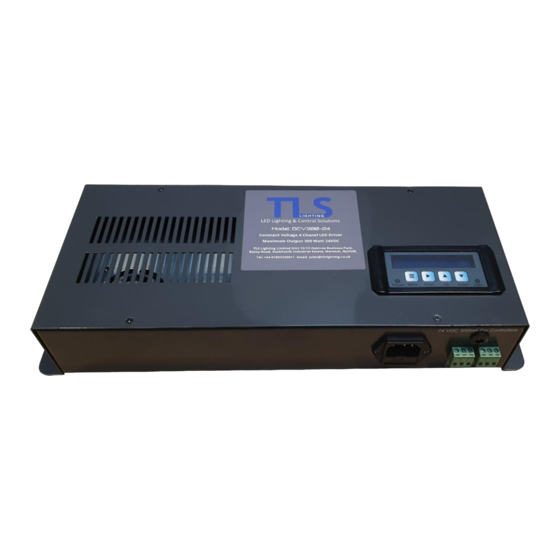

  • Page 1 DCV-300 DMX LED Tape Driver V5.0...
  • Page 2 Contents – Warnings ..........................3 1.0.1 – Read Me ..........................3 1.0.2 – Power ............................4 1.0.3 – IP Rating ..........................4 2.0 – Installation............................4 2.0.1 – Location ........................... 4 2.0.2 – Fixings ............................4 2.0.3 – Power ............................4 2.0.4 –...
  • Page 3 1.0 – Warnings 1.0.1 – Read Me WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before the initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •...
  • Page 4 2.0.2 – Fixings The DCV-300 requires 4 securely mounted screws to hold it in place on a wall or a stable surface. We recommend using wall plugs for extra security. Items damaged by improper installation are not covered under the warranty.
  • Page 5 Please ensure you are connecting the correct terminals to the correct wires on the LED tape, wiring the tape incorrectly can damage both pieces of equipment. The common positive load should be split across the two common terminals on the DCV-300 to avoid damaging the connector. You can connect a maximum of 150W per common terminal.
  • Page 6 3.0.2 – System Modes System mode enables different types of control and is set in the system mode menu which is accessed by pressing the menu button repeatedly to cycle settings. 1. DMX – For DMX control. 2. Sound – For sound auto control. 3.
  • Page 7 3.0.6 – Sound Modes & Settings For standalone Sound control 1. RGB Step Dim & sensitivity (controlled in UI) 2. RGBW Step with dim and sensitivity (controlled in UI) 3.0.7 – Auto Modes & Settings For standalone auto control. 1. RGB fade with Dim + Speed control (controlled in UI) 2.
  • Page 8 For installation and technical support please contact us on 01603 295 011 or email info@tlspixelite.co.uk or visit www.tlspixelite.com. TLSPixelite Limited – all rights reserved.
