H-3049
INDUSTRIAL ELECTRIC
PRESSURE WASHER

TOOLS NEEDED

3⁄4" Wrench

VENTED OIL CAP

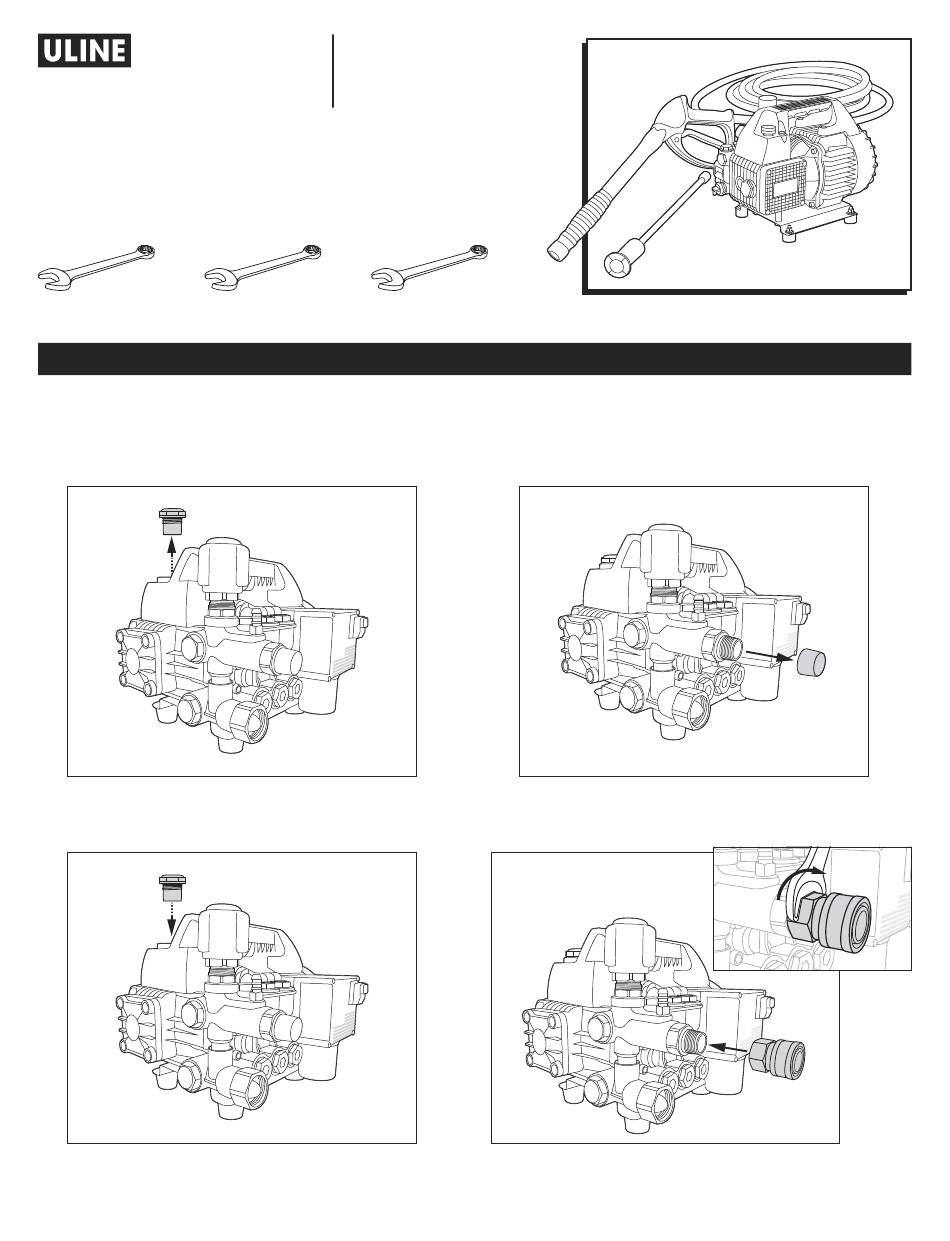

1. Remove red unvented shipping cap as shown.
(See Figure 1)
2. Replace with yellow vented oil cap found in
accessory bag. (See Figure 2)
PAGE 1 OF 6
1-800-295-5510
uline.com
7/8" Wrench
1" Wrench
QUICK ASSEMBLY GUIDE
Figure 1
Figure 2

QUICK CONNECT

1. Remove red cap from outlet as shown.
(See Figure 3)
2. Screw on quick connect found in accessory bag.
Tighten with 1" wrench. (See Figure 4)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Figure 3
Figure 4
0621 IH-3049
