ALESSI Firebird 2.0 GV34 - Electric Arc Lighter Manual

Introduction

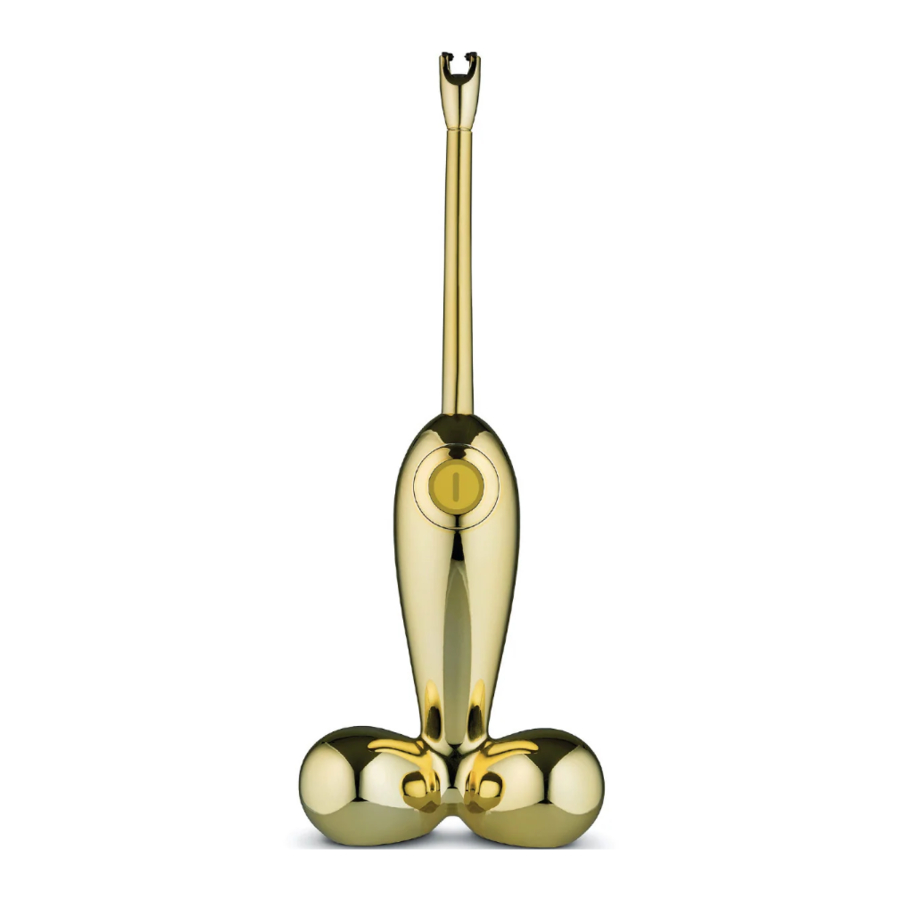

The "Firebird 2.0" electric arc lighter was designed by Guido Venturini in 2020.

There are two versions: one in coloured thermoplastic resin and one in thermoplastic resin with a PVD coating.

The lighter is powered by a USB-rechargeable battery.

Power adapter input: 5V 1A
Output voltage: 7.5 - 7.8KV
Output current: 3.0A - 3.2A
Battery: Li-ion polymers 3.7V - 250mAh
Storage/operating temperature: -10°C to +45°C

Important warnings

• THIS PRODUCT IS NOT A TOY.
• To avoid fires, burns, injuries and electric shock, KEEP THE PRODUCT OUT OF THE REACH OF CHILDREN AND HANDLE WITH CARE.
• Never touch the lighter tips, due to the risk of high temperatures and/or of electrical currents.
• Never leave the arc lighter near flames or sparks.
• Keep the lighter away from the face, skin and clothing.
• The lighter must be stored far from sources of heat as the electronic components inside may be damaged.
• Always check that the electric arc has turned off completely.
• Do not immerse the product in water or other liquids. The product is designed for use exclusively in dry settings. Do not use the product under the rain, or in humid settings.
• Never use the device if it has been damaged or has suffered an impact or a fall.
• This product is only meant for household use.
• Keep the lighter far from other people.
• Always disconnect the device from the mains and turn the safety switch to the OFF position before cleaning the tips.
• Before using the lighter, read and follow the instructions carefully. Store the instructions and refer to them for as long as the product is used.
• Never use the product for anything other than its intended purpose. Alessi is in no way responsible for damage caused by improper use (including the use of an unsuitable adapter).
• Do not use voltages other than the voltage specified on the product.
• Only use adapters that comply with applicable safety regulations (adapter IEC 61588-2-6).
• Should the device be damaged or malfunction, do not disassemble the product, disconnect it and refer to your trusted Alessi dealer.
• The product complies with the LVD Directive (2014/30 / EU), the EMC Directive (2014/35 / EU) and the RoHs Directive (2011/65 / EU - 2015/863 / EU)

Description of the Device

(fig. 1)

1. Electric arc lighter in thermoplastic resin
2. Shaft
3. Power button
4. ON/OFF safety switch
5. Micro USB connector
6. Power cable
7. Charger plug or micro USB

Note. The package includes: Electric arc lighter, Power cable, User manual, WEEE and Warranty

Instructions for use

First Use

After having removed the product from the packaging, check that it is in perfect condition. Charge the battery before using the product.

How to charge the battery

(fig. 2)

Always check that the safety switch is in the OFF position.

Plug the charging plug (G) into the micro USB connector (E) located on the back of the product (fig. 2A).

Charging with an adapter: connect the power cable (F) to the adapter and connect it to a mains socket (fig. 2B);

or
charging by USB: connect the power cable (F) to a USB slot.

Note: when charging the power button (C) remains on until the battery has finished charging. It takes about 30 minutes for the battery to charge, whether using an adapter or charging it from a computer.

Disconnect the lighter as soon as it finishes charging to avoid excess voltage, which could reduce the life span of the battery. The battery housed in the lighter has a long life span and cannot be replaced by the end user. If necessary, refer to your trusted Alessi dealer.

Use

Take hold of the lighter and change the position of the safety switch (D) located on the back of the lighter to ON (fig. 3A).

Bring the tips - located on top of the thermoplastic rubber shaft (B) - near the object you wish to light, press the central power button and hold for a few seconds. The power button will light up to show that the lighter is in operation (fig. 3B).

A high-temperature electric arc will be visible between the two tips and will light the given object. A light buzzing sound "zee zee" (fig. 3C) will also be heard. For safety purposes, the electric arc will turn off automatically after a maximum of 8 seconds.

After having used the lighter, return the safety switch to the OFF position.

The "Firebird 2.0" is a self-standing lighter; place it in a vertical position after use. Thanks to the long shaft, the lighter can be used to light candles, incense, paper, gas hobs and other rapidly combustible materials, even when they are in hard to reach positions.

Do not bend the shaft (B) at a 90° angle Do not use the electric arc lighter to light plastic or rubber materials as these may melt and keep the lighter from functioning properly.

The lighter can be used both indoors and outdoors.

Maintenance and Cleaning

Always check that the safety switch is in the OFF position before cleaning.

Always disconnect the device from the mains.

Use a soft dry cloth to clean the electric arc lighter.

Remove any ash or residue from the tips to guarantee that it will operate correctly; be careful not to damage the terminals housed inside the tips.

Do not subject the terminals present in the ceramic tips to mechanical stress.

Do not use on plastic or rubbery materials, which may melt and interfere with the functionality of the product.

Never wash the lighter by immersion and never place it under running water.

Don't use detergents that contain abrasives. In the event of a malfunction refer to your trusted Alessi dealer. Repairs carried out by unauthorised persons may compromise the safety of the product.

Warranty

This product is under warranty for two years from the date of the sale: The warranty covers all manufacturing defects. Damage caused by accidental impact and improper use is not covered.
