AmazonBasics GF-80519H Manual

Semi-assembled office chair
Hide thumbs

Advertisement

Quick Links

Download this manual
AmazonBasics Semi-Assembled Office Chair
250 lbs

Advertisement

loading
Need help?

Need help?

Do you have a question about the GF-80519H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AmazonBasics GF-80519H

Summary of Contents for AmazonBasics GF-80519H

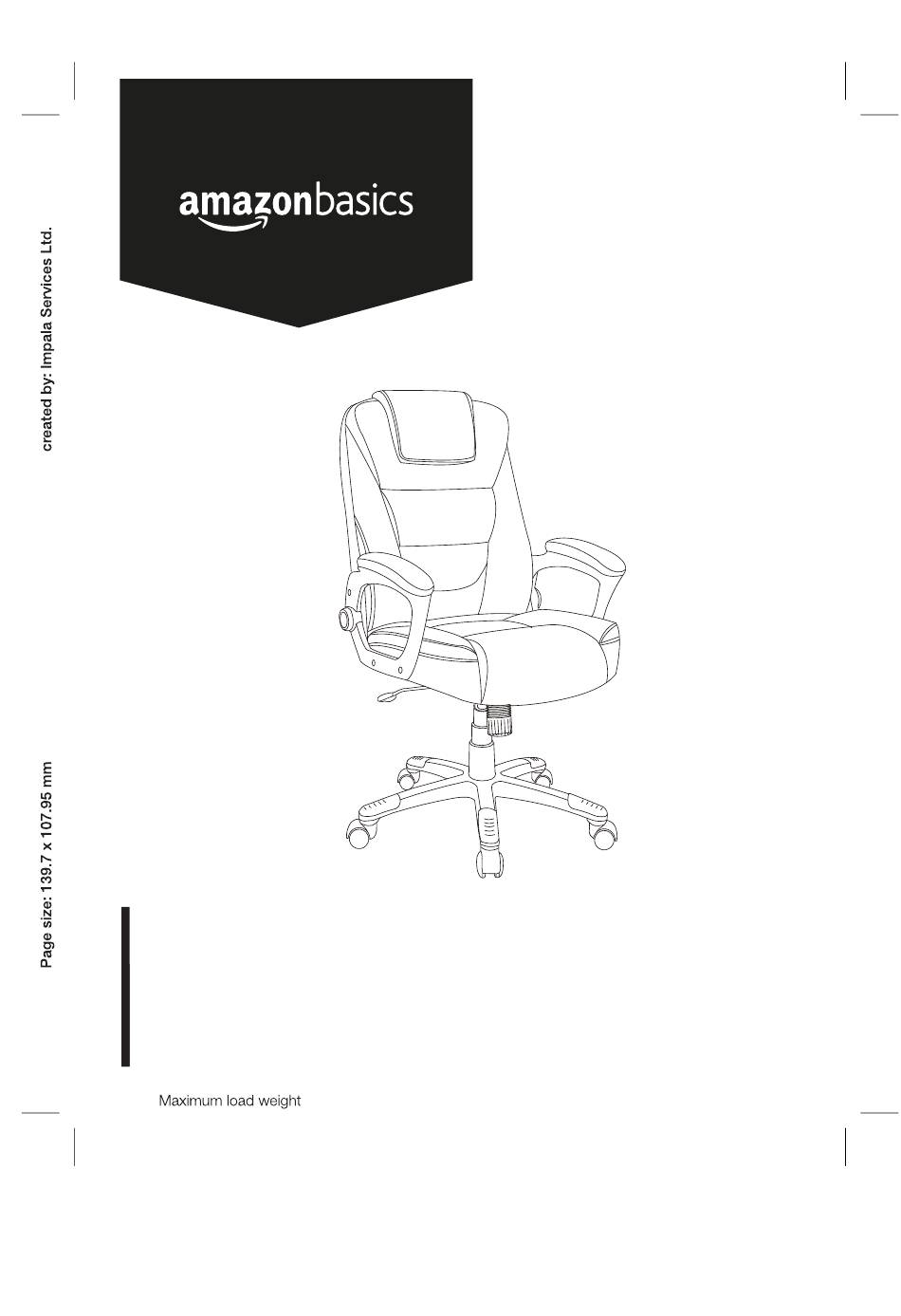

  • Page 1 AmazonBasics Semi-Assembled Office Chair 250 lbs...
  • Page 3 AmazonBasics Semi-Assembled Office Chair Seat Cushion Back Cushion Arm rest Seat Plate Gas Lift & Cover Star Base Casters Screws Caps Wrench...
  • Page 4 Turn the base upside down and press the casters into the holes on the legs as shown.
  • Page 5 Place the base upright and insert the gas lift with cover into the base as shown.
  • Page 6 Step 3: Attach the seat plate to the seat cushion with four (A) screws. Make sure the seat plate faces to the front. Tighten the screws with the wrench (C).
  • Page 7 Step 4: Align the central hole of the seat plate over the gas lift, Press down until the connection is secure.
  • Page 8 Step 5: Push the back cushion to upright position as shown, make sure the tools-free pins lock into place.
  • Page 9 Step 6: Press the caps(B) into the arm holes to cover the bolts.
  • Page 10 Function To Adjust the Seat Height Control handle To raise your seat, lean forward to lift your body weight from the seat, then pull up the control handle. To lower the seat, pull up the control handle while seated.
  • Page 11 Function To Perform Tilt / Tilt Lock To Adjust the Tilt Tension Tension Knob Control Handle To unlock the tilt, pull the control handle all the way out; Push the control handle in to lock the tilt function. Rotate the tension knob clockwise to tighten or counter-clockwise to loosen the tension.
  • Page 12 Function Folding the Back Cushion Knob Turn the arm knob and press down the back cushion at the same time to fold the back cushoin.
  • Page 13 Select at the Use a dry cloth to remove dirt. with with 18.2 kg / 40.12 lbs...
  • Page 14 on the chair. This office chair is alternative between Type I and Type III. Your office chair is equipped with casters for all types of flooring. 250 lbs.
