AmazonBasics B07GF54KV8 Quick Start Manual

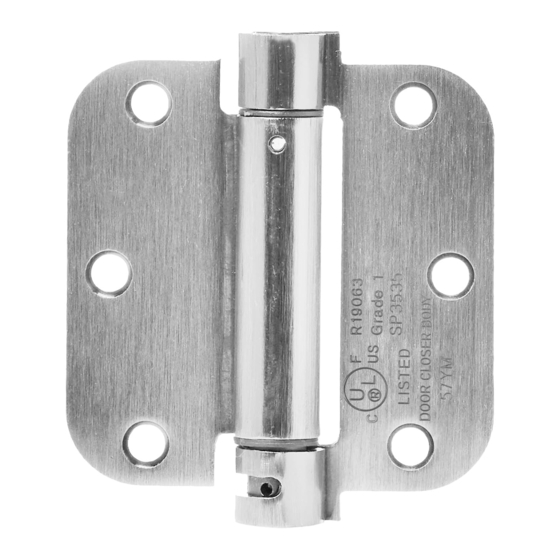

Self-Closing 3.5" x 3.5" Door Hinge - 1 Piece
Bisagra de Puerta de Cierre Automático 8.9 x 8.9 cm (3,5 x 3,5 po) - 1 Pieza
Charnière De Porte à Fermeture Automatique 8.9 x 8.9 cm (3,5 x 3,5 po) - 1 Pièce
B07GF54KV8, B07GDS15KG, B07GF583PV, B07GFBZ974, B07GF54QVJ
A
Hex wrench
Llave hexagonal
Clé hexagonale
Adjustment holes
Orificios de ajuste
Trous de réglage
Tension adjustment rod (TAR)
Varilla de ajuste de tensión (VAT)
Tige de réglage de tension (TAR)
EN
Caution
This product contains small items that could be a choking hazard if swallowed.
Keep these items away from young children.
• Make Sure these instructions are read and completely understood before
attempting installation. If you are unsure of any part of this installation,
please contact a professional installer for assistance.
NOTICE
Do not adjust the tension past three holes for a 180° door
opening or four (4) holes tension for a 90° opening.
Always position the tension bar to the left regardless of whether
it is being applied to a right or left-hand door.
CAUTION Use proper safety protection when installing and adjusting the
soft closing door hinge.

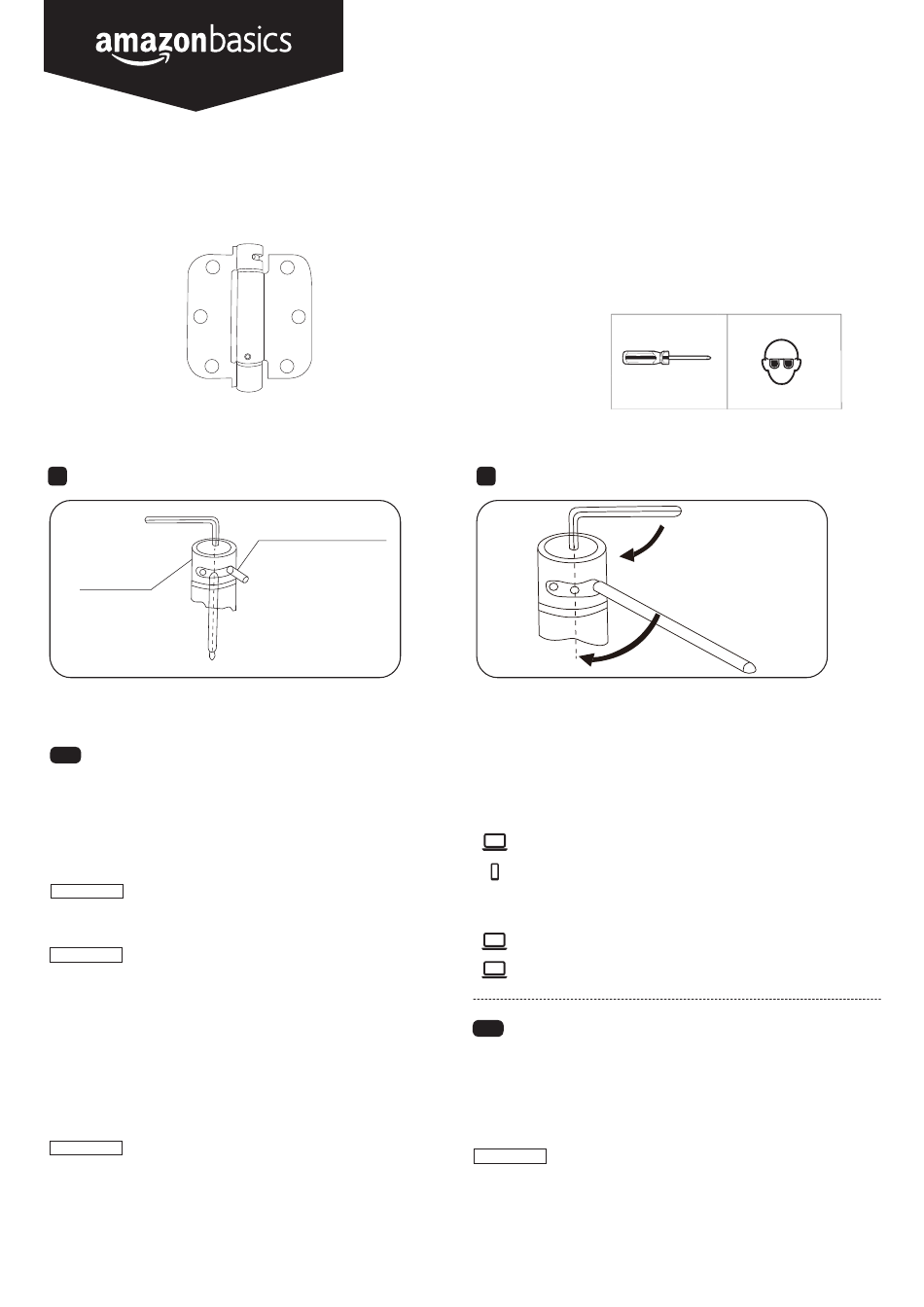

Step 1: Install the hinge to the door and frame with its adjustment head in the
upward position.
Step 2: Close the door.
Step 3: Insert the hex wrench into the Hex Hole as shown in figure A.
Step 4: Rotate the hex wrench (clockwise) and insert the TSP into the first hole
you see as shown in figure A.
Step 5: Allow the hex wrench to turn back (counter clockwise) until the TSP
makes contact with the right hand side of the TAR.
Step 6: Remove the hex wrench and test door for closing cycle and force.
Step 7: If the door doesn't close, repeat steps 2 through 6 until the door closes.
NOTICE Do not adjust the tension past 3 holes when a 180° opening is
required. Do not adjust the tension past 4 holes when a 90°
opening is required.
Step 8: After final adjustment, break/cut the (TSP) flush with the hinge barrel.
Tension stopper pin (TSP)
Pasador de tope de tensión (PTT)
Broche d'arrêt de tension (TSP)
B
Warranty Information
To obtain a copy of the warranty for this product:
amazon.com/AmazonBasics/Warranty
+1-866-216-1072
Feedback and Help
Love it? Hate it? Let us know with a customer review.
amazon.com/review/review-your-purchases#
amazon.com/gp/help/customer/contact-us
ES
Atención
Este producto contiene objetos pequeños que podrían ser un riesgo de asfixia en
caso de tragarse. Mantenga estos objetos alejados de niños pequeños.
• Asegúrese de leer y comprender completamente estas instrucciones antes
de intentar la instalación del producto. Si no está seguro sobre alguna pieza
o sobre la instalación, contacte a un instalador profesional para obtener ayuda.
AVISO No ajuste la tensión a más de tres orificios para una apertura de la
puerta de 180° o de cuatro (4) orificios para una apertura de 90°.
Coloque siempre la barra de tensión hacia la izquierda,
independientemente de si se trata de una puerta que abre a la
derecha o a la izquierda.
