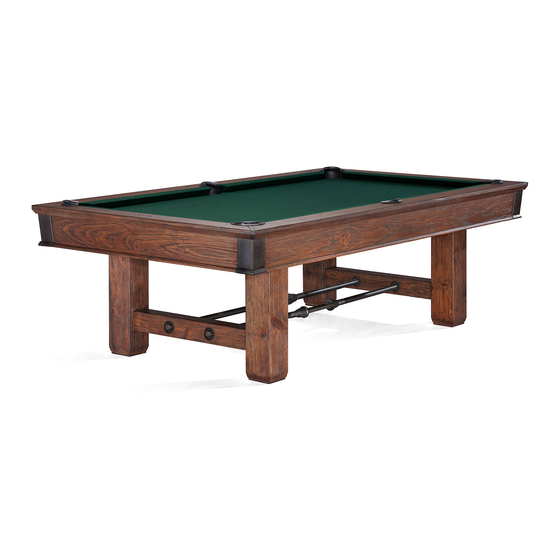

- Page 1 Canton™ Canton™ POCKET BILLIARD TABLE INSTALLATION MANUAL www.brunswickbilliards.com SERVICE DEPARTMENT P.O. BOX 68 BRISTOL, WI 53104 EMAIL: BRUNSWICKSERVICE@BRUNSWICKBILLIARDS.COM 51-906261-000 January 2017...
- Page 2 NOTE: Please use the instructions in this manual to assemble the tables shown below. Illustrations may be different depending on the table being assembled. Also note that careful handling of all components will assure damage-free assembly. PAGE 2 BRUNSWICK INSTALLATION MANUAL...
- Page 3 “B” as shown using 5/16-18 x 3-1/2” hex head screws, 5/16 at washers and 5/16 hex nuts. 5/16-18 x 2-1/2” HEX HEAD SCREW 5/16 FLAT WASHER 5/16-18 x 2-1/2” 5/16 FLAT 5/16-18 HEX HEAD SCREW WASHER FLAT NUT FIGURE THREE BRUNSWICK INSTALLATION MANUAL PAGE 3...
- Page 4 The span at each foot should be equal to the span at the top of each leg that has been bolted to each side sill. 3/4 WASHER 3/4 WASHER 3/4-10 x 2” HEX HEAD SCREW FIGURE SIX PAGE 4 BRUNSWICK INSTALLATION MANUAL...
- Page 5 FIGURE SEVEN Step #11: Square the baseframe by using the carpenter’s square or measuring the diagonal corners. The diagonal measurements should not vary over 1/8”. With the tables square, securely tighten all remaining hardware. FIGURE SEVEN BRUNSWICK INSTALLATION MANUAL PAGE 5...
- Page 6 Step #6: Securely fasten the end slate sections at both ends of the table with 1/4 x 1-3/4” at head screws for UN- PENCIL FRAMED slate or #14 x 2-1/2” at head screws for FRAMED slate. FIGURE THREE PAGE 6 BRUNSWICK INSTALLATION MANUAL...
- Page 7 1-1/2” wide by 8” long and glue the strips to the pocket cutouts. This is important as this will provide cushioning from ball impact and the bed cloth will last much longer. FIGURE FIVE BRUNSWICK INSTALLATION MANUAL PAGE 7...
- Page 8 #5 and toward the side pocket from #2 and tack or staple at #7. Step #10: Repeat Step 7, stretching from #6 and toward the side pocket from #4 and tack or staple at #8. FIGURE THREE PAGE 8 BRUNSWICK INSTALLATION MANUAL...
- Page 9 NOTE: Occasionally cloth will stretch, leaving wrinkles at the pock ets. To retighten, remove apron, one end rail and one side rail. Pull cloth taut, and retack or restaple along the open end and side to restore original tightness. FIGURE SEVEN BRUNSWICK INSTALLATION MANUAL PAGE 9...
- Page 10 Step #6: Turn rail over and at corner pockets fold the cloth over the mitred edge as shown, stretching tightly and working out any wrinkles as you staple three places in area shown. FIGURE FIVE PAGE 10 BRUNSWICK INSTALLATION MANUAL...
- Page 11 Step #12: Hold the small fold in place with thumb and forenger and rmly hold it down over facing. Then staple at rear of facing and at bottom of rail as shown. Step #13: Trim excess cloth as required. FIGURE TEN BRUNSWICK INSTALLATION MANUAL PAGE 11...
- Page 12 Step #8: Align each apron corner with the corner bracket. Side Apron While holding each joint tight, securely fasten corner with #8 x 5/8” pan head screws and #8 at washers. Step #9: Securely tighten all remaining hardware. FIGURE THREE PAGE 12 BRUNSWICK INSTALLATION MANUAL...
- Page 13 Step #16: Thoroughly brush the area on which the bed spots are to be applied. Position the bed spot and rmly roll a ball over the spot to achieve good adhesion. HEAD SPOT NOTE: Bed spots are self adhesive. HEAD FIGURE FIVE BRUNSWICK INSTALLATION MANUAL PAGE 13...
