- Page 1 User Guide IQSocket IQSB-GSM900 Version v1.0 rev6, firmware v.2.0.2 User guide www.IQtronic.com...
-
Page 2: Table Of Contents
1.1 Important information ..............4 2 Introduction ..............5 2.1 Product features ................6 3 Installation..............7 3.1 Inserting SIM Card ...............7 3.2 Wiring the IQsocket IQSB-GSM900 ..........8 3.2.1 Outputs wiring..............8 3.2.2 Inputs wiring ................9 3.2.3 Power supply wiring ............10 3.3 Powering IQSB-GSM900 On ............11 4 Managing IQSB-GSM900..........12... - Page 3 ©2011 IQtronic, Ltd Page 3 of 35...
-
Page 4: Important Information
©2011 IQtronic, Ltd Important information Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without further notice. -
Page 5: Introduction

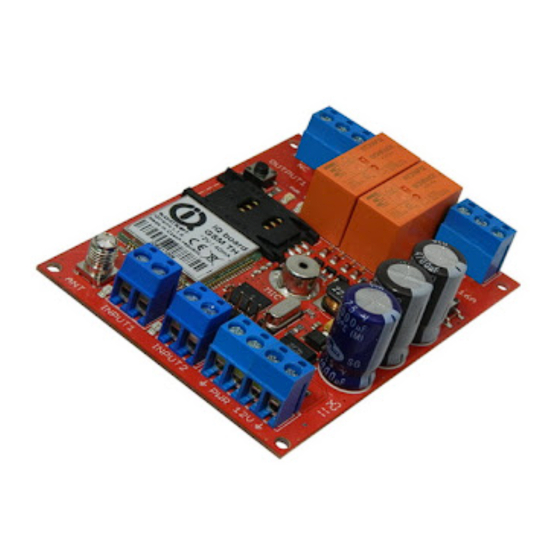

2 Introduction IQsocket IQSB-GSM900 is an embeddable member of family of intelligent power sockets brought to you by IQtronic, Ltd. It comes in form of PC board for both standalone use or embedded inside your product. IQsocket IQSB-GSM900 allows you to control any electric appliances connected to the device’s two power relays remotely over GSM network. -
Page 6: Product Features
©2011 IQtronic, Ltd Besides controlling power, IQsocket IQSB-GSM900 is equipped with a choice of useful functions, including: • Remote monitoring of environment using on-board temperature and relative humidity sensors • Remote monitoring of status of two digital inputs, tailored to connect with external sensors such as PIR motion detectors, door contacts, water level sensors and so on. -
Page 7: Installation
Place the SIM card inside, observing proper orientation (3) o Close the retention latch and then lock by gently sliding to the left (4) To remove SIM from your IQsocket IQSB-GSM900, repeat the same steps. WARNING! PIN authorization should be turned off before the SIM card is... -
Page 8: Wiring The Iqsocket Iqsb-Gsm900
IQsocket IQSB-GSM900. Note… It is highly recommended to delete all received SMS messages, stored on the SIM card before using it in IQsocket IQSB-GSM900 Wiring the IQsocket IQSB-GSM900 This section describes wiring of the IQsocket IQSB-GSM900. -
Page 9: Inputs Wiring
©2011 IQtronic, Ltd 3.2.2 Inputs wiring Input1 and Input2 each have two pin terminal block for connection of external sensors. Inputs are optically isolated. Input can have one of two states – Log.1 (active, high, true) and Log.0 (inactive, low, false). -
Page 10: Power Supply Wiring
©2011 IQtronic, Ltd 3.2.3 Power supply wiring The IQSB-GSM900 supports power supply 8-24VDC or 6-16VAC. A 12VDC AC adapter is included in the product package. Current consumption is max. 40mA, typical average value is 20mA @ 12VDC. AC voltage power supply AC voltage should be always connected only to the middle pins. -
Page 11: Powering Iqsb-Gsm900 On
©2011 IQtronic, Ltd Powering IQSB-GSM900 On Upon completion of wiring and installation, apply power via an external power supply. If using the supplied AC adapter, simply plug it into a live electrical socket. You can verify operation by observing the LED indicators: •... -
Page 12: Managing Iqsb-Gsm900
©2011 IQtronic, Ltd 4 Managing IQSB-GSM900 This chapter guides you through management commands and features of IQSB- GSM900. Managing by SMS Commands are send in form of SMS messages to call number of SIM card inserted into your device. Messages have following syntax: (e.g. - Page 13 ©2011 IQtronic, Ltd All incoming SMS messages longer than 30 characters or messages containing space and dot characters are being deleted without any error response. SMS Command Description SMS Response Type TURNOFF Turn both Output1 and Output2 off TurnedOff Ctrl...
-
Page 14: Managing By Phone Call
©2011 IQtronic, Ltd 30minutes and restored back say after 2hours, appliance will be running for half an hour after power is restored back. Managing by phone call The output socket of IQSB-GSM900 can be also controlled by dialing/ringing up the number of its SIM card. Call is for most commands rejected by IQSB- GSM900 so its use is free of charge, with exception for listening sounds using embedded Microphone. - Page 15 ©2011 IQtronic, Ltd In order to use DTMF control, it is necessary to enable it using RING=DTMF command, as is described in previous chapter. Then you can make call to your IQSB-GSM900. Call will be answered and you will hear a short (1s) high tone (like if key 9 pressed) indicating DTMF control is ready.
-
Page 16: Manual Control
• Reset to default settings, please see chapter 6.1 for more information Note… Manual control by pressing of the push button become active after 30 seconds since IQsocket IQSB-GSM900 is powered on. A SIM card must be inserted in the SIM bay. Page 16 of 35... -
Page 17: Timing Setup
©2011 IQtronic, Ltd Timing setup Some of the IQSB-GSM900 features use a predefined time intervals, which can be changed by SMS configuration commands. 4.4.1 RESTARTTTIME Following table summarizes settings of time interval of RESTART command: SMS Command Description SMS Response... -
Page 18: Date/Time Setup
– it will be done automatically during each IQSB-GSM900 startup. Security features IQsocket IQSB-GSM900 is equipped with advanced authorization features to avoid controlling by unauthorized users. The security features include: • Allowing control only from authorized phone numbers •... - Page 19 SIM card (and SMS pin in case PIN code protection is also active). IQsocket IQSB-GSM900 allows to define up to 20 permitted phone numbers, each containing up to 15 numerals. In case of using SMSPIN, right before each SMS command is placed PIN code...
-
Page 20: Response Messages Settings
65440655. 421 is country code in this example and 2 is area code. Response messages settings When you communicate with your IQsocket IQSB-GSM900, it is important to make you sure if command was understood and executed successfully. For this purpose we implemented response messages, confirming each command or informing you when an error is detected.
