User
Guide
IQSocket IQTS-IP200
Version v.0 rev0
User guide
www.IQtronic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQSocket IQTS-IP200 and is the answer not in the manual?

Questions and answers

Related Manuals for iQtronic IQSocket IQTS-IP200

Summary of Contents for iQtronic IQSocket IQTS-IP200

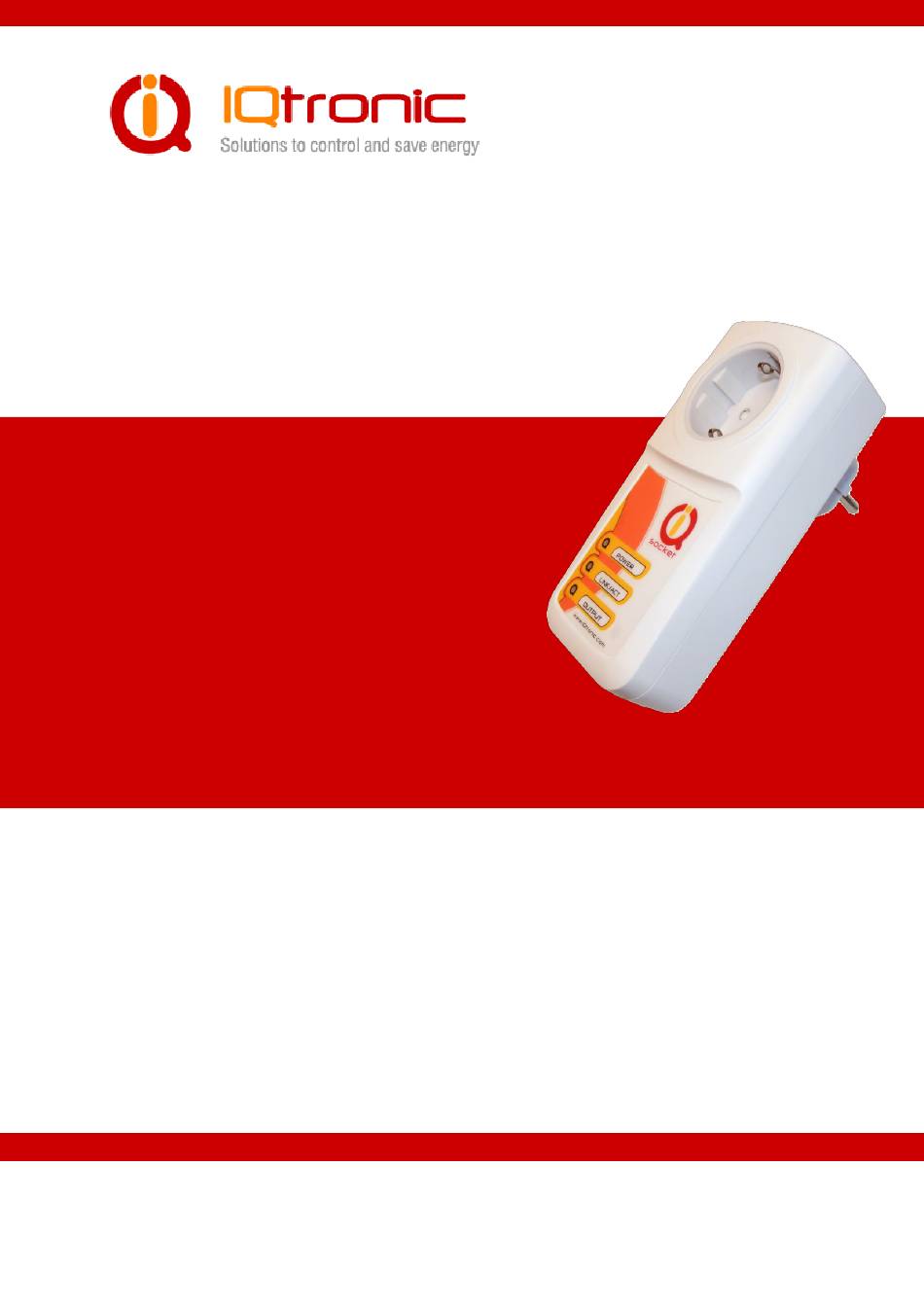

  • Page 1 User Guide IQSocket IQTS-IP200 Version v.0 rev0 User guide www.IQtronic.com...

  • Page 2: Table Of Contents

    Important information................3 1 Introduction ..............4 1.1 Product features ................5 2 Installation ..............6 2.1 Wiring the IQsocket IQTS-IP200 ............. 6 2.2 Powering IQTS-IP200 On ............... 7 3 Managing IQTS-IP200 ............. 8 3.1 Setting IP addresses ..............8 3.2 Managing by web browser ..............

  • Page 3: Important Information

    ©2015 IQtronic technologies Europe s.r.o. Important information Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without further notice.

  • Page 4: Introduction

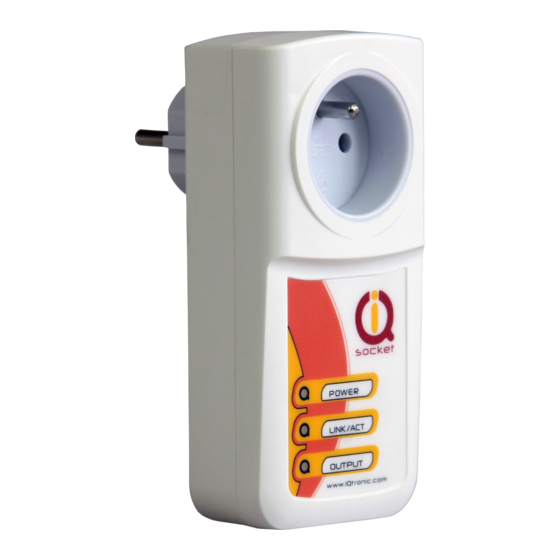

    ©2015 IQtronic technologies Europe s.r.o. 1 Introduction IQsocket IQTS-IP200 is a member of family of intelligent power sockets brought to you by IQtronic, Ltd. IQsocket IQTS-IP200 allows you to control of any electric appliance connected to the device’s socket remotely over any IP network, including internet. You can use for this purpose any device supporting internet browser (HTTP protocol) such as PC, smartphone etc) or using SNMP protocol.

  • Page 5: Product Features

    ©2015 IQtronic technologies Europe s.r.o. 1.1 Product features In general, IQsocket IQTS-IP200 has following features:  Controlling (turn on, turn off; restart by cutting power for short time) of any electric appliance connected to the switched socket by HTTP and...

  • Page 6: Installation

    Before starting installation, please read this manual and take into account Important information section at beginning of this manual. 2.1 Wiring the IQsocket IQTS-IP200 Wiring is intuitive, simply wire RJ-45 jack into your Ethernet network using cross cable, then connect your electric appliance to the device’s socket and plug the IQTS-IP200 into a free electric socket.

  • Page 7: Powering Iqts-Ip200 On

    ©2015 IQtronic technologies Europe s.r.o. 2.2 Powering IQTS-IP200 On Once you plug your IQsocket IQTS-IP200 into a live electric socket, it become powered on and starts operation. You can verify it by observing status of the LEDs:  Once AC power is connected, all three LED indicators will blink shortly and internal self-test is performed.

  • Page 8: Managing Iqts-Ip200

    3 Managing IQTS-IP200 This chapter guides you through management and configuration of IQTS-IP200. Your IQsocket IQTS-IP200 is equipped with an internal web server, which provides an easy to use, intuitive and convenient way of management. You can both set up configuration and operation parameters and get information about device’s status.

  • Page 9: Status Page

    ©2015 IQtronic technologies Europe s.r.o. 3.2.1 Status page Provides summary of device status: Explanation of parameters: Section System information provide basic status information, such as Device name and Location, info on time, firmware version, Ethernet MAC address and temperature reading of internal temperature sensor.

  • Page 10: Network Configuration

    ©2015 IQtronic technologies Europe s.r.o. 3.2.2 Network configuration Here you can configure networking and security parameters: Explanation of parameters: Page 10 of 36...
  • Page 11 ©2015 IQtronic technologies Europe s.r.o. IP address You can setup IP networking parameters such as IP address, Network mask Default Gateway, DNS servers; please ensure to enter proper values. Please note it is necessary to define a fixed IP address even if case you are using a DHCP environment.
  • Page 12 ©2015 IQtronic technologies Europe s.r.o. Password protection You can change/define a login username and password for protecting access to web interface. It comes with no password by default. Note… If you want to disable password protection, enter blank login password.

  • Page 13: Test Rules - Watchdog Function

    ©2015 IQtronic technologies Europe s.r.o. 3.2.3 Test rules – watchdog function You can configure here automatic watch dog function based on assessment of ICMP packet lost to selected IP host: Basically, you can define up to three test rules, two with numerical IP address of evaluated host, third rule can be defined using host name, and it’s IP...
  • Page 14 ©2015 IQtronic technologies Europe s.r.o. logical OR or logical AND operations over the results (output control event requests) of particular rules. Defining rules Each rule can be enabled or disabled by checking the checkbox. Enter IP address (Rule 1, Rule 2) or host name in case of the Rule 3, then size of ICMP frames, maximum allowed packet loss in % and Packet timeout interval, time how long will device wait for answers from the host –...
  • Page 15 ©2015 IQtronic technologies Europe s.r.o. Restart socket hold time determines time interval how long is cut power of the output socket during a restart attempt. Number of packets to evaluate represents how many test packets is used for evaluation of packet loss.
  • Page 16 ©2015 IQtronic technologies Europe s.r.o. Diagram of rules evaluation All referenced values come from Test rules settings page. Request means testing ICMP packets sent to the target host; response means received ICMP answers from the target host. Page 16 of 36...

  • Page 17: Utility

    ©2015 IQtronic technologies Europe s.r.o. 3.2.4 Utility This page gives you possibility to restore factory default configuration, reboot device, upgrade firmware and clear statistics data: Restoring default configuration Restore default configuration will revert all settings to the factory default values. It is necessary to reboot the device in order to activate new values...
  • Page 18 ©2015 IQtronic technologies Europe s.r.o. Clearing statistics Clear statistic data will erase all collected statistics data displayed in Status page. Firmware upgrade Using Browse button select file containing new firmware and then click to Upload. Upgrade process will take about 50 seconds, which is indicated by fast...

  • Page 19: Control Socket

    ©2015 IQtronic technologies Europe s.r.o. 3.2.5 Control socket Here you can control the output socket manually and schedule automatic actions based on date/time. Socket status Top of the page contains status row displaying current status of the socket: Page 19 of 36...
  • Page 20 ©2015 IQtronic technologies Europe s.r.o. Manual control Simply click to the buttons to turn on, turn off and restart (change current state to opposite one temporary for given number of seconds). Scheduler This feature allows you to schedule output socket status, up to 50 records are supported.
  • Page 21 ©2015 IQtronic technologies Europe s.r.o. So scheduler will every day at 20:00 turn the output socket off, turn it on daily at 21:00 and restart it on daily at 22:00 for option: Time for restart output (Network settings). You can use any combination of days of week, such as:...

  • Page 22: Logging

    ©2015 IQtronic technologies Europe s.r.o. 3.2.6 Logging This page display events recorded in the event log: Event log can contain up to 50 records, oldest records being rewritten when log is full. Automatically are recorded socket change events and firmware upgrade, optionally Ethernet link status and device startups, which can be configured in Network configuration menu.

  • Page 23: Quick Setup

    ©2015 IQtronic technologies Europe s.r.o. DEVICE OVERHEAT Overheat condition, allowed internal temperature is 50°C. TURN ON by BUTTON socket has been turned on by the push button TURN OFF by BUTTON socket has been turned off by the push button...

  • Page 24: Automatic Correction Of Parameter Values

    3.3 SNMP IQsocket IQTS-IP200 contains support for SNMPv1.0 protocol, which makes possible to integrate it into any SNMP management suite. Advantage is also very small volume of data trafic required for SNMP. You can both monitor...
  • Page 25 ©2015 IQtronic technologies Europe s.r.o. status and statistics using the GET commands and control output socket by using the SET command. SNMP MIB table: SNMP MIB table can be displayed at any time via WEB configuration interface by clicking to „For MIB INFO click here, please“ link in Network configuration page (see chapter 3.2.2, where you can enable/disable SNMP, setup SNMP-...

  • Page 26: Example - Using Snmp Under Os Windows

    ©2015 IQtronic technologies Europe s.r.o. 3.3.1 Example - using SNMP under OS Windows There is plenty of SNMP utilities available under Windows OS, for example iReasoning MIB browser (www.ireasoning.com) or PRTG Network Monitor (www.paesler.com). After installation of software, let’s run it and configure it to work with IQsocket IQTS-IP200: Enter IP address of the IQTS-IP200 (default value 192.168.0.100) and click to...
  • Page 27 ©2015 IQtronic technologies Europe s.r.o. In order to control the output socket of the IQTS-IP200, use menu SET: Value 0 means turn off; 1 means turn on. After successful command execution, a confirmation message will be displayed: Page 27 of 36...

  • Page 28: Example - Using Snmp Under Os Linux

    ©2015 IQtronic technologies Europe s.r.o. 3.3.2 Example - using SNMP under OS Linux Thanks to extensive support of SNMP in Linux OS, we can directly use commands snmpget and snmpset: Obtaining status of the output socket: (IQTS-IP200 is on IP 192.168.2.54 in this example: Returned value 1 means socket is turned on;...

  • Page 29: Status Data In Xml Format

    ©2015 IQtronic technologies Europe s.r.o. 3.4 Status data in XML format IQsocket IQTS-IP200 contains status page in XML format, it can be accessed at <IP-address>/status.xml. You can select if this page will be protected by password on not by setting exceptions at Network configuration page, see chapter 3.2.2.
  • Page 30 ©2015 IQtronic technologies Europe s.r.o. Simply connect your IQTS-IP200 with your computer or local Ethernet network using supplied cable and run the IQLocator.exe. After clicking to Scan button, a list of found devices will be displayed: In order to change device IP address, select particular device by clicking to the row and then click to button “SET IP addresses”...
  • Page 31 ©2015 IQtronic technologies Europe s.r.o. Green Link LED indicator will blink during upload process. When upload is finished, a confirmation message “Successful” will appear and now it is necessary to wait about 30seconds till internal firmware rewrite procedure finishes, during which the Power LED (red) will blinking fast. Then an automatic reboot of device will be performed and device is ready for use now.

  • Page 32: Indicators

    ©2015 IQtronic technologies Europe s.r.o. 4 Indicators The IQsocket IQTS-IP200 is equipped with three LED indicators: POWER BLINKS RED 1x PER SECOND Input power and operation OK BLINKS RED FAST Firmware upgrade in progress, do not remove power! LINK/ACT LIGHTS GREEN...

  • Page 33: Output Socket Wiring Diagram

    ©2015 IQtronic technologies Europe s.r.o. 5 Output socket wiring diagram Device uses a single pole relay switch, so it is not performing safe power disconnection of the appliance plugged into socket, only functional switching is performed. 6 Reset to factory default using push button Each device come from factory preconfigured with factory default values.

  • Page 34: Technical Specification

    ©2015 IQtronic technologies Europe s.r.o. 7 Technical specification Model IQsocket IQTS-IP200-E, CEE 7/5 French type socket IQsocket IQTS-IP200-F, CEE 7/4 "Schuko” earthed IQsocket IQTS-IP200-N, NEMA 5-15 USA socket IQsocket IQTS-IP200-B British BS 1363 Mains power 90-250VAC / 50-60Hz, own consumption 3Watts...

  • Page 35: Operation, Maintenance And Safety Recommendations

    ©2015 IQtronic technologies Europe s.r.o. 7.1 Operation, maintenance and safety recommendations  Do not modify product in any way and do not operate product modified any way. Warranty is void when product was disassembled or modified in any way.  Product is not fused; ensure it is installed in fused electric installation only.

  • Page 36: Ordering And Accessories

    ©2015 IQtronic technologies Europe s.r.o. 8 Ordering and accessories IQsocket product family uses following ordering code system: IQTS-IP200-X Example: IQTS-IP200-F Electric standard of plug/socket: F=Schuko , E=French, G=British B=USA, I-Australia/New Zealand, J-Switzerland, L-Italy, A-Japan, North America. Type B - USA 15Amps Japan, Canada, USA, Cuba, Mexico, Venezuela, Thailand, Taiwan and others.
