Magellan DCTXP2, DCTXP2-TI07 - Wireless 2-Zone Door Contact Manual

Introduction

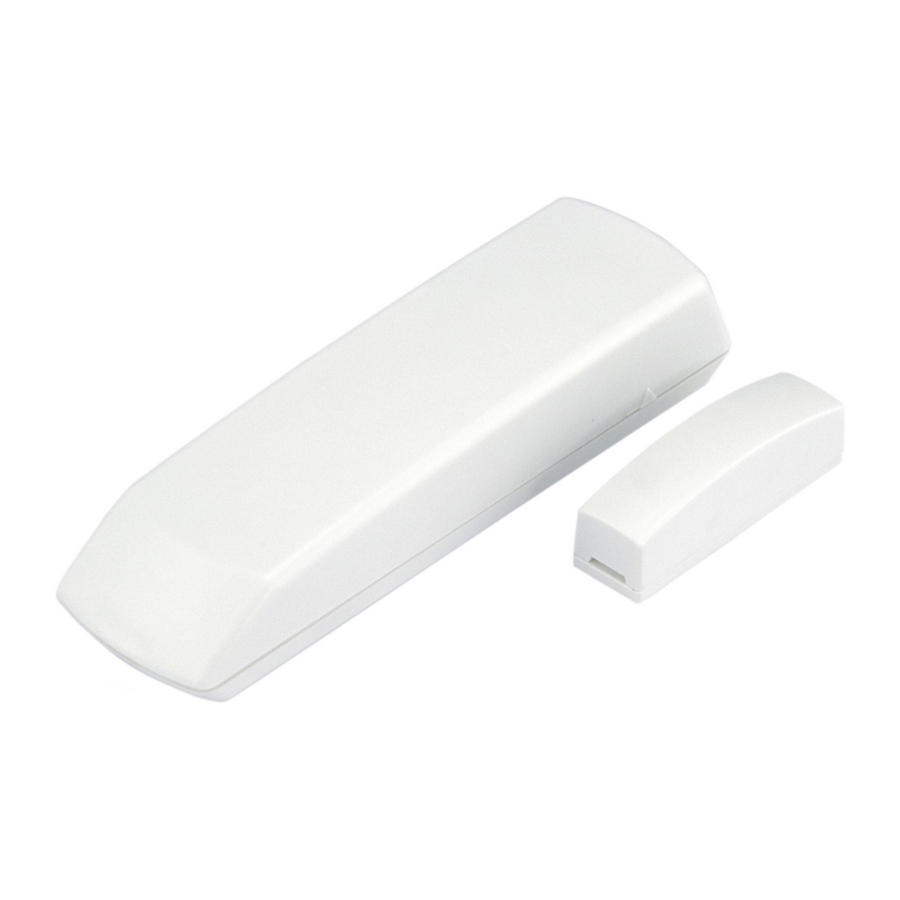

The DCTXP2 can support two inputs simultaneously (reed switch & universal input). It transmits two different serial numbers (SN), one for each input, which are always SN and SN+1 (e.g. 240 000 & 240 001). A switch or other security device can be connected to the universal transmitter input terminals to provide wireless transmission of the device's open/ closed status.

Location & Mounting

There should be at least 30cm (1ft) between each transmitter and 1.5m (5ft) between the transmitters and the receiver.

Testing the Unit

1. Perform a signal strength test before finalizing installation. If the transmission is weak, relocate the transmitter by a few inches to improve reception.
2. Verify that the batteries are inserted properly.
3. Assign the door contact to a Magellan receiver.
4. Open and close the assigned door/ window to verify proper operation.

- Do not cut, bend or alter the antenna. Avoid mounting the door contact near or on metal as this may affect transmission.

1. Learn Mode
   Learn Mode allows you to transmit the serial numbers of each input. To enter Learn Mode, open the cover and wait until the LED stops flashing.
   Anti-Tamper Switch	Serial Number	Visual Confirmation
   Press and release the anti-tamper switch once.	SN = Reed switch (e.g. 240 000)	The LED will flash once four times.
   Press and release the anti-tamper switch twice within one second.	SN+1 = Universal transmitter input (e.g. 240 001)	The LED will flash twice rapidly four times.

2. Powering the Unit
   Verify proper polarity and insert two alkaline "AAA" batteries. After inserting batteries, a power up sequence will begin (10-20 seconds) during which the door contact will not detect an open zone or tamper.
   Low Battery
   The door contact performs a battery test every 12 hours. If the voltage is below 2.3V after four consecutive battery tests (48 hrs.), the red LED will flash at 5 second intervals and the DCTXP2 will transmit a low battery signal.
   Replacing the Batteries
   To replace batteries:

   1. Remove the old batteries.
   2. Press and release the anti-tamper switch several times.
   3. Wait 60 seconds to reinitialize the unit.

Technical Specifications
Reed switch w/magnet	One (high sensitivity) with a standard gap of 1cm (0.4") from magnet
Input Response Time	45 ms
RF frequency	433MHz or 868MHz
Power	3.0Vdc (Two "AAA" Alkaline batteries)*
Battery life	Up to three years**
Range (typical in a residential environment)	MG/SP Series, RTX3, and RCV3: 60m (200ft) Magellan Console: 30m (100ft) Spectra 1759MG: 45m (150ft)
Anti-tamper switch	Yes
Compatibility	MG5000/MG5050, Any Spectra SP Series panel, MG6130/MG6160, RTX3, MG-6030/MG-6060, Spectra 1759MG, and RCV3
Dimensions	11cm X 3.2cm X 2.5cm (4.4in X 1.3in X 1.0in)
Operating temperature	0°C to 49°C (32°F to 120°F)
Approvals† 433MHz 868MHz

Specifications may change without prior notice.

^† Approvals pending. For the latest information on product approvals visit our website at www.paradox.com.
* The warranty does not apply to the batteries provided with the unit.
** Battery life depends on the traffic through the protected zone.
Changes or modifications on equipment not expressly approved by the Paradox Ltd. could void the user's authority to operate the equipment.
Mage lan is a trademark or registered trademark of Paradox Ltd. and its affiliates in Canada, the United States and other countries. A l rights reserved. Specifications may change without prior notice. One or more of the fo lowing patents may apply: 7046142, 6215399, 6111256, 6104319, 5920259, 5886632, 5721542, 5287111, and RE39406. Canadian and international patents may also apply. © 2013 Paradox Ltd. FCC ID: KDYMGDCTXP

This device complies with part 15 of the FCC rules. Operation is subject to the fo lowing conditions:

1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warranty: For complete warranty information on this product please refer to the MG-6060/MG-6030 reference manuals, together with the Limited Warranty Statement found on the website www.paradox.com/terms. Your use of the Paradox product signifies your acceptance of a l warranty terms and conditions.
