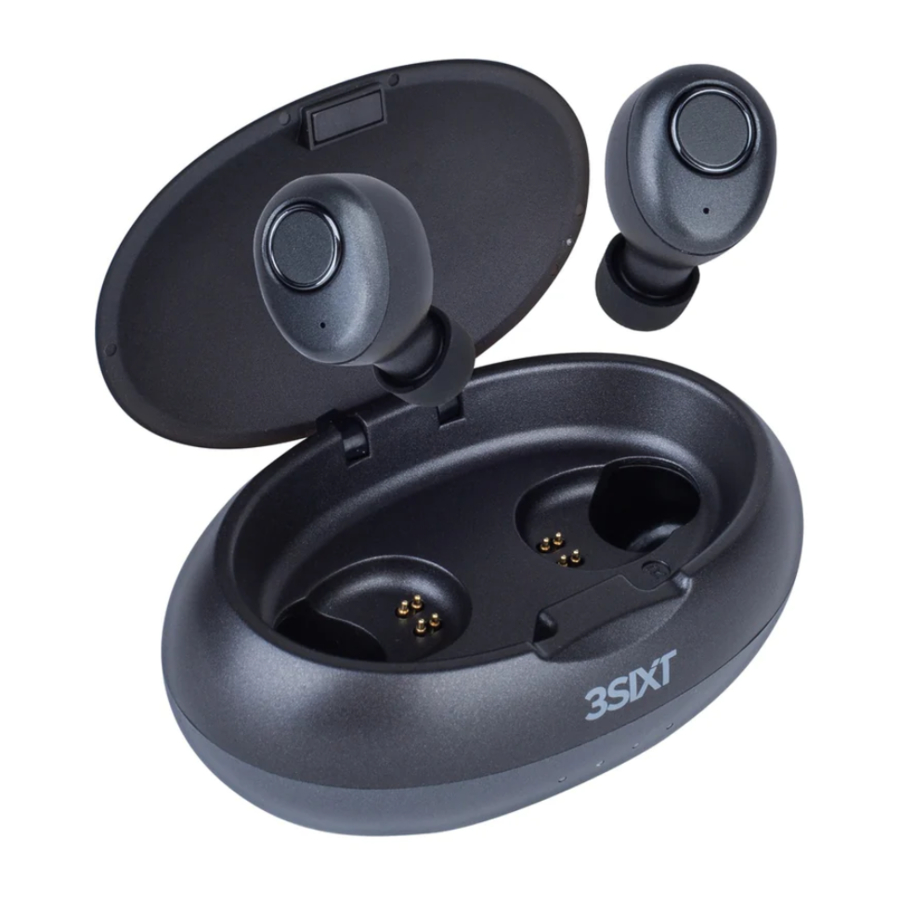

3SIXT 3S-1191 - Fusion Studio True Wireless Earbuds Quick Start

Also See for Fusion Studio:

User manual (19 pages)

Table of Contents

Contents

1 INCLUSIONS
2 WARNINGS
3 NAME PARTS
4 OPERATION
5 SPECIFICATIONS
6 Documents / Resources
- 6.1 References
- 6.2 Download manual

3SIXT 3S-1191 - Fusion Studio True Wireless Earbuds Quick Start

INCLUSIONS

2× True Wireless Earbuds

Wireless Induction Charging Case

USB-A to Micro USB Cable

3× Pairs of assorted sized Earbud tips

Conditions of Use

WARNINGS

Read all instructions and warnings before using this product. Improper use of this product may result in product damage, excessive heat, toxic fumes, fire or explosion, for which damages you ("Purchaser") and not 3SIXT ("Manufacturer") are responsible.
Do not store the accessory in a high-temperature environment, including heat caused by intense sunlight or other forms of heat (heaters etc.).
Do not place the device in fire or other extremely hot environments.
Do not disassemble or modify this accessory in any manner.
Do not attempt to power this device using any other method than as instructed explicitly in this user guide.
Use caution and follow applicable laws regarding mobile
phones and the 3SIXT Fusion Studio True Wireless Earbuds
use, if using the device for phone calls while driving.
Be aware of your surrounds while using your 3SIXT Fusion Studio True Wireless Earbuds, not doing so could lead to damage to property, others of yourself.
Do not use the 3SIXT Fusion Studio True Wireless Earbuds at high volume for an extended period. Use your earbuds at a comfortable, moderate volume level to avoid potential hearing damage. Turn the volume down on your device before placing the earbuds into your ears, then turn the volume up gradually until you reach a comfortable listening level.
This accessory is intended for adults, not minors or pets. 3SIXT Fusion Studio True Wireless Earbuds contain a lithiumion battery and may be hazardous if swallowed. If ingested, seek immediate medical attention by calling your relevant emergency service.
Do not submerge or expose the earbuds to water.

NAME PARTS

Charging Case
TWS Earbud
Charging Port
Wireless Induction Charging Base
Built-in Mic
LED Light Indicators
LED Ring Indicator
Left Power On/Off/Pair/ Skip/Pause/Volume/Voice Assistant
Right Power On/Off/Pair/ Skip/Pause/Volume/Voice Assistant

OPERATION

Turning ON the device

Remove the 3SIXT Fusion Studio True Wireless Earbuds from the charging case ().
Push and hold down the on/off buttons ( & ) simultaneously for 2 seconds.
An audio confirmation via the earbuds will play when the 3SIXT Fusion Studio True Wireless Earbuds are turned on.

Turning OFF the device
Push and hold down the on/ off buttons ( & ) for 4 seconds simultaneously on your 3SIXT Fusion Studio True Wireless Earbuds.

New Device Pairing

If not already paired to a device, the 3SIXT Fusion Studio True Wireless Earbuds automatically set themselves into pairing mode.
Within your device's Bluetooth settings, enable Bluetooth and look for the device name, '3SIXT Fusion TWS Earbuds'.
If prompted to enter a code use, '0000' and accept the 3SIXT Fusion Studio True Wireless Earbuds/device access approval notification.
In the event of a successful pairing, an audio confirmation via the earbuds will play.

Understanding the LEDs
Each Earbud has an LED Ring

Earbud Status
Pairing mode	Blue/White LED flashing
Connecting Mode	Blue LED flashing (every 7 sec)
Turning OFF	White LED flashes once then turns off
Earbuds Charging	White LED solid when inserted into charging case

Charging the Case
When the earbuds are inserted, magnets guide them into place and automatically trigger charging.

Charging the Case

Charging Case Status
LED light flashing × 1	1% - 25% battery
LED light flashing x 2	25% - 50% battery
LED light flashing x 3	50% - 75% battery
LED light flashing x 4	75% - 100% battery
LED light solid	Battery Charged 100%

SPECIFICATIONS

Power input	Micro USB 5 V 1.0 A \| Wireless 5 W
Ingress Rating	IPX4 Splash Proof (Earbuds only)
Battery	Charge Case: Polymer Lithium 3.7 V/500 mAh Earbuds: 50 mAh
Wireless Protocol	BT v5.0
Distance	Up to 10 m
Audio Output	5 mW
Unit	10 mm × 2
Playback Time	Play: 6 hours \| Talk: 7 hours
Standby Time	180 hours
Charge Time	Charge Case: 1-2 hours Earbuds: 45-60 mins *The earbuds and charging case battery can be recharged more than 500 times; after that time the battery will only charge around 70% of initial capacity.
Earbuds charging in Charge Case	3-4 times (4th time only 60-70% battery charge)
Frequency Range	20 Hz-20 KHz
DistortionTHD	~1%
Operating Temperature	-10°C - 55°C / Humidity: 0% - 85%
Storage Temperature	-20°C - 60°C / Humidity: 0% - 90%
Microphone / Speaker	Built-In
Dimensions	Charge Case: 105 × 47 × 30 mm
Weight	2 × Earbuds: 15.6 g \| Charge Case: 33 g Total: 48.6 g
