ESL WIRELESS KIT
EXPANSION PACK
To utilise this instruction sheet, some extra part may be required, that are not
supplied with the kit.
Read through the paperwork to see what parts you will need.
The extra parts are:
1 to 2 x SWAN QUAD (PIR's) ....................................................................
1 to 2 x VST-LS881AH
1 to 14 x DFW-915 (Supervised Wireless PIR's).........................................
1 to 14 x VST-FW-915 (Supervised Wireless Smoke Detector).................
1 to 72 x Radio Pendants:
RM-8006B
RM-8003B
1 x SS-SOLARBELL-AAP (WIRELESS SOLAR POWERED SATELLITE)......
1 x SS-1C (Wired external siren).................................................................
Please use these part numbers when ordering extra parts for your Kit.
The extra 4K7 and 8K2 Resistors inside this envelope are
(auto resting Smoke Detector)........................
(make sure your remote match the Receiver Frequency)
(4 button, 915 Mhz with sliding cover)
(4 button, 915 Mhz)
not needed for the supplied instructions.

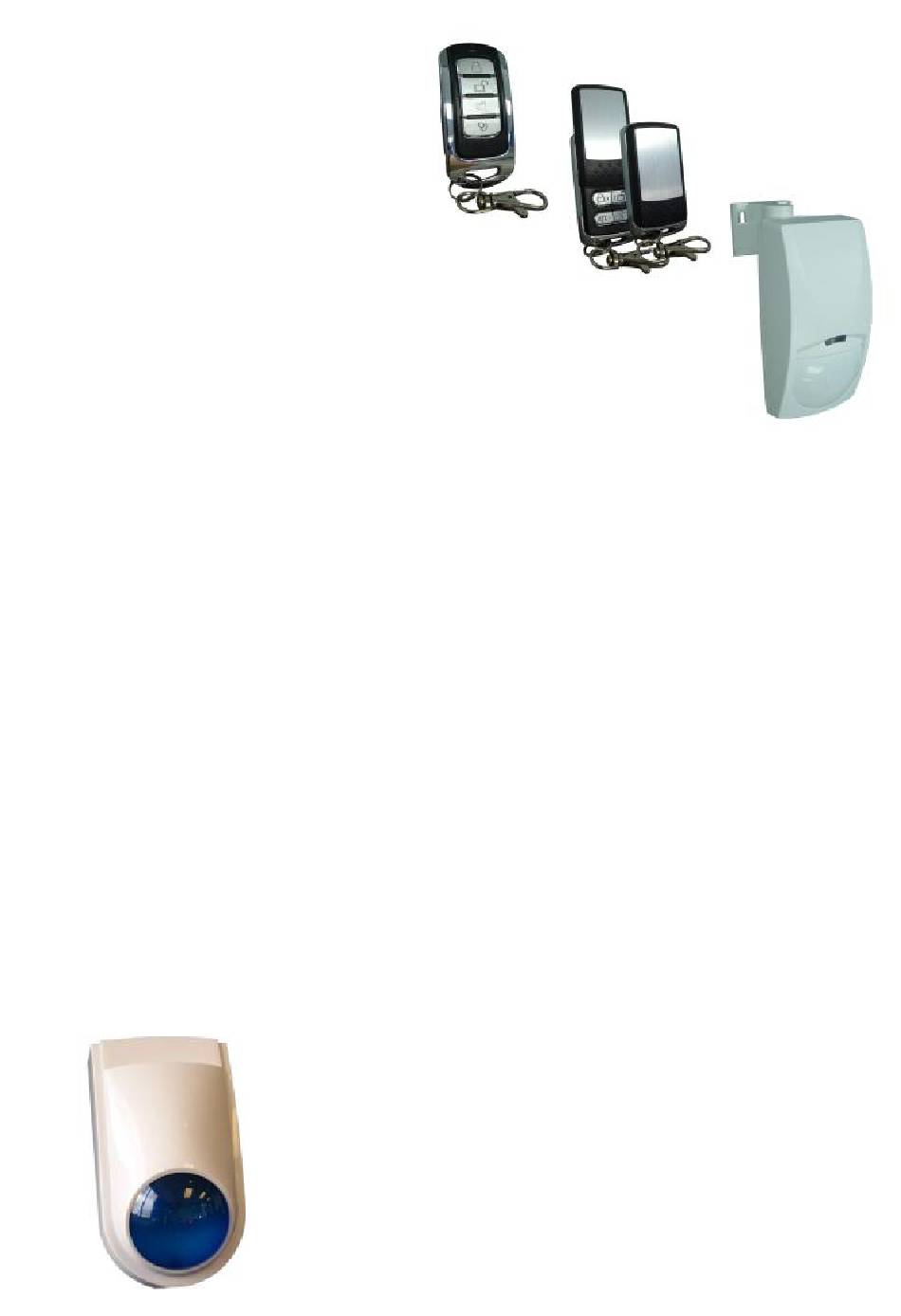

SS1-C
RM-8003B
RM-8006B
DFW-915
page 1
page 1
page 2
page 2
.........
page 3
page 4
page 4
REV 1.14 OP
Advertisement
Table of Contents
Related Manuals for Arrowhead Alarm Products RM-8003B
Summary of Contents for Arrowhead Alarm Products RM-8003B
- Page 1 ESL WIRELESS KIT RM-8003B EXPANSION PACK RM-8006B DFW-915 To utilise this instruction sheet, some extra part may be required, that are not supplied with the kit. Read through the paperwork to see what parts you will need. The extra parts are: 1 to 2 x SWAN QUAD (PIR’s) …………………………………………………..….…..
- Page 2 Adding Hard Wired Zones: - SWAN QUAD or VST-LS881AH Note. This expansion pack comes with extra Resistors (4K7 and 8K2) they are not needed for any of the wire diagrams shown in this paperwork. The only resistors you will need are 2K2’s. Gnd 12V Gnd 12V Tmp Gnd...
- Page 3 Adding Radio Zones: - DFW-915 Remember only 1 Detector can occupy 1 Zone, this also includes Hard wired Devices. If a new device is loaded, in on an already used zone, the old device will be wiped and replace with the new one. The 2 supply PIR’s are loaded into zones 1 and 2.
- Page 4 Adding More Radio Pendants: – RM-8006B Don’t use slots 21 to 28, as they are already in use by the 2 supplied Pendants. Adding Radio users The panel has the ability to have up to 80 radio users. Radio users are loaded under address 18, slots 21 to 100. Radio Users share user slots with standard pin code users, you can have a maximum of 100 users combined.
- Page 5 Adding a Wireless External Siren: - SS-SOLARBELL-AAP You will not need to learn the Transmitter into the SS-Solarbell, as they come pre-programmed out of the box. Gnd 12V Gnd 12V Tmp Gnd Outputs JUMPERS MUST BE IN THESE POSITIONS Adding a Wired External Siren: - SS-1C Gnd 12V Gnd 12V...
