UPLIFT ACC096 Quick Start Manual

Clamp-on microphone arm

Advertisement

Quick Links

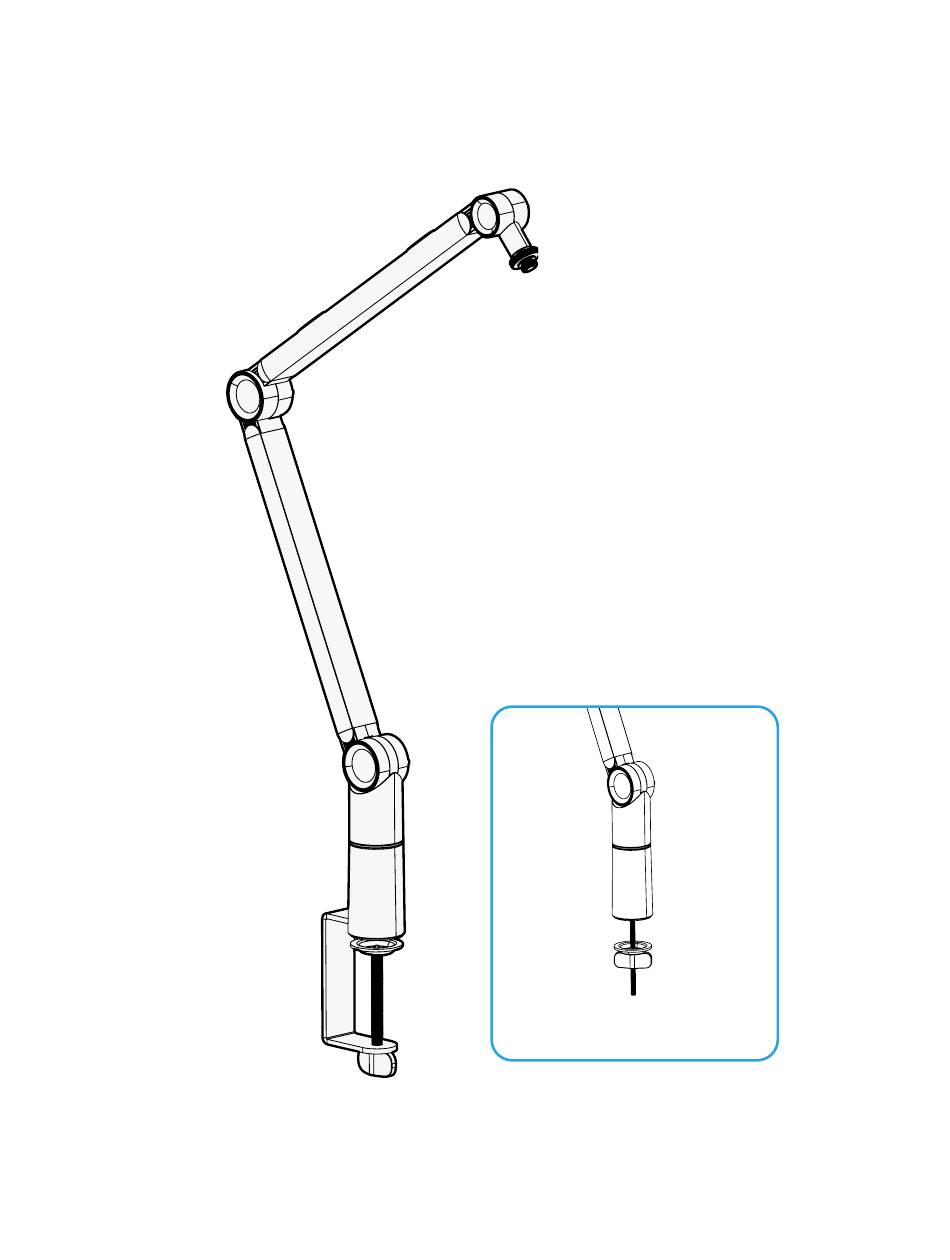

Clamp-On Microphone Arm
ACC096
Bolt-Through Mount
For assembly assistance,
visit upliftdesk.com/contact,
or call 800-349-3839,
or email info@upliftdesk.com
©2022 UPLIFT Desk®. All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC096 and is the answer not in the manual?

Questions and answers

Summary of Contents for UPLIFT ACC096

  • Page 1 Clamp-On Microphone Arm ACC096 Bolt-Through Mount For assembly assistance, visit upliftdesk.com/contact, or call 800-349-3839, or email info@upliftdesk.com ©2022 UPLIFT Desk®. All Rights Reserved...
  • Page 2 Safety and Warnings CAUTION: Read all instructions before assembly. Failure to assemble or operate properly may result in damage or personal injury. Retain manual for future reference. CAUTION: The linkage and spring are internal. Disassembly can lead to damage and can cause serious injuries.
  • Page 3 A. Fit the Clamp Base Assembly onto the edge of the desk. B. Using the wing nut, tighten the Clamp Screw until the Bottom Plate clamps firmly against the bottom of the  desktop. C. Skip the Bolt-Through Method steps and proceed with Step 3. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 4 Step 2B - Bolt-Through Method Bolt-Through Hole Fit A. The desktop must be between 0.4” and 1.9”  thick and have a hole between 0.4” and  1.75” in diameter to use this option. Using  a grommet hole already in your desktop .4” 1.75” is acceptable, or drill a hole anywhere on the desktop, taking care to avoid frame hardware underneath. Round Clamp Assembly Removal Base B.
  • Page 5 Otherwise, skip to Step 6. Knurled Lock Nut A. If not already installed, thread the Knurled Lock Nut all the way onto the ⅜” threaded stem at the end of  the Microphone Arm until it stops. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 6 B. Thread the Ball Joint Adapter onto the ⅜” threaded  stem at the end of the Microphone Arm until there is a gap of approximately 1/16” between the Knurled  Lock Nut and the Ball Joint Adapter. Ball Joint Adapter C. Adjust the Knurled Lock Nut so it is tight against the Ball Joint Adapter to keep it from moving. D.
  • Page 7 F. Ensure the microphone controls are facing the way you prefer them for access and turn the Knurled Lock Nut so it is tight against the microphone, locking it in place. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
  • Page 8 © Copyright Notice: This guide is a component of this UPLIFT Desk product. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com. These specifications are subject to United States copyright law.
