UPLIFT ACOUSTICS ACU015 Quick Start Manual

Freestanding Acoustic Privacy Panel Holder
ACU015

Package Contents

Base
Base pad Lower post
(qty 4)
40'' panel 52'' panel
© UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com
Side cap Top cap
(qty 2) (qty 1)
Upper post Crossbar
64'' panel 72'' panel
M5x8 Flathead screw
M5x40 Long screw
M5x8 Buttonhead screw
M5 Washer
M5 Nut
Allen wrench
Flat wrench

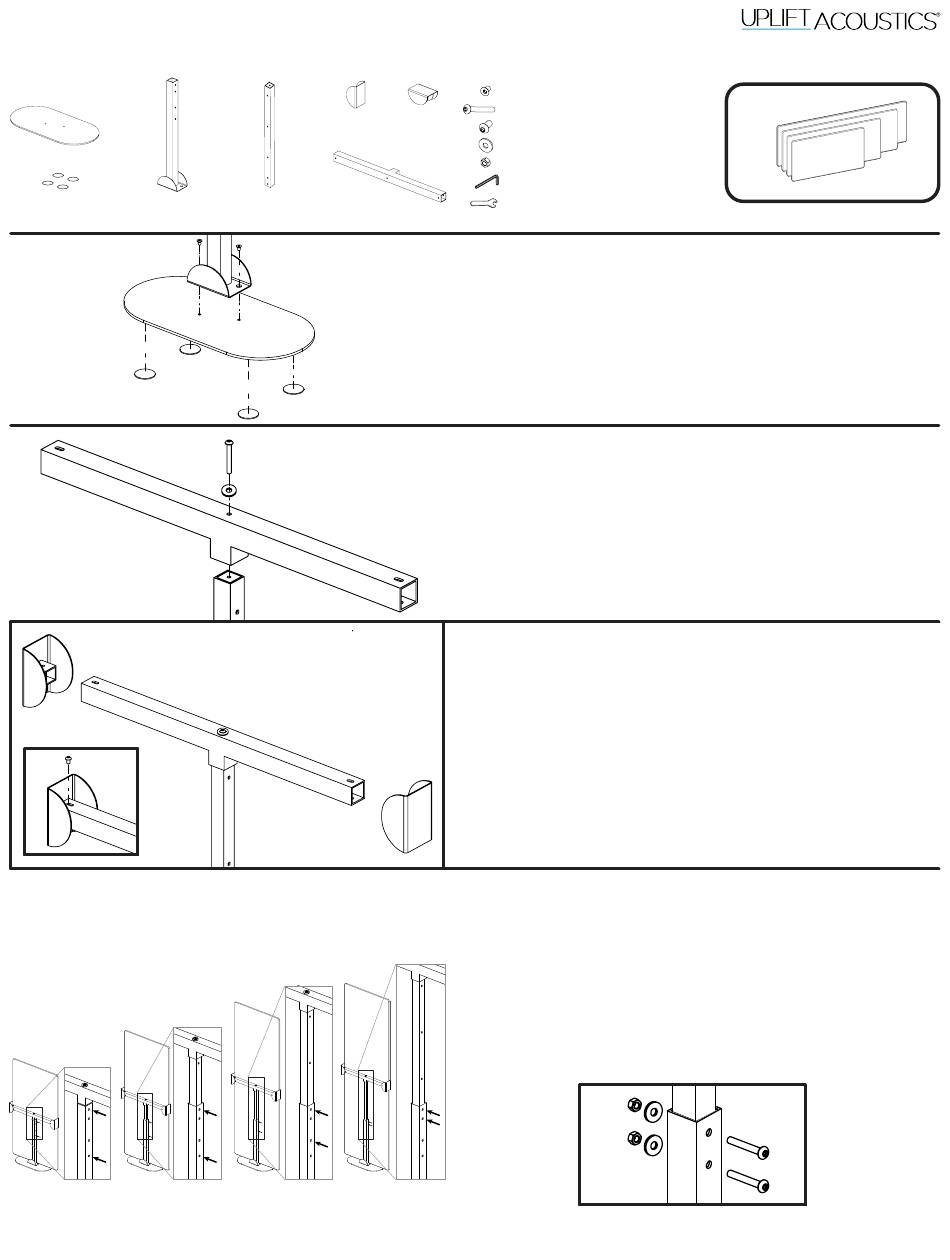

Step 1

Line up the holes of the Lower post with the holes on the base.
If they don't line up, flip the Base over. Connect the two parts
together with two M5x8 Flathead screws.
Then apply the four Base pads to the bottom side of the Base.

Step 2

Fit the Crossbar onto the Upper post. Make sure each arm from
the Crossbar extends over the sides of the post that has the
holes. Connect the two parts together through the top of the
Crossbar using a M5x40 Long screw and a M5 Washer.

Step 3

Fit the Side caps onto each end of the Crossbar and attach us-
ing one M5x8 Buttonhead screw each.
Note: leave these screws slightly loose until Step 5

Step 4

Follow the diagrams at the left to set the height of the frame
for the panel size.
Once the holes are aligned, insert two M5x40 Long screws
through both posts where indicated by the arrows. On the oth-
er side of the post, install an M5 Washer and an M5 Nut on the
other end of each screw. Hold the Nuts in place with the Flat
wrench and tighten the Long screws using the Allen wrench
until the upper post is secure.
(qty 2)
To be used with -
(qty 3)
(qty 2)
(qty 3)
(qty 2)
Acoustic Privacy Panels (40''-72'')
