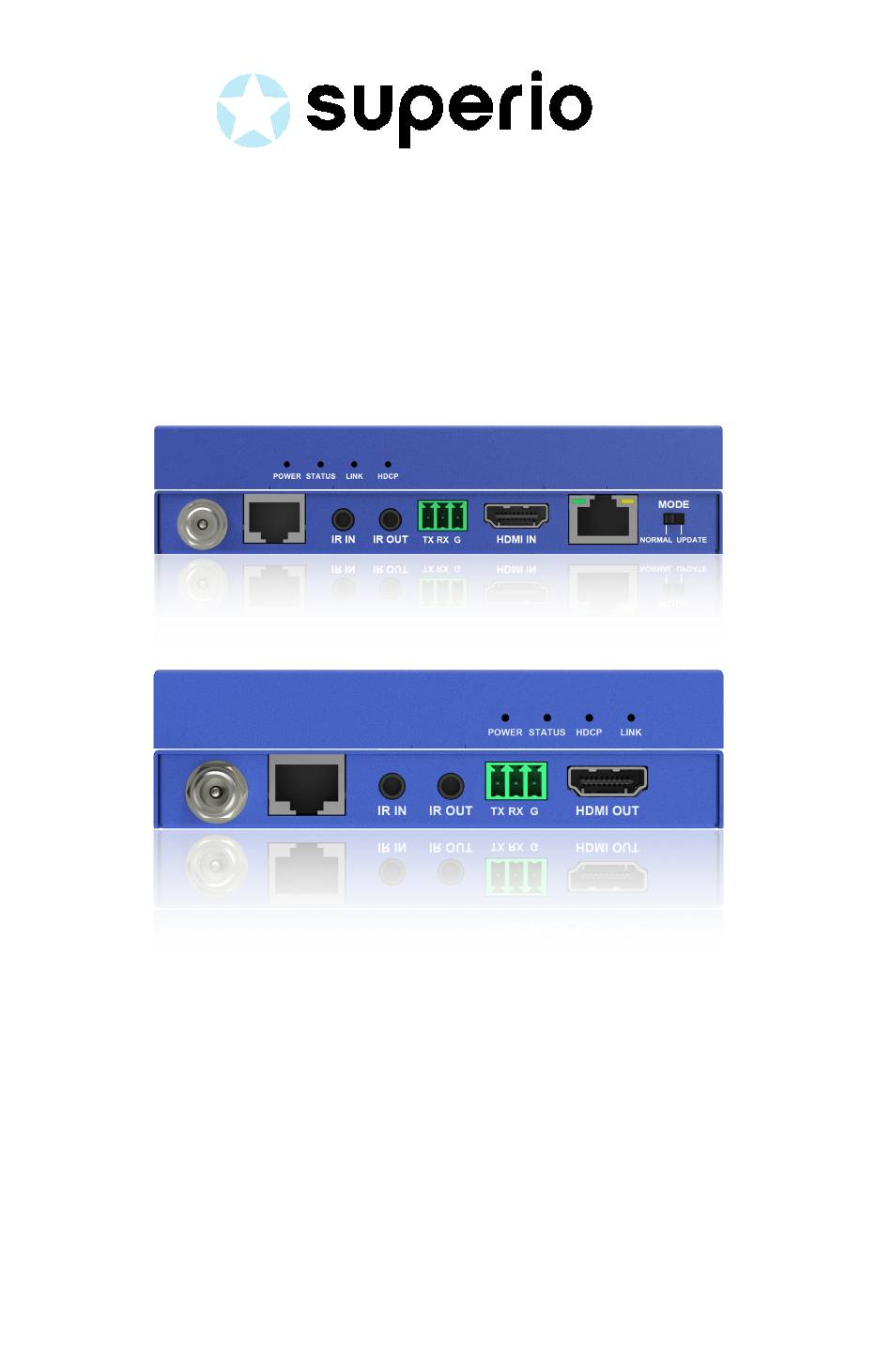

- Page 1 4K/60Hz Super Slim HDBaseT Extender Kit SUP-BB-HDBT70-KIT USER MANUAL...
-
Page 2: Important Safety Information
Important Safety Information Read, follow, and keep these instructions. Heed all warnings. Do not use this product near water. Keep away from wet places, such as: spas, pools, sinks, laundries, wet basements, etc. When cleaning, unplug the unit and wipe with a dry cloth. Do not use damp cloths, cleaning fluids, or aerosols which may result in electric shock, fire, or unit damage. -
Page 3: Table Of Contents
Contents Important Safety Information ................1 Introduction ...................... 3 Features ....................3 Package Contents ..................3 Panel Description ..................... 4 Transmitter ....................4 Receiver ....................5 Specifications ....................6 Installation and Wiring ..................7 Installation....................7 Wiring ....................... 7 RS232 Operation ................... 10... -
Page 4: Introduction
Introduction SUP-BB-HDBT70-KIT is a slim transmitter receiver pair, which can extend HDMI 1080P@60Hz signals up to 70m/230ft and 4K@60Hz (chroma sub-sampling 4:2:0 8-bit only) signals up to 40m/130ft via a single Cat 6a/7 cable. SUP-BB-HDBT70-KIT features bi-directional PoC. It also supports bi-directional IR and RS232 pass-through. -
Page 5: Panel Description
Panel Description Transmitter Front Panel Name Description On: The device is powered on. • POWER LED Off: The device is powered off. • On: The device is working properly. • STATUS LED • Off: The device is not working properly. •... -
Page 6: Receiver
Receiver Front Panel Name Description • On: The device is powered on. POWER LED • Off: The device is powered off. • On: The device is working properly. STATUS LED • Off: The device is not working properly. • On: HDCP protected content is being transmitted. •... -
Page 7: Specifications
Specifications Technical Transmitter: 1 x HDMI IN; 1 x HDBT OUT; 1 x RS232; 1 x DC 18V IN Input/Output Port Receiver: 1 x HDMI OUT; 1 x HDBT IN; 1 x RS232; 1 x DC 18V IN Input/Output Signal Type HDMI with 4K@60Hz 4:2:0, HDCP 2.2 Up to 4096x2160@60Hz, including Input/Output Resolution... -
Page 8: Installation And Wiring
Installation and Wiring Installation CAUTION: Before installation, please ensure the device is disconnected from the power source. Steps to install the switcher on a suitable location: Attach the installation bracket to the enclosure using the screws provided in the package separately. The bracket is attached to the enclosure as shown. - Page 9 Connect HDMI OUT Connect an HDMI display device (such as TV, projector, LED/LCD display) to the HDMI OUT port of receiver. Connect HDBT OUT Connect HDBT OUT of the transmitter to HDBT IN of the receiver with a Cat 5e/6/7 cable. Connect for additional control options: •...
- Page 10 Display Remote Blu-ray Player HDMI IN IR Emitter1 IR Receiver2 Transmitter Cat x Receiver IR Receiver1 HDMI OUT IR Emitter2 Display Source Remote...
-
Page 11: Rs232 Operation
RS232 Operation RS232 ports can be used for bi-directional RS232 signal pass-through between the transmitter and receiver. RS232 Device Transmitter RS232 Port Connected RS232 Device Pins Cat x Receiver RS232 Device... - Page 12 SWEDEN Version: V1.0.1...
