Summary of Contents for Superio HDR-BOOST

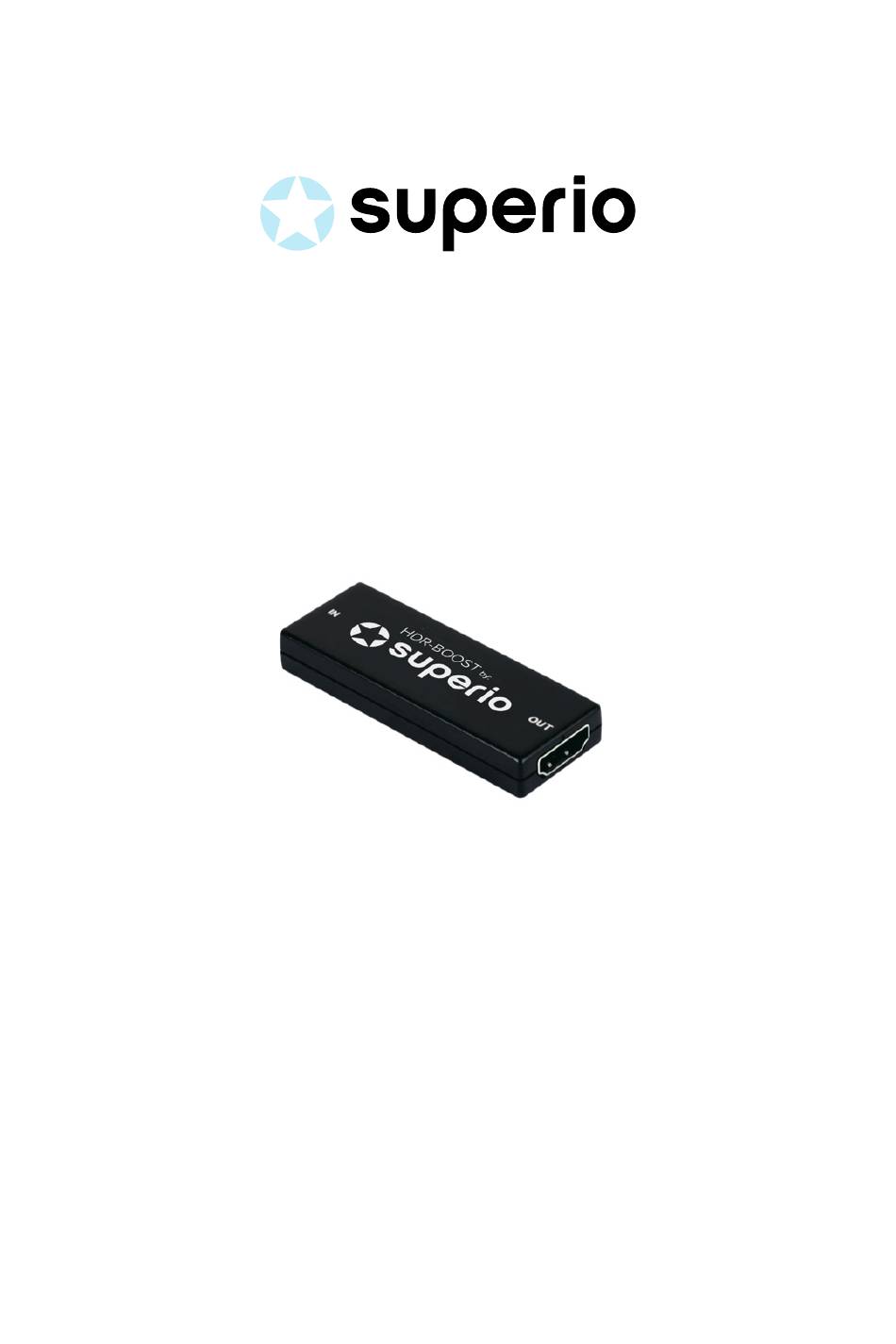

- Page 1 HDR-BOOST 4K/60Hz 4:4:4 HDR UHD+ HDMI Enhancer with 5V Power Injection...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Superio assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Superio assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ............5 2. Applications ............5 3. Package Contents ..........5 4. System Requirements .......... 5 5. Features ..............6 6. Operation Controls And Functions ..... 7 6.1 Front Panel............7 6.2 Side Panel ............7 7. Connection Diagram ........... 8 8. -
Page 5: Introduction
1. INTRODUCTION This 4K UHD HDMI to HDMI Enhancer with 5V Power Injection is an advanced solution for HDMI signal extension and cascading. This unit is designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission over long distances using multiple HDMI cables without the need for external power. -
Page 6: Features
5. FEATURES • HDMI input and output supports 18Gbps 4K UHD with HDR signals • HDCP 1.x and 2.2 compliant • Supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit) • Supports 12-bit Deep Color up to 1080p@60Hz • Supports pass-through of audio formats including LPCM (Up to 8 channels), Bitstream, and HD Bitstream •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel (1) HDMI IN Port: Connect to HDMI source equipment such as a media player, game console, or set-top box. Note: This unit is directly powered by the 5V included with standard HDMI signals. In some rare cases, an HDMI source may not provide enough power. -
Page 8: Connection Diagram
7. CONNECTION DIAGRAM... -
Page 9: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps Input Ports 1×HDMI (Type-A) Output Ports 1×HDMI (Type-A) Voltage Injection Port 1×USB 2.0 (Micro-B) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 65mm×10mm×24mm [All Inclusive] Weight Chassis Material Plastic Chassis Color Black Operating Temperature... -
Page 10: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 1024×768p@60/70/75/85 1152×864p@75 1280×720p@50/60 ... - Page 11 Input Output Supported Resolutions (Hz) HDMI HDMI 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) 3840×2160p@24, HDR10 3840×2160p@50/60 (4:2:0), HDR10 ...
-
Page 12: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition 8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Audio Return Channel Audio/Video Audio/Video Receiver or Recorder Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television LPCM Linear Pulse-Code Modulation Personal Computer... - Page 14 We Are Superio AB www.superio.com Sweden...
