ARCHIPELAGO LIGHTING planoARCH LBLP quinceARCH Installation Manual

Ⓐ
LBLP | quince RCH
- Please read the product specification carefully first to confirm
that the working environment is in line with the condition on the
specification before it is used.
- Please confirm the input voltage and frequency before use.
- The light must be installed by professional personnel
- If the power cord and case of the products are damaged, it will be
regarded as disqualified product and should not be used.
- If the external soft cable or wire of the product is damaged, the
wire should be replaced by the manufacturer or service agent or,
personnel with similar qualifications to avoid danger.

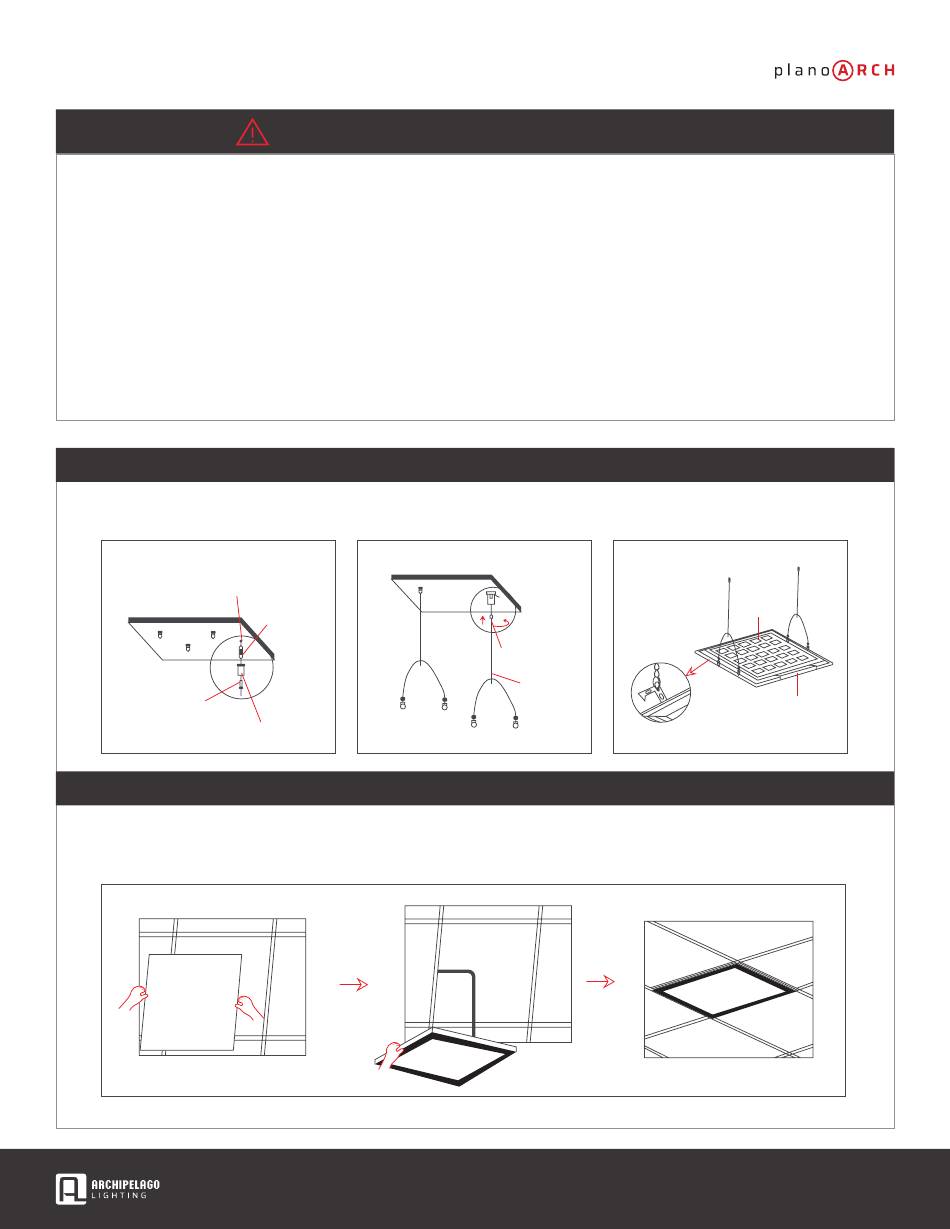

1. Fix the suspension wire fixer
on the ceiling
Drill a hole with 6mm
diameter drill bit
Ceiling
Fix screw
Suspension wire fixer
1. Cut off the power supply before installation.
2. Ensure that the installed object can bear
the fixture weight.
| Headquarters: 4615 State Street, Montclair, CA 91763
| Production Center: 7345 Sycamore Canyon Blvd, Riverside, CA 92508
- Installation Guide
Please read all the instructions before attempting installation

Suspended Installation

2. Fix the suspension wire on the ceiling
Inflatable Colloidal
particle

Lay-in Installation

3. Open the groove on the ceiling according
to corresponding size. Then install the lamp
into the clamping groove on the ceiling.
- This luminaire is designed to operate in ambient temperatures ranging
from -10°F to 125°F and to be horizontally mounted facing down.
- This product must be installed in accordance with the applicable
installation code by a person familiar with the construction and operation
of the product and the hazards involved.
- This product is not available for several special environments, such as
places with corrosive gas liquids or high pressure water vapor.
- CONSULT A QUALIFIED ELECTRICIAN TO ENSURE THE CORRECT
BRANCH CIRCUIT CONDUCTOR
- CAUTION - RISK OF FIRE
3. Connect LED panel light by the
hook of suspension wire
Rotary fixing
Adjust the length
of suspension wire
Suspension
wire
4. Then connect wire attached to the
light onto the corresponding power cord
and carry out insulation sealing at the joint.
LED panel
light
LED driver box
