- Page 1 ST-RoIP4-Kirisun User’s Guide Radio Over IP Network Gateway ST-RoIP4-Kirisun User’s Guide Copyright © Innotek Company Limited. All Right Reserved.
- Page 2 Thank you for purchasing ST-RoIP4 Radio-Over-IP Network Gateway. Please read this User’s Guide carefully before putting ST-RoIP4 into operation. Support for the ST-RoIP4 is available by email. Please direct all questions via email to support@solidtronic.com. Your question(s) will be answered promptly. Electrical shock hazard Never attempt to connect the unit to any power network other than one for which it was intended.
- Page 3 PoC platforms with any radio systems including conventional trunked analog FM, ETSI DMR, ETSI TETRA, APCO P25 FDMA, NXDN... The ST-RoIP4-Kirisun Standalone RoIP Gateway is equipped with the 4th generation Super Dynamic Intelligent Digital Tracking System(iDats-4), PoC-COS/ COR PTT Control Technology, Radio-COS/ COR PTT Control...

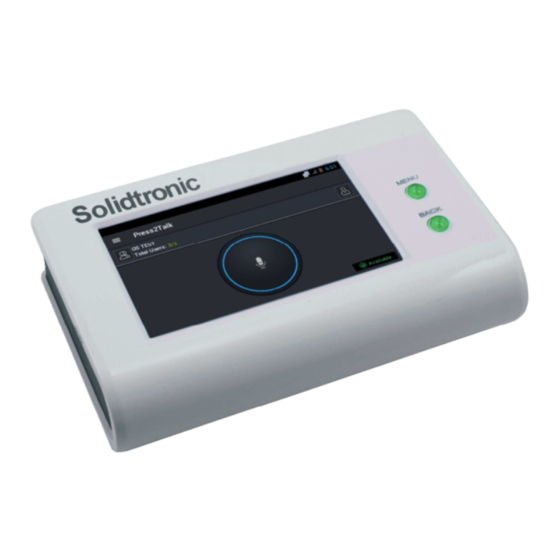

- Page 4 ST-RoIP4-Kirisun User’s Guide Product Descriptions Packing List ST-RoIP4-Kirisun Standalone RoIP Gateway x 1 Ethernet Connection Cable x 1 Radio Unit Connection Cable x 1 This User's Guide x 1 Major Operating Controls, Terminals and Their Functions 1. LCD This is a 4.3 inch touch screen LCD for displaying and on screen controlling the system.
- Page 5 ST-RoIP4-Kirisun User’s Guide 4. I/O Terminal This terminal is used to connect to a radio unit. 5. Mode Selection Switch DIP SW1 : Radio Unit PTT Control Mode Selection. OFF for PTT Mode 1. ON for PTT Mode 2. DIP SW2 : Digital Interoperability Stabilizer Selection. OFF for 1 Second. ON for 3 Seconds.
- Page 6 ST-RoIP4-Kirisun User’s Guide Installation Simple System Connection Diagrams Note: The connected Radio Units MUST be connected with external antennas and the minimum distance between the RoIP system equipments and the antennas are 3 meters to reduce the interference. The minimum distance between the RoIP system equipments and the user radio equipments are 1 meter to reduce the interference.
- Page 7 ST-RoIP4-Kirisun User’s Guide System Setup Connect the Radio Unit to an external antenna. Connect the ST-RoIP4 to a Radio Unit by using a right connection cable. Connect the ST-RoIP4 to an IP network by using an Ethernet cable. Turn on the Radio Unit and adjust its volume to approximate 1/3 position of maximum level.
- Page 8 Set both DIPSW1 & DIPSW2 to OFF position. Select a talk group. Use a smartphone Kirisun Press2Talk app to make a PTT call The ST-RoIP4-Kirisun is standing to the Kirisun Press2Talk group. by calls from other mobile phones, Keep the DIPSW1 at OFF(Disable) position or set it to ON 2-way radios from remote position(Enable).
