M-system R7D-DC16B Instruction Manual page 8

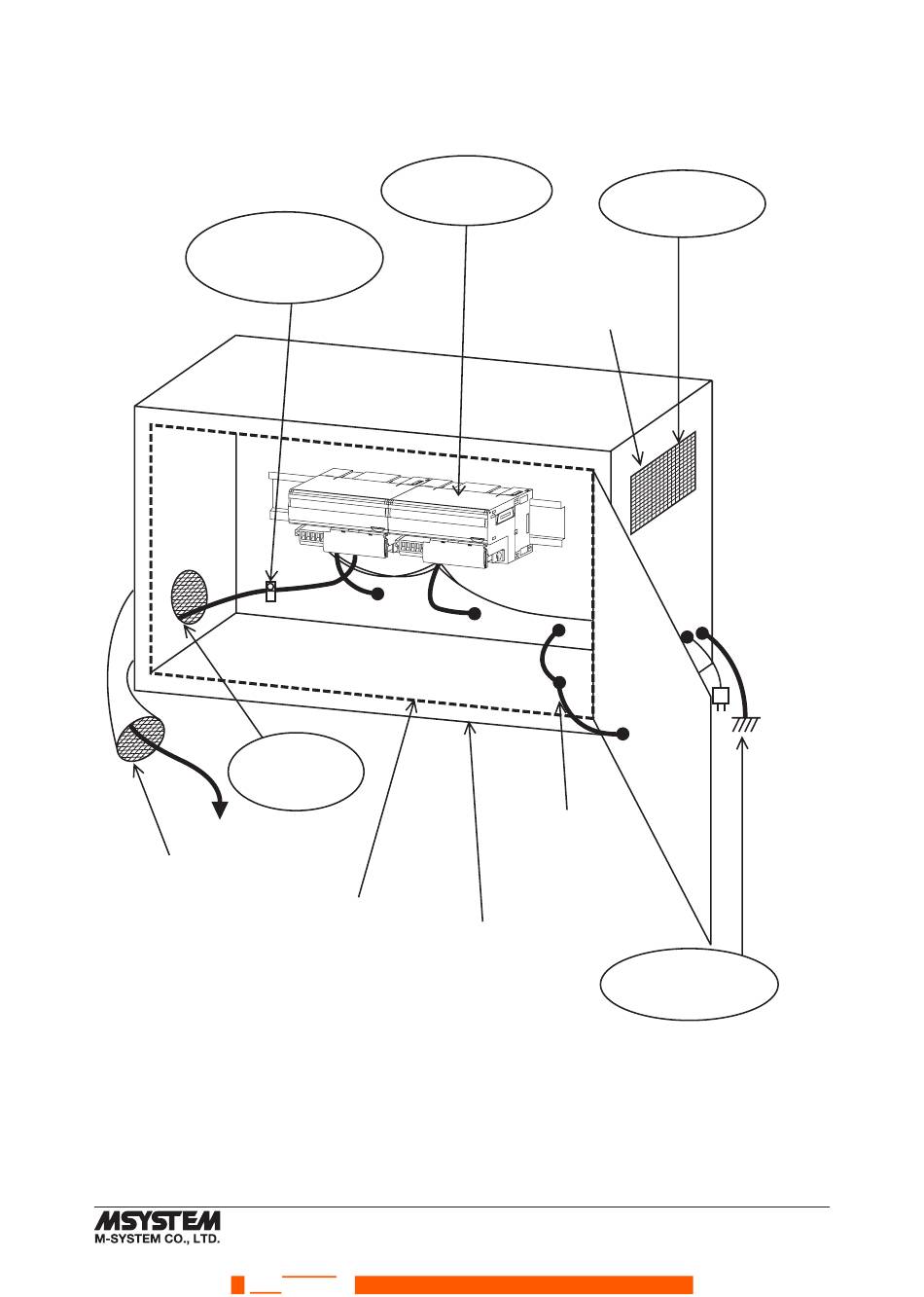

• Points of cautions applicable when installing the R7D Series
Attachment part of earth
clamp should be fixed with
screw in conduction with the
internal panel plate.
Keep the opening
for cabling as small as
possible.
To external apparatus
Use (e.g.) a shield cover
when noise leaks through
the opening.
SEN TRONIC
Install the R7D Series inside
a control panel.
Install an electromagnetically
shielded gasket when
noise leaks through
Shielding is strengthened
the opening.
by using an electro-
magnetically shielded
control panel.
056 222 38 18 mailbox@sentronic.com
AG
Keep the opening for
ventilation as small as
posible.
Attach an electro-
magnetically shielded
filter when noise leaks
through the opening.
By connecting the
internal panel plate
and the panel cover with
an earth strap, grounding
may be strengthened and
EMC may be improved.
Ground the control panel
at low impedance using
(e.g.) braided wires.
EM-7802-H Rev.5 P. 8 / 10
